Bentley S2 Continental C series coachbuilt – schema ir OEM kodai
Body · 134 pozicijos · 0 skelbimų

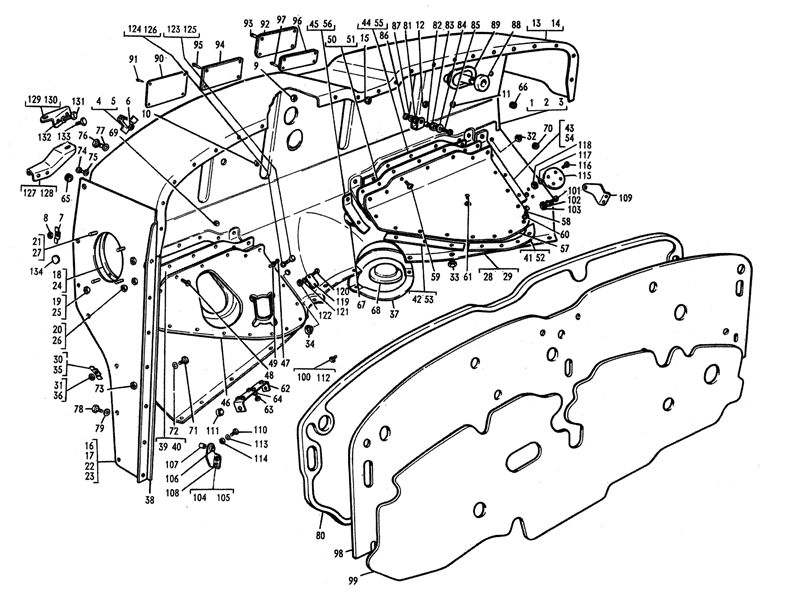

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 50 | ASSY BLANKING PLATE PEDAL GAP PLATE UR4355 | – | – | Ieškoti |
| 51 | ASSY BLANKING PLATE PEDAL GAP PLATE 373410 | – | – | Ieškoti |
| 104 | ASSY BRACKET CROSS SHAFT UR5131 | – | – | Ieškoti |
| 81 | ASSY BRACKET INNER PANEL DASH 373366 | – | – | Ieškoti |
| 4 | ASSY BRACKET SPEEDOMETER CABLE TO DASHBOARD UR2201 | – | – | Ieškoti |
| 1 | ASSY PANEL DASHBOARD UR4909 | – | – | Ieškoti |
| 2 | ASSY PANEL DASHBOARD CENTRE UR4906 | – | – | Ieškoti |
| 16 | ASSY PANEL DASHBOARD SIDE LH UR5173 | – | – | Ieškoti |
| 22 | ASSY PANEL DASHBOARD SIDE RH UR5174 | – | – | Ieškoti |
| 13 | ASSY PANEL DASHBOARD UPPER UR4908 | – | – | Ieškoti |
| 28 | ASSY PANEL TOEBOARD UR4212 | – | – | Ieškoti |
| 40 | ASSY PEDAL GAP PLATE UR5066 | – | – | Ieškoti |
| 39 | ASSY PEDAL GAP PLATE & SEALS UR5067 | – | – | Ieškoti |
| 24 | ASSY STIFFENING RING DASH SIDE PANEL 373154 | – | – | Ieškoti |
| 18 | ASSY STIFFENING RING DASH SIDE PANEL 373154 | – | – | Ieškoti |
| 109 | ASSY SUPPORT BRACKET ACCELERATOR CROSS SHAFT UR5126 | – | – | Ieškoti |
| 62 | ASSY SUPPORT BRACKET ACCELERATOR PEDAL UR4801 | – | – | Ieškoti |
| 127 | ASSY SUPPORT BRACKET BONNET LH UR5075 | – | – | Ieškoti |
| 128 | ASSY SUPPORT BRACKET BONNET RH UR5076 | – | – | Ieškoti |
| 67 | BLANKING BUNG FOOT SWITCH UR6065 | – | – | Ieškoti |
| 115 | BLANKING PLATE ACCELERATOR PEDAL TOEBOARD 173358 | – | – | Ieškoti |
| 119 | BLANKING PLATE PIVOT BRACKET 173356 | – | – | Ieškoti |
| 76 | BOLT .250 UNF X .375 IN. LONG UA101Z | – | – | Ieškoti |
| 131 | BOLT .250 UNF X .500 IN. LONG UA102Z | – | – | Ieškoti |
| 78 | BOLT .250 UNF X .625 IN. LONG UA103Z | – | – | Ieškoti |
| 123 | BOLT.3125 UNF X .500 IN. LONG UA151Z | – | – | Ieškoti |
| 125 | BOLT.3125 UNF X .500 IN. LONG UA151Z | – | – | Ieškoti |
| 105 | BRACKET ACCELERATOR CROSS SHAFT RH UR5130 | – | – | Ieškoti |
| 5 | BRACKET SPEEDOMETER CABLE TO DASHBOARD UR2200 | – | – | Ieškoti |
| 82 | BUSH UR651 | – | – | Ieškoti |
| 106 | BUSH CROSS SHAFT BRACKET UR5132 | – | – | Ieškoti |
| 94 | CHASSIS NAME PLATE (ROLLS-ROYCE) RF5216 | – | – | Ieškoti |
| 92 | CHASSIS NUMBER PLATE (BENTLEY) UR2531 | – | – | Ieškoti |
| 57 | FELT BLANKING PLATE PEDAL GAP PLATE UR4356 | – | – | Ieškoti |
| 38 | FELT PANEL DASH SIDE UR2770 | – | – | Ieškoti |
| 46 | FELT PEDAL GAP PLATE UR5068 | – | – | Ieškoti |
| 65 | GROMMET RD7476 | – | – | Ieškoti |
| 66 | GROMMET RF7127 | – | – | Ieškoti |
| 69 | GROMMET RF5032 | – | – | Ieškoti |
| 70 | GROMMET UR1495 | – | – | Ieškoti |
| 83 | GROMMET UR652 | – | – | Ieškoti |
| 89 | GROMMET UD1634 | – | – | Ieškoti |
| 134 | GROMMET UD2136 | – | – | Ieškoti |
| 6 | HANK RIVET BUSH 2BA FB3961 | – | – | Ieškoti |
| 26 | HANK RIVET BUSH 2BA FB3961 | – | – | Ieškoti |
| 20 | HANK RIVET BUSH 2BA FB3961 | – | – | Ieškoti |
| 10 | HANK RIVET BUSH 2BA FB3961 | – | – | Ieškoti |
| 32 | HANK RIVET BUSH 2BA FB3961 | – | – | Ieškoti |
| 11 | HANK RIVET BUSH 3BA FB4337 | – | – | Ieškoti |
| 12 | HANK RIVET BUSH 5BA FB4336 | – | – | Ieškoti |
| 19 | HANK RIVET NUT .250 UNF UR2755 | – | – | Ieškoti |
| 25 | HANK RIVET NUT .250 UNF UR2755 | – | – | Ieškoti |
| 33 | HANK RIVET NUT .250 UNF UR2755 | – | – | Ieškoti |
| 15 | HANK RIVET NUT .250 UNF UR2755 | – | – | Ieškoti |
| 9 | HANK RIVET NUT .250 UNF UR2755 | – | – | Ieškoti |
| 34 | HANK RIVET NUT .3125 UNF UR2756 | – | – | Ieškoti |
| 37 | HOUSING TRANSMISSION ACCESS PLUG 173814 | – | – | Ieškoti |
| 96 | IDENTIFICATION PLATE UR2530 | – | – | Ieškoti |
| 90 | NAME PLATE (FRENCH) UR2532 | – | – | Ieškoti |
| 8 | NUT 230201 | – | – | Ieškoti |
| 31 | NUT 230201 | – | – | Ieškoti |
| 36 | NUT 230201 | – | – | Ieškoti |
| 73 | NUT LOCK 2BA K4307Z | – | – | Ieškoti |
| 118 | NUT LOCK 2BA K4307Z | – | – | Ieškoti |
| 122 | NUT LOCK 2BA K4307Z | – | – | Ieškoti |
| 114 | NUT PLAIN LOCK .250 UNF UA351Z | – | – | Ieškoti |
| 103 | NUT PLAIN LOCK .3125 UNF UA352Z | – | – | Ieškoti |
| 7 | NUT RETAINER 199122 | – | – | Ieškoti |
| 35 | NUT RETAINER 199122 | – | – | Ieškoti |
| 30 | NUT RETAINER 199122 | – | – | Ieškoti |
| 111 | OFF STOP ACCELERATOR PEDAL UR5026 | – | – | Ieškoti |
| 107 | OILITE BUSH ACCELERATOR CROSS SHAFT UE8046 | – | – | Ieškoti |
| 88 | PACKING STRIP GROMMET UD1636 | – | – | Ieškoti |
| 3 | PANEL DASHBOARD CENTRE UR4905 | – | – | Ieškoti |
| 80 | PANEL DASHBOARD INNER UR4951 | – | – | Ieškoti |
| 17 | PANEL DASHBOARD SIDE LH UR5171 | – | – | Ieškoti |
| 23 | PANEL DASHBOARD SIDE RH UR5172 | – | – | Ieškoti |
| 14 | PANEL DASHBOARD UPPER UR4907 | – | – | Ieškoti |
| 29 | PANEL TOEBOARD UR4211 | – | – | Ieškoti |
| 68 | PLUG ACCESS HOLE GEARBOX DIPSTICK RB2515 | – | – | Ieškoti |
| 91 | POP RIVET DOME HEAD .125 IN. X .190 IN. LONG KB13868 | – | – | Ieškoti |
| 97 | POP RIVET DOME HEAD .125 IN. X .290 IN. LONG KB13870 | – | – | Ieškoti |
| 95 | POP RIVET DOME HEAD .125 IN. X .290 IN. LONG KB13870 | – | – | Ieškoti |
| 93 | POP RIVET DOME HEAD .125 IN. X .290 IN. LONG KB13870 | – | – | Ieškoti |
| 61 | SCREW BINDING HEAD 2BA X .250 IN. LONG CS30540Z | – | – | Ieškoti |
| 120 | SCREW BINDING HEAD 2BA X .375 IN. LONG CS30541Z | – | – | Ieškoti |
| 85 | SCREW BINDING HEAD 2BA X .375 IN. LONG CS30541Z | – | – | Ieškoti |
| 116 | SCREW BINDING HEAD 2BA X .375 IN. LONG CS30541Z | – | – | Ieškoti |
| 58 | SCREW BINDING HEAD 2BA X .500 IN. LONG CS30542Z | – | – | Ieškoti |
| 47 | SCREW BINDING HEAD 2BA X .500 IN. LONG CS30542Z | – | – | Ieškoti |
| 63 | SCREW BINDING HEAD 2BA X .500 IN. LONG CS30542Z | – | – | Ieškoti |
| 74 | SCREW CHEESE HEAD 2BA X .375 IN. LONG K1907Z | – | – | Ieškoti |
| 110 | SCREW PAN HEAD .250 UNF X .500 IN. LONG UA4251Z | – | – | Ieškoti |
| 100 | SCREW PAN HEAD .250 UNF X .500 IN. LONG UA4251Z | – | – | Ieškoti |
| 112 | SCREW PAN HEAD .250 UNF X .500 IN. LONG UA4251Z | – | – | Ieškoti |
| 86 | SCREW PAN HEAD 2BA X .625 IN. LONG CS30543Z | – | – | Ieškoti |
| 48 | SCREW PAN HEAD 2BA X .875 IN. LONG CS30545Z | – | – | Ieškoti |
| 59 | SCREW PAN HEAD 2BA X 1.000 IN. LONG CS30546Z | – | – | Ieškoti |
| 56 | SEAL PEDAL GAP PLATE LH UR4246 | – | – | Ieškoti |
| 45 | SEAL PEDAL GAP PLATE LH UR4246 | – | – | Ieškoti |
| 52 | SEAL PEDAL GAP PLATE LOWER UR4244 | – | – | Ieškoti |
| 41 | SEAL PEDAL GAP PLATE LOWER UR4244 | – | – | Ieškoti |
| 42 | SEAL PEDAL GAP PLATE LOWER LH UR4247 | – | – | Ieškoti |
| 53 | SEAL PEDAL GAP PLATE LOWER LH UR4247 | – | – | Ieškoti |
| 43 | SEAL PEDAL GAP PLATE RH UR4248 | – | – | Ieškoti |
| 54 | SEAL PEDAL GAP PLATE RH UR4248 | – | – | Ieškoti |
| 44 | SEAL PEDAL GAP PLATE UPPER UR4245 | – | – | Ieškoti |
| 55 | SEAL PEDAL GAP PLATE UPPER UR4245 | – | – | Ieškoti |
| 99 | SEAL PLASTIC DASHBOARD UW2098 | – | – | Ieškoti |
| 98 | SEAL RUBBER DASHBOARD UW2097 | – | – | Ieškoti |
| 133 | SETSCREW 2BA X .250 IN. LONG KC150Z | – | – | Ieškoti |
| 71 | SETSCREW 2BA X .350 IN. LONG KC170Z | – | – | Ieškoti |
| 101 | SETSCREW ON STOP ACCELERATOR PEDAL UR5218 | – | – | Ieškoti |
| 21 | STUD 2BA X 1.075 IN. LONG KB254Z | – | – | Ieškoti |
| 27 | STUD 2BA X 1.075 IN. LONG KB254Z | – | – | Ieškoti |
| 130 | SUPPORT BRACKET BONNET LH UR2057 | – | – | Ieškoti |
| 129 | SUPPORT BRACKET BONNET RH UR2056 | – | – | Ieškoti |
| 84 | WASHER UR653 | – | – | Ieškoti |
| 49 | WASHER HEAVY .250 IN. KB3905Z | – | – | Ieškoti |
| 60 | WASHER HEAVY .250 IN. KB3905R | – | – | Ieškoti |
| 72 | WASHER PLAIN .200 IN. I.D. K4404Z | – | – | Ieškoti |
| 117 | WASHER PLAIN .200 IN. I.D. K4404Z | – | – | Ieškoti |
| 64 | WASHER PLAIN .200 IN. I.D. K4404Z | – | – | Ieškoti |
| 75 | WASHER PLAIN .200 IN. I.D. K4404Z | – | – | Ieškoti |
| 121 | WASHER PLAIN .200 IN. I.D. K4404Z | – | – | Ieškoti |
| 132 | WASHER PLAIN .260 IN. K4407Z | – | – | Ieškoti |
| 113 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 77 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 79 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 126 | WASHER PLAIN .328 IN. I.D. UA1252Z | – | – | Ieškoti |
| 124 | WASHER PLAIN .328 IN. I.D. UA1252Z | – | – | Ieškoti |
| 87 | WASHER PLAIN 2BA CS32044Z | – | – | Ieškoti |
| 102 | WASHER SETSCREW ON STOP ACCELERATOR PEDAL UR5219 | – | – | Ieškoti |
| 108 | WELDNUT .250 UNF UE1162 | – | – | Ieškoti |
