Bentley Corniche cars fitted with fuel injection system for north america california & japan – schema ir OEM kodai

Fuel & Emission Control Systems · 23 pozicijos · 0 skelbimų

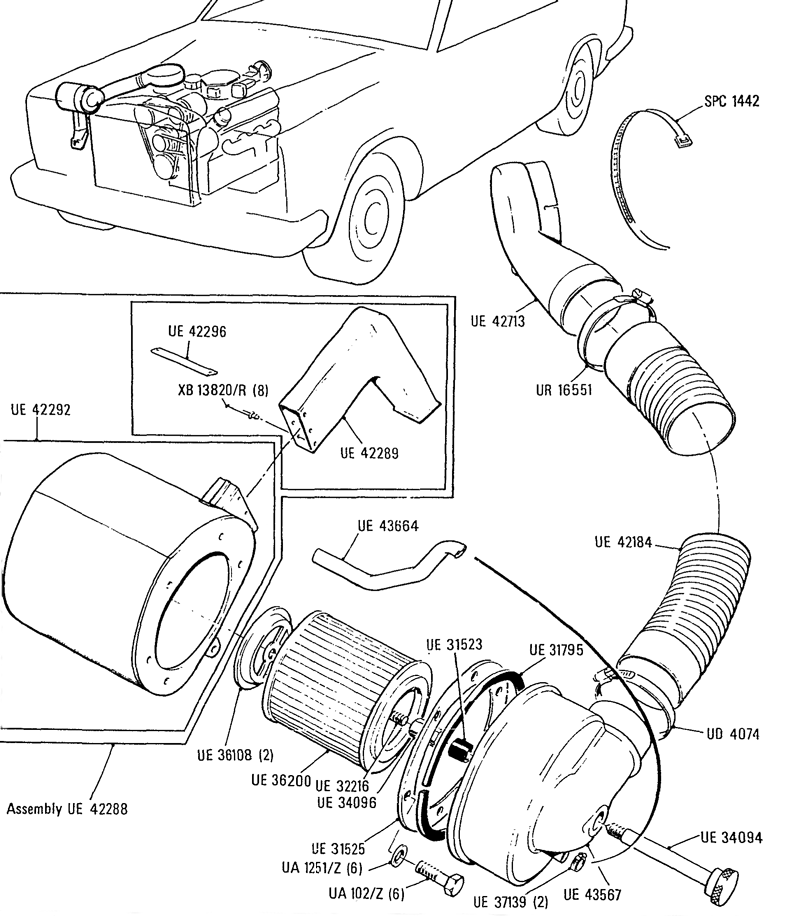

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
1	AIR CLEANER ELEMENT UE36200	–	–	Ieškoti
2	ASSY AIR CLEANER UE42292	–	–	Ieškoti
3	ASSY AIR CLEANER UE42288	–	–	Ieškoti
4	ASSY LOCATION PLATE & SEAL AIR CLEANER UE36108	–	–	Ieškoti
5	ASSY OUTLET DUCT AIR CLEANER UE43567	–	–	Ieškoti
6	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
7	CABLE TIE 10 IN. LONG SPC1442	–	–	Ieškoti
8	CENTRE STUD AIR CLEANER UE32216	–	–	Ieškoti
9	CLAMPING SCREW AIR CLEANER UE34094	–	–	Ieškoti
10	GASKET AIR CLEANER HOUSING UE31525	–	–	Ieškoti
11	HOSE AIR DUMP TO AIR CLEANER UE43664	–	–	Ieškoti
12	HOSE CLIP .875/1.125 IN. UE37139	–	–	Ieškoti
13	HOSE CLIP 3.750/4.500 IN. UD4074	–	–	Ieškoti
14	HOSE CLIP 5.000 IN./5.750 IN. UR16551	–	–	Ieškoti
15	INTAKE DUCT AIR CLEANER TO AIR METER UE42184	–	–	Ieškoti
16	INTAKE DUCT AIR METER UE42713	–	–	Ieškoti
17	INTAKE ELBOW AIR CLEANER UE42289	–	–	Ieškoti
18	NAME PLATE AIR CLEANER UE42296	–	–	Ieškoti
19	NUT CENTRE STUD AIR CLEANER UE34096	–	–	Ieškoti
20	RETAINING SLEEVE CLAMPING SCREW AIR CLEANER UE31523	–	–	Ieškoti
21	RIVET POP DOMED HEAD .156 IN. X .266 IN. LONG XB13820R	–	–	Ieškoti
22	SEAL AIR CLEANER HOUSING UE31795	–	–	Ieškoti
23	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
