Bentley Corniche oil pump pick up & dipstick – schema ir OEM kodai
Engine · 44 pozicijos · 0 skelbimų

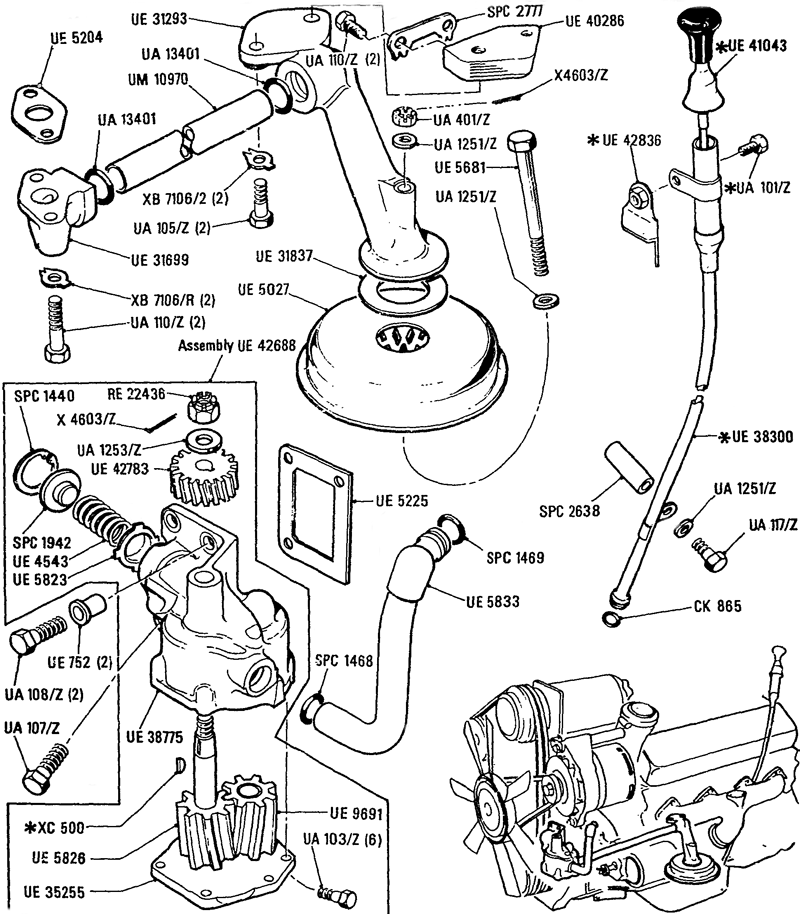

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ADAPTOR OIL PICKUP PEDESTAL UE40286 | – | – | Ieškoti |
| 2 | ASSY CASING OIL PUMP UE38775 | – | – | Ieškoti |
| 3 | ASSY DIPSTICK ENGINE UE41043 | – | – | Ieškoti |
| 3 | ASSY DIPSTICK ENGINE UE43047 | – | – | Ieškoti |
| 4 | ASSY DIPSTICK TUBE ENGINE UE38300 | – | – | Ieškoti |
| 4 | ASSY DIPSTICK TUBE ENGINE UE42840 | – | – | Ieškoti |
| 5 | ASSY MOUNTING BRACKET ENGINE DIPSTICK UE42836 | – | – | Ieškoti |
| 6 | ASSY OIL PUMP UE42688 | – | – | Ieškoti |
| 7 | ASSY PIPE OIL PUMP UE5833 | – | – | Ieškoti |
| 8 | BOLT .250 UNF X .375 IN. LONG UA101Z | – | – | Ieškoti |
| 8 | BOLT .250 UNF X .500 IN. LONG UA102Z | – | – | Ieškoti |
| 9 | BOLT .250 UNF X .625 IN. LONG UA103Z | – | – | Ieškoti |
| 10 | BOLT .250 UNF X .875 IN. LONG UA105Z | – | – | Ieškoti |
| 11 | BOLT .250 UNF X 1.125 IN. LONG UA107Z | – | – | Ieškoti |
| 12 | BOLT .250 UNF X 1.250 IN. LONG UA108Z | – | – | Ieškoti |
| 13 | BOLT .250 UNF X 1.500 IN. LONG UA110Z | – | – | Ieškoti |
| 14 | BOLT OIL PICKUP TO PEDESTAL UE5681 | – | – | Ieškoti |
| 15 | BOLT.250 UNF X 2.375 IN. LONG UA117Z | – | – | Ieškoti |
| 16 | BOTTOM COVER OIL PUMP UE35255 | – | – | Ieškoti |
| 17 | CLIP SPC1440 | – | – | Ieškoti |
| 5 | CLIP DIPSTICK SPC2164 | – | – | Ieškoti |
| 18 | DISC RELIEF VALVE OIL PUMP UE5823 | – | – | Ieškoti |
| 19 | DISTANCE PIECE SPC2638 | – | – | Ieškoti |
| 20 | DOWEL OIL PUMP TO CRANKCASE UE752 | – | – | Ieškoti |
| 21 | DRIVEN GEAR OIL PUMP UE9691 | – | – | Ieškoti |
| 22 | ELBOW OIL PUMP PIPE TO CRANKCASE UE31699 | – | – | Ieškoti |
| 23 | GASKET OIL PUMP TO CRANKCASE UE5225 | – | – | Ieškoti |
| 24 | GEAR & SPINDLE OIL PUMP (DRIVER) UE5826 | – | – | Ieškoti |
| 25 | GEAR OIL PUMP DRIVE (STEEL) UE42783 | – | – | Ieškoti |
| 26 | JOINT OIL PICKUP TO PEDESTAL UE31837 | – | – | Ieškoti |
| 27 | JOINT OIL PICKUP TO PUMP UE5204 | – | – | Ieškoti |
| 28 | LOCKING PLATE SPC2777 | – | – | Ieškoti |
| 29 | NUT RE22436 | – | – | Ieškoti |
| 30 | NUT CASTELLATED .250 UNF UA401Z | – | – | Ieškoti |
| 31 | O RING .424 IN. I.D. X .103 IN. CK865 | – | – | Ieškoti |
| 32 | O RING .540 IN. I.D. X .103 IN. SPC1469 | – | – | Ieškoti |
| 33 | O RING .705 IN. I.D. X .125 IN. SPC1468 | – | – | Ieškoti |
| 34 | O RING .734 IN. I.D. X .139 IN. UA13401 | – | – | Ieškoti |
| 35 | OIL PICK UP ENGINE UE5027 | – | – | Ieškoti |
| 36 | PEDESTAL OIL PUMP PICKUP UE31293 | – | – | Ieškoti |
| 37 | PIN SPLIT .062 IN. X 1.125 IN. LONG X4603Z | – | – | Ieškoti |
| 38 | PIPE OIL PICKUP TO OIL PUMP UM10970 | – | – | Ieškoti |
| 39 | PLUG RELIEF VALVE SPC1942 | – | – | Ieškoti |
| 40 | SPRING RELIEF VALVE ENGINE OIL PUMP UE4543 | – | – | Ieškoti |
| 41 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 42 | WASHER PLAIN .390 IN. I.D. UA1253Z | – | – | Ieškoti |
| 43 | WASHER TAB .250 IN. XB7106R | – | – | Ieškoti |
| 44 | WOODRUFF KEY .500 IN. DIAMETER X .0935 IN. THICK XC500 | – | – | Ieškoti |
| 44 | WOODRUFF KEY .500 IN. DIAMETER X .0940 IN. THICK XC501 | – | – | Ieškoti |
| 44 | WOODRUFF KEY .500 IN. DIAMETER X .0945 IN. THICK XC502 | – | – | Ieškoti |
| 44 | WOODRUFF KEY .500 IN. DIAMETER X .0950 IN. THICK XC503 | – | – | Ieškoti |
