Bentley Corniche transmission electric actuator – schema ir OEM kodai
Transmission 3 Speed Automatic (GM400) · 99 pozicijos · 0 skelbimų

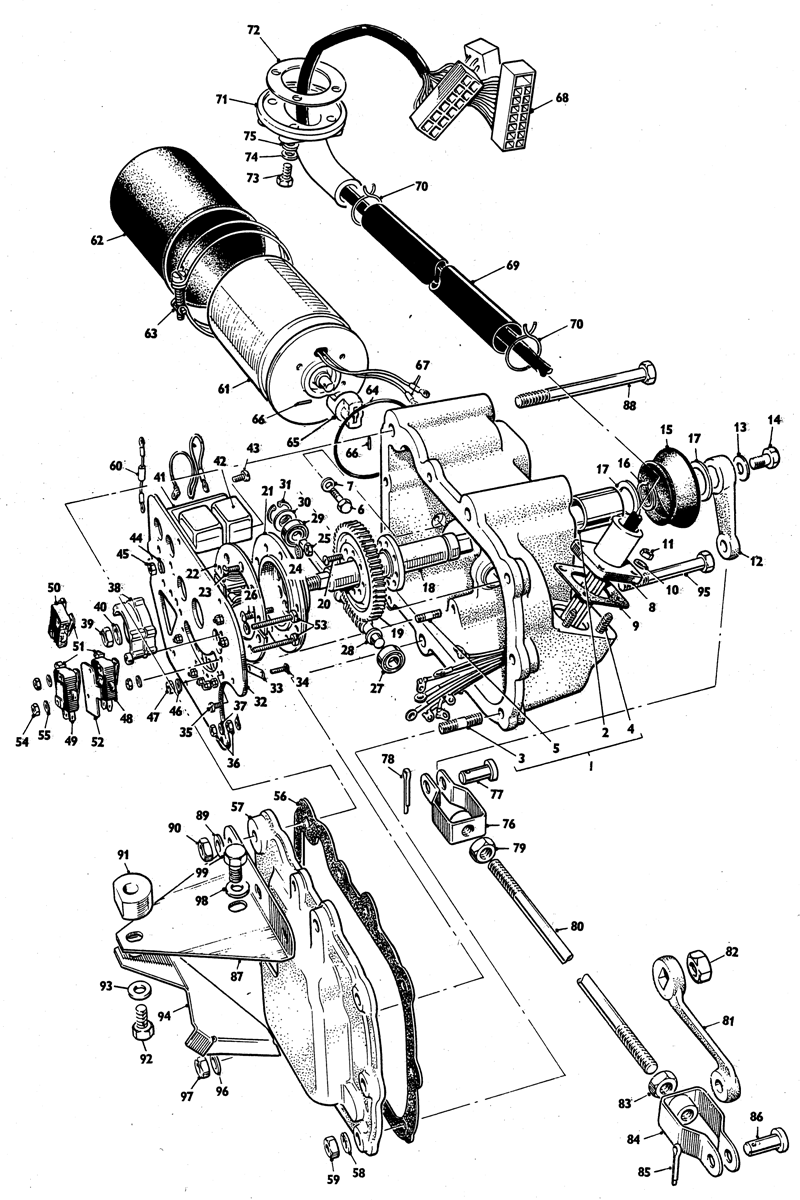

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 8 | ADAPTOR LOOM CONDUIT GEAR CHANGE ACTUATOR UD20994 | – | – | Ieškoti |
| 68 | ASSY LOOM TRANSMISSION ACTUATOR UG14459 | – | – | Ieškoti |
| 1 | ASSY MAIN CASING TRANSMISSION ACTUATOR UG14141 | – | – | Ieškoti |
| 87 | ASSY MOUNTING BRACKET TRANSMISSION ACTUATOR UG13379 | – | – | Ieškoti |
| 18 | ASSY PINION SHAFT TRANSMISSION ACTUATOR UG14325 | – | – | Ieškoti |
| 51 | ASSY ROLLER MICROSWITCH UG12676 | – | – | Ieškoti |
| 21 | ASSY SLIP RING TRANSMISSION ACTUATOR UG12649 | – | – | Ieškoti |
| 1 | ASSY TRANSMISSION ACTUATOR UG14350 | – | – | Ieškoti |
| 1 | ASSY TRANSMISSION ACTUATOR & LOOM UG14459A1 | – | – | Ieškoti |
| 27 | BALL BEARING GEARBOX ACTUATOR UB2276 | – | – | Ieškoti |
| 32 | BASE SPRING CONTACTS GEAR SELECTOR ACTUATOR UG14458 | – | – | Ieškoti |
| 14 | BOLT .250 UNF X .750 IN. LONG UA104Z | – | – | Ieškoti |
| 6 | BOLT .250 UNF X .750 IN. LONG UA104Z | – | – | Ieškoti |
| 95 | BOLT .3125 UNF X 2.500 IN. LONG UA167Z | – | – | Ieškoti |
| 88 | BOLT .3125 UNF X 3.750 IN. LONG UA174Z | – | – | Ieškoti |
| 99 | BOLT .375 UNC X 1.325 IN. LONG UG13287 | – | – | Ieškoti |
| 92 | BOLT .4375 UNC X 1.500 IN. LONG SPC2284 | – | – | Ieškoti |
| 73 | BOLT 2BA X .500 IN. LONG XC153Z | – | – | Ieškoti |
| 2 | BUSH OUTPUT LEVER TRANSMISSION ACTUATOR UG13104 | – | – | Ieškoti |
| 67 | CABLE EYE 2BA UD14426 | – | – | Ieškoti |
| 16 | CIRCLIP EXTERNAL .583 IN. DIAMETER XB14159 | – | – | Ieškoti |
| 31 | CIRCLIP INTERNAL .838 IN. DIAMETER XB14014 | – | – | Ieškoti |
| 86 | CLEVIS PIN .3125 DIAMETER X .740 IN. LONG X6605Z | – | – | Ieškoti |
| 77 | CLEVIS PIN .3125 DIAMETER X .740 IN. LONG X6605Z | – | – | Ieškoti |
| 63 | CLIP 3.375 IN. NOMINAL UG12972 | – | – | Ieškoti |
| 70 | CLIP HOSE WIRE TYPE 1.125 IN. NOMINAL SPC1847 | – | – | Ieškoti |
| 69 | CONDUIT LOOM CONDUIT GEAR CHANGE ACTUATOR UD20995 | – | – | Ieškoti |
| 33 | CONNECTING STRIP TRANSMISSION ACTUATOR UG13112 | – | – | Ieškoti |
| 65 | COUPLING MOTOR TRANSMISSION ACTUATOR UG14324 | – | – | Ieškoti |
| 57 | COVER TRANSMISSION ACTUATOR UG14304 | – | – | Ieškoti |
| 91 | DISTANCE PIECE TRANSMISSION ACTUATOR MOUNTING UG13382 | – | – | Ieškoti |
| 71 | ELBOW LOOM CONDUIT GEAR CHANGE ACTUATOR UD20993 | – | – | Ieškoti |
| 15 | GAITER UR11240 | – | – | Ieškoti |
| 72 | GASKET ELBOW LOOM CONDUIT GEAR CHANGE ACTUATOR UD20996 | – | – | Ieškoti |
| 9 | GASKET LOOM CONDUIT TO TRANSMISSION ACTUATOR UG12316 | – | – | Ieškoti |
| 19 | GEAR WORM GEARBOX ACTUATOR UB2255 | – | – | Ieškoti |
| 76 | JAW OPERATING ROD TRANSMISSION ACTUATOR UG12665 | – | – | Ieškoti |
| 56 | JOINT COVER TRANSMISSION ACTUATOR UG13937 | – | – | Ieškoti |
| 81 | LEVER GEAR SELECTOR TRANSMISSION UG14303 | – | – | Ieškoti |
| 12 | LEVER GEAR SELECTOR TRANSMISSION ACTUATOR UG14321 | – | – | Ieškoti |
| 48 | MICROSWITCH UD16580 | – | – | Ieškoti |
| 50 | MICROSWITCH UD16580 | – | – | Ieškoti |
| 49 | MICROSWITCH UD16580 | – | – | Ieškoti |
| 61 | MOTOR TRANSMISSION ACTUATOR UG14369 | – | – | Ieškoti |
| 41 | MOUNTING BRACKET RELAYS TRANSMISSION ACTUATOR UG14456 | – | – | Ieškoti |
| 84 | NO DESCRIPTION UG126G5 | – | – | Ieškoti |
| 59 | NUT LOCK 2BA X4307Z | – | – | Ieškoti |
| 11 | NUT LOCK 3BA X4304Z | – | – | Ieškoti |
| 47 | NUT LOCK 3BA X4304Z | – | – | Ieškoti |
| 82 | NUT M10 X 1.5 SPM1249 | – | – | Ieškoti |
| 83 | NUT PLAIN .250 UNF UA301Z | – | – | Ieškoti |
| 79 | NUT PLAIN .250 UNF UA301Z | – | – | Ieškoti |
| 97 | NUT PLAIN .3125 UNF UA302Z | – | – | Ieškoti |
| 90 | NUT PLAIN .3125 UNF UA302Z | – | – | Ieškoti |
| 45 | NUT PLAIN 2BA UA11405Z | – | – | Ieškoti |
| 36 | NUT PLAIN 5BA X4003Z | – | – | Ieškoti |
| 54 | NUT PLAIN 6BA X4002Z | – | – | Ieškoti |
| 25 | NUT PLAIN 6BA X4002Z | – | – | Ieškoti |
| 39 | NUT PLAIN LOCK .250 UNF UA351Z | – | – | Ieškoti |
| 38 | OPERATING CAM TRANSMISSION ACTUATOR UG13106 | – | – | Ieškoti |
| 80 | OPERATING ROD TRANSMISSION ACTUATOR UG12367 | – | – | Ieškoti |
| 66 | PIN SHAFT SPC2384 | – | – | Ieškoti |
| 29 | PLAIN BEARING UB2275 | – | – | Ieškoti |
| 62 | PROTECTIVE BOOT TRANSMISSION ACTUATOR MOTOR UG12965 | – | – | Ieškoti |
| 42 | RELAY UD22452 | – | – | Ieškoti |
| 43 | SCREW CHEESE HEAD 2BA X .500 IN. LONG X1910Z | – | – | Ieškoti |
| 26 | SCREW CHEESE HEAD 5BA X .625 IN. LONG X1716Z | – | – | Ieškoti |
| 34 | SCREW CHEESE HEAD 5BA X .625 IN. LONG X1716Z | – | – | Ieškoti |
| 53 | SCREW CHEESE HEAD 6BA X 1.250 IN. LONG UA10702Z | – | – | Ieškoti |
| 23 | SCREW CSK HEAD 6BA X .500 IN. LONG SPC2531 | – | – | Ieškoti |
| 35 | SCREW MUSHROOM HEAD 5BA X .375 IN. LONG UA6763Z | – | – | Ieškoti |
| 20 | SCREW MUSHROOM HEAD 5BA X .375 IN. LONG UA6763Z | – | – | Ieškoti |
| 64 | SEAL RING CK3112 | – | – | Ieškoti |
| 22 | SEGMENT SLIP RING TRANSMISSION ACTUATOR UG11289 | – | – | Ieškoti |
| 52 | SEPARATOR MICROSWITCHES UG12392 | – | – | Ieškoti |
| 78 | SPLIT PIN .124 IN. X .750 IN. LONG UA10031Z | – | – | Ieškoti |
| 85 | SPLIT PIN .124 IN. X .750 IN. LONG UA10031Z | – | – | Ieškoti |
| 94 | STAY BRACKET TRANSMISSION ACTUATOR UG13378 | – | – | Ieškoti |
| 3 | STUD 2BA X 1.075 IN. LONG UA1413Z | – | – | Ieškoti |
| 5 | STUD 3BA X .750 IN. LONG XB201Z | – | – | Ieškoti |
| 4 | STUD 3BA X .750 IN. LONG XB201Z | – | – | Ieškoti |
| 60 | SUPPRESSOR TRANSMISSION ACTUATOR UG13341 | – | – | Ieškoti |
| 17 | WASHER UG11304 | – | – | Ieškoti |
| 13 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 7 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 40 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 89 | WASHER PLAIN .328 IN. I.D. UA1252Z | – | – | Ieškoti |
| 96 | WASHER PLAIN .328 IN. I.D. UA1252Z | – | – | Ieškoti |
| 98 | WASHER PLAIN .390 IN. I.D. UA1253Z | – | – | Ieškoti |
| 93 | WASHER PLAIN .453 IN. I.D. UA1254Z | – | – | Ieškoti |
| 44 | WASHER PLAIN 2BA X4404Z | – | – | Ieškoti |
| 75 | WASHER PLAIN 2BA X4404Z | – | – | Ieškoti |
| 74 | WASHER SHAKEPROOF 2BA CS32056Z | – | – | Ieškoti |
| 37 | WASHER SHAKEPROOF 5BA UD10080 | – | – | Ieškoti |
| 24 | WASHER SHAKEPROOF 6BA UG10742 | – | – | Ieškoti |
| 55 | WASHER SHAKEPROOF 6BA UG10742 | – | – | Ieškoti |
| 30 | WASHER SPACING BEARING .055 IN. UB2277 | – | – | Ieškoti |
| 30 | WASHER SPACING BEARING .058 IN. UB2278 | – | – | Ieškoti |
| 30 | WASHER SPACING BEARING .061 IN. UB2279 | – | – | Ieškoti |
| 30 | WASHER SPACING BEARING .064 IN. UB2280 | – | – | Ieškoti |
| 30 | WASHER SPACING BEARING .067 IN. UB2281 | – | – | Ieškoti |
| 30 | WASHER SPACING BEARING .070 IN. UB2282 | – | – | Ieškoti |
| 58 | WASHER SPRING 2BA X9006Z | – | – | Ieškoti |
| 10 | WASHER SPRING 3BA X9005Z | – | – | Ieškoti |
| 46 | WASHER SPRING 3BA X9005 | – | – | Ieškoti |
| 28 | WORMSHAFT TRANSMISSION ACTUATOR UG14332 | – | – | Ieškoti |
