Bentley Corniche crankcase covers & sump – schema ir OEM kodai

Engine · 46 pozicijos · 0 skelbimų

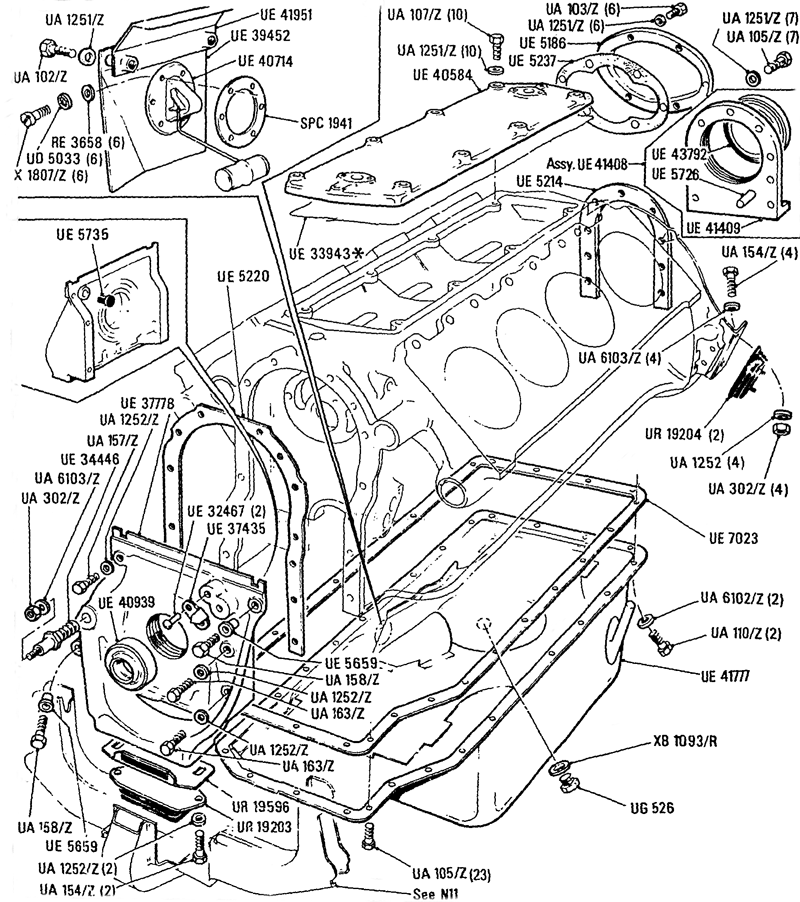

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
1	ASSY FRONT COVER & MOUNTING FOOT CRANKCASE UE37778	–	–	Ieškoti
2	ASSY MOUNTING BRACKET HEATSHIELD OIL LEVEL TRANSMITTER UE41951	–	–	Ieškoti
3	ASSY REAR CRANKCASE COVER & CRANKSHAFT SEAL UE41408	–	–	Ieškoti
4	ASSY SUMP & BAFFLE ENGINE UE41777	–	–	Ieškoti
5	ASSY TAPPET COVER UE40584	–	–	Ieškoti
6	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
7	BOLT .250 UNF X .625 IN. LONG UA103Z	–	–	Ieškoti
8	BOLT .250 UNF X .875 IN. LONG UA105Z	–	–	Ieškoti
9	BOLT .250 UNF X 1.125 IN. LONG UA107Z	–	–	Ieškoti
10	BOLT .250 UNF X 1.500 IN. LONG UA110Z	–	–	Ieškoti
11	BOLT .3125 UNF X .875 IN. LONG UA154Z	–	–	Ieškoti
12	BOLT .3125 UNF X 1.250 IN. LONG UA157Z	–	–	Ieškoti
13	BOLT .3125 UNF X 1.250 IN. LONG UA158Z	–	–	Ieškoti
14	BOLT .3125 UNF X 2.000 IN. LONG UA163Z	–	–	Ieškoti
15	COVER CRANKCASE REAR UE41409	–	–	Ieškoti
16	COVER DISTRIBUTOR DRIVE CRANKCASE UE5186	–	–	Ieškoti
17	DOWEL .312 IN. X .600 IN. LONG UE5726	–	–	Ieškoti
18	DOWEL FRONT COVER CRANKCASE UE5659	–	–	Ieškoti
19	DRAIN PLUG UG526	–	–	Ieškoti
20	ENGINE MOUNT FRONT UR19203	–	–	Ieškoti
21	ENGINE MOUNT REAR UR19204	–	–	Ieškoti
22	GASKET FRONT COVER TO CRANKCASE UE5220	–	–	Ieškoti
23	GASKET SUMP OIL LEVEL SENDER SPC1941	–	–	Ieškoti
24	HEATSHIELD OIL LEVEL TRANSMITTER UE39452	–	–	Ieškoti
25	JOINT DISTRIBUTOR DRIVE COVER UE5237	–	–	Ieškoti
26	JOINT ENGINE SUMP TO CRANKCASE UE7023	–	–	Ieškoti
27	JOINT REAR COVER TO CRANKCASE UE5214	–	–	Ieškoti
28	MILLS PIN UE32467	–	–	Ieškoti
29	NUT PLAIN .3125 UNF UA302Z	–	–	Ieškoti
30	PACKING PIECE ENGINE MOUNTING FRONT UR14588	–	–	Ieškoti
31	PIVOT PIN JOCKEY PULLEY UE34446	–	–	Ieškoti
32	RUBBER PLUG CRANKCASE FRONT COVER UE5735	–	–	Ieškoti
33	SCREW CHEESE HEAD 3BA X .500 IN. LONG X1807Z	–	–	Ieškoti
34	SEAL CRANKSHAFT FRONT UE40939	–	–	Ieškoti
35	SEAL CRANKSHAFT REAR UE43792	–	–	Ieškoti
36	SEALING THREAD TAPPET COVER UE33943	–	–	Ieškoti
30	STOP PLATE FRONT ENGINE MOUNTING UR19596	–	–	Ieškoti
37	TIMING POINTER CRANKCASE FRONT COVER UE37435	–	–	Ieškoti
38	TRANSMITTER OIL LEVEL UE40714	–	–	Ieškoti
39	WASHER RE3658	–	–	Ieškoti
40	WASHER JOINT XB1093R	–	–	Ieškoti
41	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
42	WASHER PLAIN .328 IN. I.D. UA1252	–	–	Ieškoti
43	WASHER PLAIN .328 IN. I.D. UA1252Z	–	–	Ieškoti
44	WASHER SHAKEPROOF 3BA UD5033	–	–	Ieškoti
45	WASHER THICK .255 IN. I.D. UA6102Z	–	–	Ieškoti
46	WASHER THICK .3175 IN. I.D. UA6103Z	–	–	Ieškoti
