Bentley Corniche hub & stub axle – schema ir OEM kodai

Subframe & Suspension · 22 pozicijos · 0 skelbimų

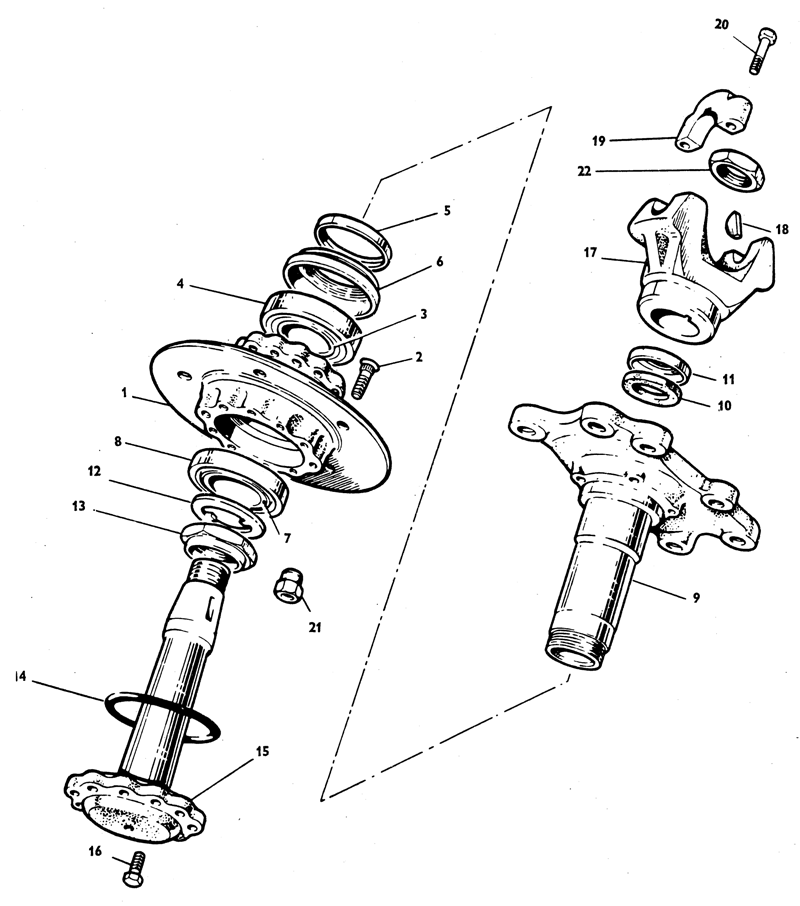

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.Detalė / OEM kodasKaina nuo
1ASSY WHEEL HUB REAR LH
UG14243		–Ieškoti
1ASSY WHEEL HUB REAR RH
UG14242		–Ieškoti
17ASSY YOKE DRIVESHAFT JOINT OUTBOARD
UG13286		–Ieškoti
5BEARING SPACER REAR HUB
UG10817		–Ieškoti
16BOLT .375 UNF X .875 IN. LONG
UA205Z		–Ieškoti
20BOLT .4375 UNF X 1.750 IN. LONG
UA260Z		–Ieškoti
19CAP BEARING RACE UNIVERSAL JOINT DRIVESHAFT OUTER
UG4505		–Ieškoti
3CONE WHEEL BEARING
UG13564		–Ieškoti
7CONE WHEEL BEARING
UG13562		–Ieškoti
4CUP WHEEL BEARING
UG13565		–Ieškoti
8CUP WHEEL BEARING
UG13563		–Ieškoti
15DRIVESHAFT REAR HUB
UG13483		–Ieškoti
22GREASE CONTAINER REAR HUB
RH8183		–Ieškoti
11HOUSING REAR HUB SEAL
UG10046		–Ieškoti
12KEY WASHER STUB AXLE REAR
UG10155		–Ieškoti
22KIT HUB NUT
RH2453		–Ieškoti
22NUT OUTBOARD YOKE DRIVESHAFT
UG13066		–Ieškoti
21NUT ROAD WHEEL LH
UG4455		–Ieškoti
21NUT ROAD WHEEL RH
UG4454		–Ieškoti
13NUT STUB AXLE REAR
UG10154		–Ieškoti
14O RING 3.125 IN. I.D. X .093 IN.
UG11161		–Ieškoti
6RETAINER GREASE REAR HUB LH
UG12013		–Ieškoti
6RETAINER GREASE REAR HUB RH
UG12012		–Ieškoti
10SEAL (FELT) REAR HUB
UG10045		–Ieškoti
9STUB AXLE REAR LH
UG12641		–Ieškoti
9STUB AXLE REAR RH
UG12642		–Ieškoti
2STUD ROAD WHEEL LH (1.600 IN.)
UG13925		–Ieškoti
2STUD ROAD WHEEL RH (1.600 IN.)
UG13926		–Ieškoti
18WOODRUFF KEY .875 IN. DIAMETER X .2185 IN. THICK
XC520R		–Ieškoti
18WOODRUFF KEY .875 IN. DIAMETER X .2190 IN. THICK
XC521R		–Ieškoti
18WOODRUFF KEY .875 IN. DIAMETER X .2195 IN. THICK
XC522R		–Ieškoti
18WOODRUFF KEY .875 IN. DIAMETER X .2200 IN. THICK
XC523R		–Ieškoti
