Bentley Azure seat squab & headrest (seats front) – schema ir OEM kodai
Seats Front · 41 pozicija · 0 skelbimų

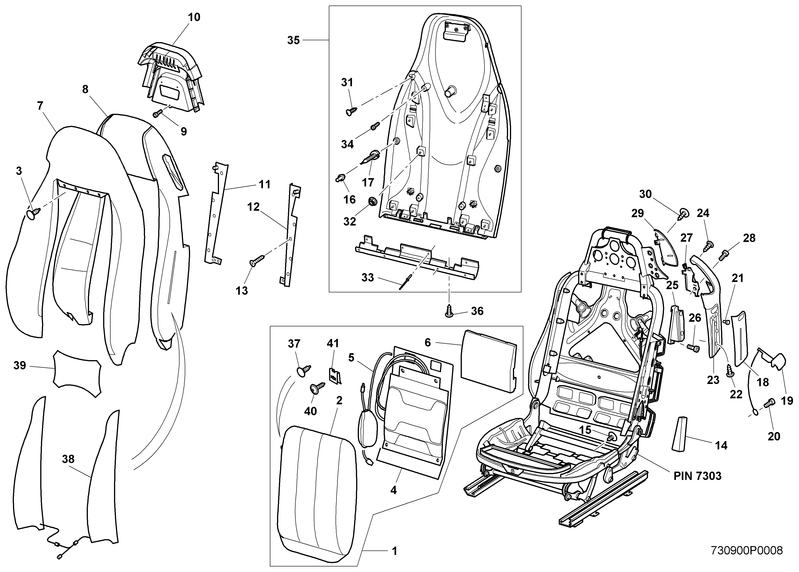

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 7 | ASSY COVER SQUAB FRONT LH 3Z7881805 | – | – | Ieškoti |
| 7 | ASSY COVER SQUAB FRONT RH 3Z7881806 | – | – | Ieškoti |
| 2 | ASSY COVER SQUAB INSERT WITH HEATER 3Z3881852 | – | – | Ieškoti |
| 4 | ASSY LUMBAR SUPPORT 4 WAY MASSAGE LH 3Z7881879 | – | – | Ieškoti |
| 4 | ASSY LUMBAR SUPPORT 4 WAY MASSAGE RH 3Z7881880 | – | – | Ieškoti |
| 35 | ASSY SEAT BACK COMPLETE LH 3Z3881647 | – | – | Ieškoti |
| 35 | ASSY SEAT BACK COMPLETE RH 3Z3881648 | – | – | Ieškoti |
| 23 | ASSY SEATBELT COVER FRONT LH 3Z3881801 | – | – | Ieškoti |
| 23 | ASSY SEATBELT COVER FRONT RH 3Z3881802 | – | – | Ieškoti |
| 1 | ASSY SQUAB INSERT MASSAGE LH 3Z3881879 | – | – | Ieškoti |
| 1 | ASSY SQUAB INSERT MASSAGE RH 3Z3881880 | – | – | Ieškoti |
| 33 | BLIND RIVET 4.0 X 13.0 N90825801 | – | – | Ieškoti |
| 27 | BRACKET FINISHER BELT COVER LH 3W8881569 | – | – | Ieškoti |
| 27 | BRACKET FINISHER BELT COVER RH 3W8881570 | – | – | Ieškoti |
| 41 | CAPTIVE NUT NO.8 SCREW UD13713 | – | – | Ieškoti |
| 15 | CLIP FIR TREE 3W0881635 | – | – | Ieškoti |
| 17 | CLIP FIR TREE 3W0867549 | – | – | Ieškoti |
| 3 | CLIP FIR TREE BLACK 3W0881635C | – | – | Ieškoti |
| 30 | CLIP FIR TREE BLACK 3W0881635C | – | – | Ieškoti |
| 37 | DRIVE FASTENER SPM1766 | – | – | Ieškoti |
| 18 | ESCUTCHEON SQUAB RELEASE LH 3Z7881607 | – | – | Ieškoti |
| 18 | ESCUTCHEON SQUAB RELEASE RH 3Z7881608 | – | – | Ieškoti |
| 29 | FINISHER COVER SEATBELT LH 3Z7881649 | – | – | Ieškoti |
| 29 | FINISHER COVER SEATBELT RH 3Z7881650 | – | – | Ieškoti |
| 14 | FOAM BLOCK 3W3881739A | – | – | Ieškoti |
| 12 | FRAME SQUAB TRIM COVER RETENTION LH 3Z7881323 | – | – | Ieškoti |
| 11 | FRAME SQUAB TRIM COVER RETENTION RH 3Z7881324 | – | – | Ieškoti |
| 21 | FRICTION BUSH 3W0881635A | – | – | Ieškoti |
| 25 | GUIDE BRACKET SQUAB RELEASE LH 3W8881183A | – | – | Ieškoti |
| 25 | GUIDE BRACKET SQUAB RELEASE RH 3W8881184A | – | – | Ieškoti |
| 39 | HEATER HEADREST FRONT SEAT LH 3Z7882849 | – | – | Ieškoti |
| 39 | HEATER HEADREST FRONT SEAT RH 3Z7882850 | – | – | Ieškoti |
| 38 | HEATER SQUAB BOLSTERS FRONT SEAT 3Z7963581 | – | – | Ieškoti |
| 19 | LEVER SQUAB RELEASE LH 3Z7881633 | – | – | Ieškoti |
| 19 | LEVER SQUAB RELEASE RH 3Z7881634 | – | – | Ieškoti |
| 10 | MOULDING INSERT HEADREST 3W3881941 | – | – | Ieškoti |
| 6 | MOULDING LUMBAR SUPPORT 3W8881705A | – | – | Ieškoti |
| 8 | MOULDING SQUAB FRONT LH 3Z7881775A | – | – | Ieškoti |
| 8 | MOULDING SQUAB FRONT RH 3Z7881776A | – | – | Ieškoti |
| 5 | NOT SOLD SEPARATELY ZZZZZ | – | – | Ieškoti |
| 32 | NUT WITH WASHER M5 N90434903 | – | – | Ieškoti |
| 26 | SCREW FLANGE HD ST4.2 X 16 N90698602 | – | – | Ieškoti |
| 20 | SCREW FLANGE HD ST4.2 X 16 N90698602 | – | – | Ieškoti |
| 9 | SCREW FLANGE TAPPING ST3.5 X 13 N10642801 | – | – | Ieškoti |
| 13 | SCREW HEX SOCKET M4 X 12 N10621601 | – | – | Ieškoti |
| 24 | SCREW HEX SOCKET M4 X 20 N10634001 | – | – | Ieškoti |
| 28 | SCREW HEX SOCKET M4 X 6 N10660301 | – | – | Ieškoti |
| 34 | SCREW HEX SOCKET M5 X 12 N90944603 | – | – | Ieškoti |
| 31 | SCREW M3 X 8.0 N10613301 | – | – | Ieškoti |
| 40 | SCREW M5 X 12 N10471801 | – | – | Ieškoti |
| 22 | SCREW M5 X 12 N10471801 | – | – | Ieškoti |
| 36 | SCREW PAN HEAD TAPPING ST4.2 X 19.0 R N10666302 | – | – | Ieškoti |
| 16 | STUD HOLDER 3W3882945 | – | – | Ieškoti |
