Bentley Azure main cables – schema ir OEM kodai
Electrical · 7 pozicijos · 0 skelbimų

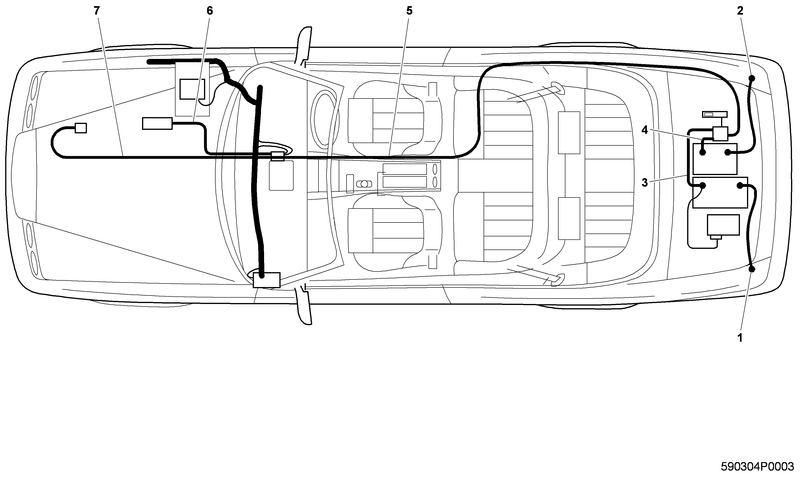

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 7 | CABLE ALTERNATOR TO JUNCTION BOX PM102638PE | – | – | Ieškoti |
| 5 | CABLE BATTERY JUNCTION BOX TO SOLENOID PM115528PA | – | – | Ieškoti |
| 6 | CABLE BATTERY JUNCTION BOX TO STARTER PM56281PB | – | – | Ieškoti |
| 1 | CABLE BATTERY NEGATIVE LH PM115527PA | – | – | Ieškoti |
| 2 | CABLE BATTERY NEGATIVE RH PM114879PA | – | – | Ieškoti |
| 3 | CABLE BATTERY POSITIVE LH BATTERY TO SOLENOID PR114881PA | – | – | Ieškoti |
| 4 | CABLE BATTERY POSITIVE RH BATTERY TO SOLENOID PR114880PA | – | – | Ieškoti |
