Bentley Azure base frame mechanism, seat – schema ir OEM kodai
Seats Front · 30 pozicijų · 0 skelbimų

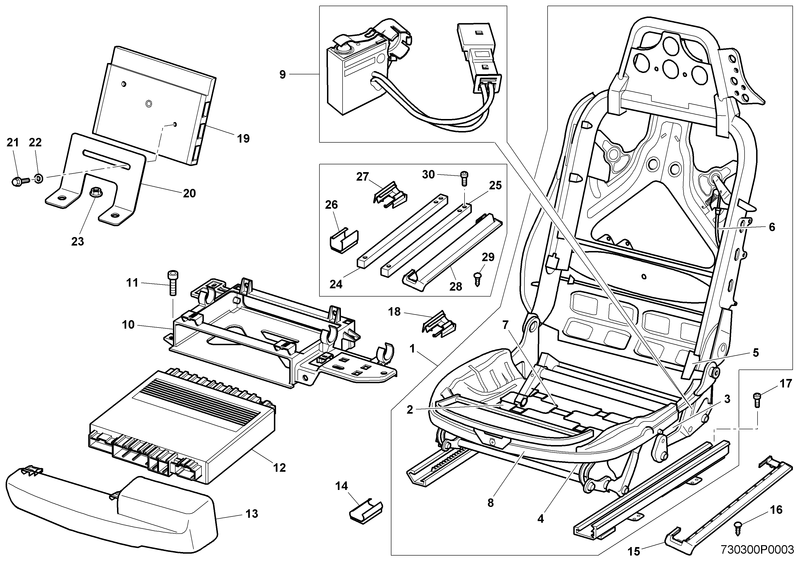

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 24 | ASSY ADAPTOR SEAT RAIL INBOARD LH REST OF WORLD 3Z3886711 | – | – | Ieškoti |
| 24 | ASSY ADAPTOR SEAT RAIL INBOARD RH REST OF WORLD 3Z3886712 | – | – | Ieškoti |
| 25 | ASSY ADAPTOR SEAT RAIL OUTBOARD LH REST OF WORLD 3Z3886715 | – | – | Ieškoti |
| 25 | ASSY ADAPTOR SEAT RAIL OUTBOARD RH REST OF WORLD 3Z3886716 | – | – | Ieškoti |
| 8 | ASSY CUSHION EXTENSION WITH MOTOR 3W3881374 | – | – | Ieškoti |
| 1 | ASSY SEAT MECHANISM DRIVER & PASSENGER LH 3Z7881681C | – | – | Ieškoti |
| 1 | ASSY SEAT MECHANISM DRIVER & PASSENGER RH 3Z7881682C | – | – | Ieškoti |
| 1 | ASSY SEAT MECHANISM PASSENGER PODS (NORTH AMERICA) 3Z7881682D | – | – | Ieškoti |
| 20 | BRACKET CONTROL MODULE PW116290PA | – | – | Ieškoti |
| 10 | BRACKET SEAT CONTROL MODULE FRONT LH 3W0959115B | – | – | Ieškoti |
| 10 | BRACKET SEAT CONTROL MODULE FRONT RH 3W0959116A | – | – | Ieškoti |
| 6 | CABLE SEAT SQUAB RELEASE LH 3W3881602 | – | – | Ieškoti |
| 6 | CABLE SEAT SQUAB RELEASE RH 3W3881603 | – | – | Ieškoti |
| 19 | CONTROL MODULE FRONT SEAT DRIVERS PW55147PA | – | – | Ieškoti |
| 13 | COVER CONTROL MODULE FRONT SEAT LH 3W0959509A | – | – | Ieškoti |
| 13 | COVER CONTROL MODULE FRONT SEAT RH 3W0959510A | – | – | Ieškoti |
| 14 | COVER SEAT RAIL INBOARD FRONT LH NORTH AMERICA 3Z3881809 | – | – | Ieškoti |
| 26 | COVER SEAT RAIL INBOARD FRONT LH REST OF WORLD 3W8881809 | – | – | Ieškoti |
| 14 | COVER SEAT RAIL INBOARD FRONT RH NORTH AMERICA 3Z3881810 | – | – | Ieškoti |
| 26 | COVER SEAT RAIL INBOARD FRONT RH REST OF WORLD 3W8881810 | – | – | Ieškoti |
| 18 | COVER SEAT RAIL INBOARD REAR LH NORTH AMERICA 3Z3881809A | – | – | Ieškoti |
| 27 | COVER SEAT RAIL INBOARD REAR LH REST OF WORLD 3W8881809A | – | – | Ieškoti |
| 18 | COVER SEAT RAIL INBOARD REAR RH NORTH AMERICA 3Z3881810A | – | – | Ieškoti |
| 27 | COVER SEAT RAIL INBOARD REAR RH REST OF WORLD 3W8881810A | – | – | Ieškoti |
| 15 | COVER SEAT RAIL OUTBOARD LH NORTH AMERICA 3Z3881085 | – | – | Ieškoti |
| 28 | COVER SEAT RAIL OUTBOARD LH REST OF WORLD 3W8881085 | – | – | Ieškoti |
| 15 | COVER SEAT RAIL OUTBOARD RH NORTH AMERICA 3Z3881086 | – | – | Ieškoti |
| 28 | COVER SEAT RAIL OUTBOARD RH REST OF WORLD 3W8881086 | – | – | Ieškoti |
| 12 | DRIVERS SEAT CONTROL MODULE WITH MASSAGE 3W0959760B06 | – | – | Ieškoti |
| 12 | DRIVERS SEAT CONTROL MODULE WITHOUT MASSAGE 3W0959760B05 | – | – | Ieškoti |
| 12 | FRONT PASSENGER SEAT CONTROL MODULE WITH MASSAGE WITH PODS 3W0959759B12 | – | – | Ieškoti |
| 12 | FRONT PASSENGER SEAT CONTROL MODULE WITH MASSAGE WITHOUT PODS 3W0959759B10 | – | – | Ieškoti |
| 12 | FRONT PASSENGER SEAT CONTROL MODULE WITHOUT MASSAGE WITH PODS 3W0959759B11 | – | – | Ieškoti |
| 12 | FRONT PASSENGER SEAT CONTROL MODULE WITHOUT MASSAGE WITHOUT PODS 3W0959759B09 | – | – | Ieškoti |
| 4 | MOTOR SEAT CUSHION TILT ADJUST LH 3W3959761B | – | – | Ieškoti |
| 4 | MOTOR SEAT CUSHION TILT ADJUST RH 3W3959762B | – | – | Ieškoti |
| 2 | MOTOR SEAT FORE AFT ADJUST LH 3W3959761 | – | – | Ieškoti |
| 2 | MOTOR SEAT FORE AFT ADJUST RH 3W3959762 | – | – | Ieškoti |
| 3 | MOTOR SEAT HEIGHT ADJUST LH 3W3959761A | – | – | Ieškoti |
| 3 | MOTOR SEAT HEIGHT ADJUST RH 3W3959762A | – | – | Ieškoti |
| 5 | MOTOR SEAT SQUAB ANGLE ADJUST LH 3W3959761C | – | – | Ieškoti |
| 5 | MOTOR SEAT SQUAB ANGLE ADJUST RH 3W3959762C | – | – | Ieškoti |
| 23 | NUT WHIZTITE M6 PB25054PA | – | – | Ieškoti |
| 16 | RETAINER COVER OUTBOARD 3W0881279 | – | – | Ieškoti |
| 29 | RETAINER COVER OUTBOARD 3W0881279 | – | – | Ieškoti |
| 11 | SCREW HEX SOCKET M5 X 12 N90944603 | – | – | Ieškoti |
| 17 | SCREW MULTI POINT HEAD M10 X 30 3Z7881078 | – | – | Ieškoti |
| 30 | SCREW MULTI POINT HEAD M10 X 65 3Z7881077 | – | – | Ieškoti |
| 21 | SETSCREW M6 X 12MM LONG UM21434Z | – | – | Ieškoti |
| 7 | SUSPENSION MAT FRONT SEAT 3W3881375 | – | – | Ieškoti |
| 9 | SWITCH SQUAB LOCK FRONT SEAT LH 3W3959763 | – | – | Ieškoti |
| 9 | SWITCH SQUAB LOCK FRONT SEAT RH 3W3959764 | – | – | Ieškoti |
| 22 | WASHER PLAIN M6 UM22706Z | – | – | Ieškoti |
