Bentley Azure battery – schema ir OEM kodai
Electrical · 21 pozicija · 0 skelbimų

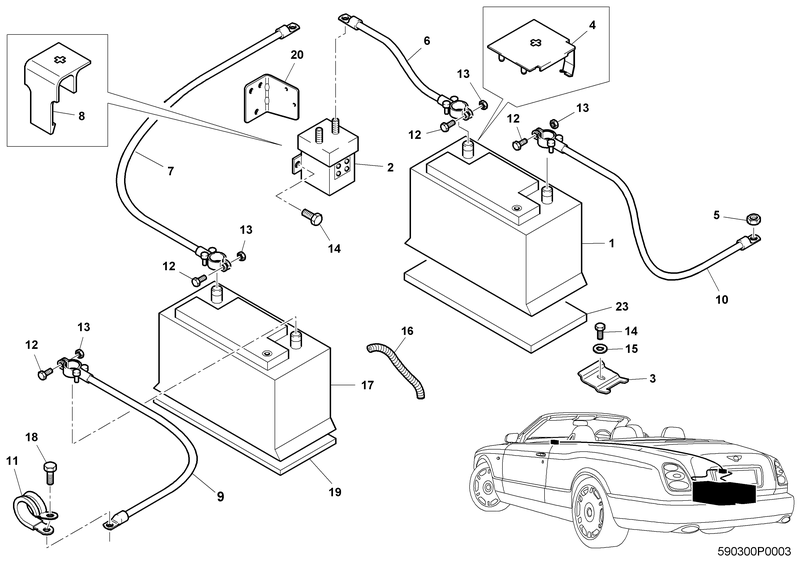

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 17 | BATTERY MAIN SYSTEMS (66AH) PM32555PB | – | – | Ieškoti |
| 1 | BATTERY STARTER 55 AH PM30780PB | – | – | Ieškoti |
| 12 | BOLT BATTERY TERMINAL UD70664 | – | – | Ieškoti |
| 14 | BOLT M8 X 1.25 X 20MM LONG PE25029PA | – | – | Ieškoti |
| 20 | BRACKET MOUNTING SOLENOID PR116648PA | – | – | Ieškoti |
| 9 | CABLE BATTERY NEGATIVE LH PM115527PA | – | – | Ieškoti |
| 10 | CABLE BATTERY NEGATIVE RH PM114879PA | – | – | Ieškoti |
| 7 | CABLE BATTERY POSITIVE LH BATTERY TO SOLENOID PR114881PA | – | – | Ieškoti |
| 6 | CABLE BATTERY POSITIVE RH BATTERY TO SOLENOID PR114880PA | – | – | Ieškoti |
| 3 | CLAMP BATTERY PM30781PC | – | – | Ieškoti |
| 4 | COVER BATTERY POST POSITIVE PM26477PA | – | – | Ieškoti |
| 8 | COVER STUDS SOLENOID PM26478PA | – | – | Ieškoti |
| 11 | HOLDING CLIP D1-12.0X20 N90799801 | – | – | Ieškoti |
| 19 | MAT ANTI SLIP BATTERY (55 AH) PM114023PA | – | – | Ieškoti |
| 23 | MAT ANTI SLIP BATTERY (66 AH) PM114024PA | – | – | Ieškoti |
| 13 | NUT BATTERY TERMINAL UD70663 | – | – | Ieškoti |
| 5 | NUT HEX WFLANGE M8 N02300313 | – | – | Ieškoti |
| 18 | SCREW PAN HEAD M6 X 16MM LONG PA30218PA | – | – | Ieškoti |
| 2 | SOLENOID SWITCH 100A PM26476PA | – | – | Ieškoti |
| 16 | VENT PIPE BATTERY 3W0915531A | – | – | Ieškoti |
| 15 | WASHER PLAIN M8 UM20224Z | – | – | Ieškoti |
