Bentley Azure interior trim & fittings, 2 dr – schema ir OEM kodai
Rear Quarter. 2 Door · 34 pozicijos · 0 skelbimų

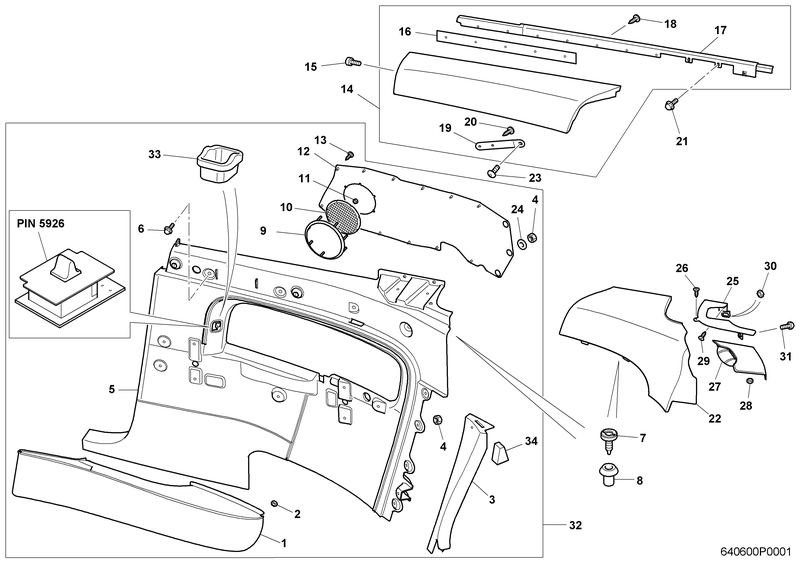

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY ARMREST REAR QUARTER LH PQ114775PA | – | – | Ieškoti |
| 1 | ASSY ARMREST REAR QUARTER RH PQ114774PA | – | – | Ieškoti |
| 12 | ASSY INSERT PANEL REAR QUARTER LH 3Z7867081 | – | – | Ieškoti |
| 12 | ASSY INSERT PANEL REAR QUARTER RH 3Z7867082 | – | – | Ieškoti |
| 3 | ASSY REAR QUARTER EXTENSION LH 3Z7863171 | – | – | Ieškoti |
| 3 | ASSY REAR QUARTER EXTENSION RH 3Z7863172 | – | – | Ieškoti |
| 25 | ASSY SUPPORT C FLAP LH PN116989PA | – | – | Ieškoti |
| 25 | ASSY SUPPORT C FLAP RH PN116990PA | – | – | Ieškoti |
| 22 | ASSY TRIM CORNER PANEL REAR QUARTER LH PQ114795PA | – | – | Ieškoti |
| 22 | ASSY TRIM CORNER PANEL REAR QUARTER RH PQ114800PA | – | – | Ieškoti |
| 32 | ASSY TRIM PANEL REAR QUARTER LH PQ114789PA | – | – | Ieškoti |
| 32 | ASSY TRIM PANEL REAR QUARTER RH PQ114792PA | – | – | Ieškoti |
| 27 | ASSY TRIM SEATBELT COVER REAR SEAT LH PW114629PA | – | – | Ieškoti |
| 27 | ASSY TRIM SEATBELT COVER REAR SEAT RH PW114594PA | – | – | Ieškoti |
| 14 | ASSY WAISTRAIL REAR QUARTER LH 3Z4867041C | – | – | Ieškoti |
| 14 | ASSY WAISTRAIL REAR QUARTER LH 3Z4867041B | – | – | Ieškoti |
| 14 | ASSY WAISTRAIL REAR QUARTER LH PQ114803PA | – | – | Ieškoti |
| 14 | ASSY WAISTRAIL REAR QUARTER LH 3Z4867041D | – | – | Ieškoti |
| 14 | ASSY WAISTRAIL REAR QUARTER RH 3Z4867042D | – | – | Ieškoti |
| 14 | ASSY WAISTRAIL REAR QUARTER RH 3Z4867042B | – | – | Ieškoti |
| 14 | ASSY WAISTRAIL REAR QUARTER RH 3Z4867042C | – | – | Ieškoti |
| 14 | ASSY WAISTRAIL REAR QUARTER RH PQ114808PA | – | – | Ieškoti |
| 9 | BEZEL SPEAKER CHROMED REAR QUARTER PQ116460PA | – | – | Ieškoti |
| 33 | BEZEL WINDOW LIFT SWITCH PV112142PA | – | – | Ieškoti |
| 19 | BRACKET WAISTRAIL REAR QUARTER PQ116123PA | – | – | Ieškoti |
| 17 | FINISHER WAISTRAIL REAR QUARTER LH PQ114807PB | – | – | Ieškoti |
| 17 | FINISHER WAISTRAIL REAR QUARTER RH PQ114812PB | – | – | Ieškoti |
| 34 | FOAM SPACER REAR QUARTER EXTENSION 3Z7863568 | – | – | Ieškoti |
| 16 | INSEAL X 25MM X 1.5MM X 4.8M LONG UB75620 | – | – | Ieškoti |
| 5 | MOULDING TRIM PANEL REAR QUARTER LH PQ114791PA | – | – | Ieškoti |
| 5 | MOULDING TRIM PANEL REAR QUARTER RH PQ114794PA | – | – | Ieškoti |
| 28 | NUT HEX FLANGE M6 N90215801 | – | – | Ieškoti |
| 30 | NUT PLAIN M5 UM20976Z | – | – | Ieškoti |
| 4 | NUT WHIZTITE M5 X 0.8 PT24658PA | – | – | Ieškoti |
| 2 | NUT WHIZTITE M5 X 0.8 PT24658PA | – | – | Ieškoti |
| 6 | SCREW FLANGE HEAD M6 X14MM LONG PF22518PA | – | – | Ieškoti |
| 18 | SCREW FLANGE HEAD NO.4 X .375 IN. LONG UA7102Z | – | – | Ieškoti |
| 13 | SCREW FLANGE HEAD NO.8 X .500 IN. LONG UA9321Z | – | – | Ieškoti |
| 21 | SCREW HEX SOCKET M4 X 12 N10621601 | – | – | Ieškoti |
| 15 | SCREW HEX SOCKET M4 X 12 N10621601 | – | – | Ieškoti |
| 26 | SCREW HEX SOCKET M4 X 8.5 N90999801 | – | – | Ieškoti |
| 29 | SCREW HEX SOCKET M6 X 12 N10406501 | – | – | Ieškoti |
| 31 | SCREW HEX SOCKET M6 X 12 N10406501 | – | – | Ieškoti |
| 23 | SETSCREW BUTTON HEAD M6 X 20MM LONG PP32605PA | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER PQ116459PA | – | – | Ieškoti |
| 8 | STUD HOLDER TRIM PANELS GREEN PP28903PB | – | – | Ieškoti |
| 7 | TRIM CLIP FIXED RED PP32162PA | – | – | Ieškoti |
| 24 | WASHER SPM1795 | – | – | Ieškoti |
| 11 | WASHER STARLOCK .062 IN. NOMINAL UB42377 | – | – | Ieškoti |
| 20 | WOODSCREW CSK HEAD NO.4 X .375 IN. LONG UA8003SC | – | – | Ieškoti |
