Bentley S Long Wheelbase rear door trim & fittings – schema ir OEM kodai

Body · 12 pozicijų · 0 skelbimų

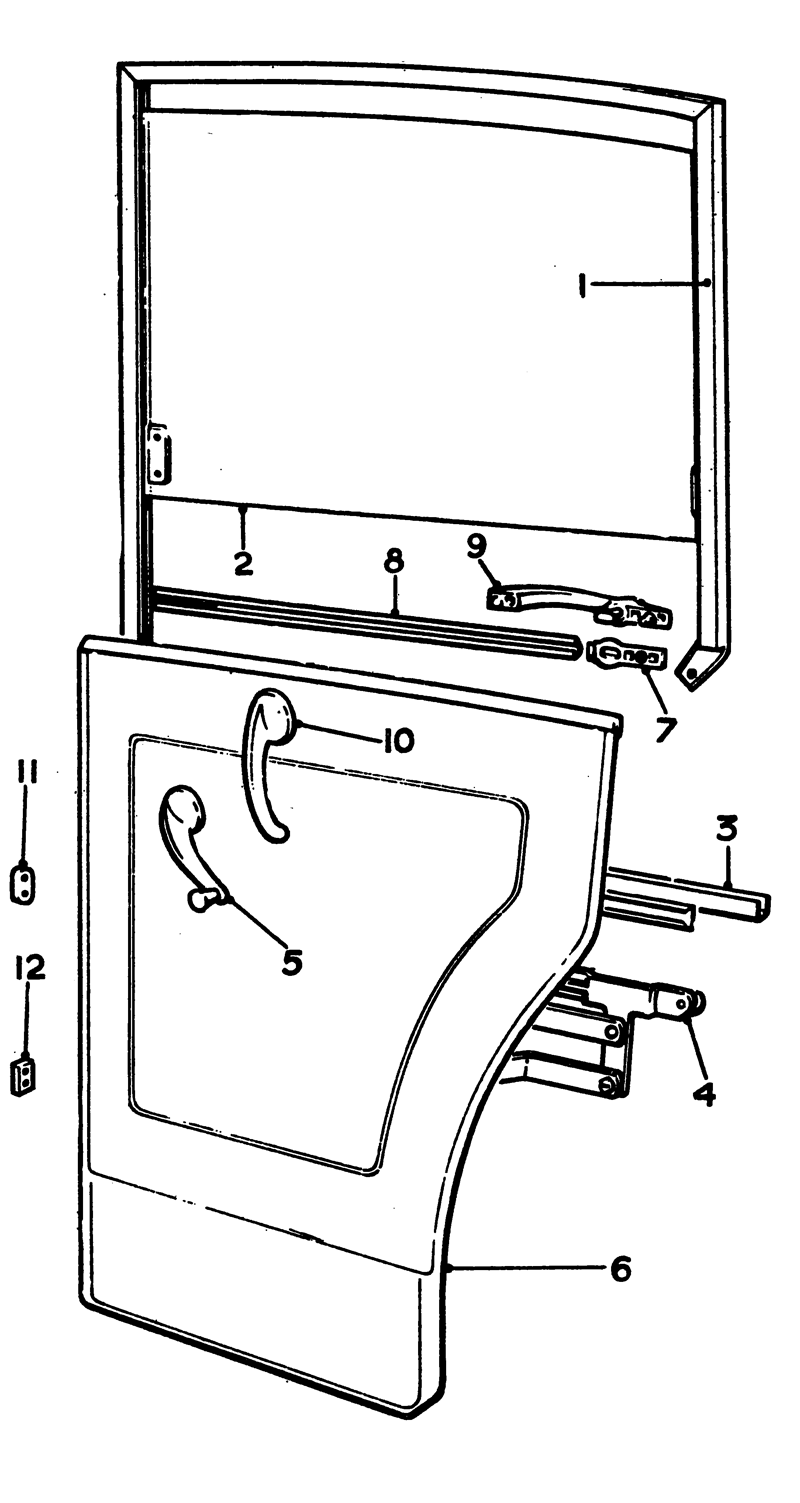

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
9	ASSY HANDLE DOOR EXTERIOR RELEASE UB1866	–	–	Ieškoti
10	ASSY HANDLE DOOR INTERIOR RELEASE RB2418	–	–	Ieškoti
5	ASSY HANDLE WINDOW REGULATOR UB1012	–	–	Ieškoti
3	ASSY LOWER GLASS CHANNEL REAR DOOR LH UB1227	–	–	Ieškoti
3	ASSY LOWER GLASS CHANNEL REAR DOOR RH UB1226	–	–	Ieškoti
9	ASSY PUSH BUTTON EXTERIOR DOOR HANDLE UB1868	–	–	Ieškoti
4	ASSY REGULATOR DOOR WINDOW LIFT REAR LH UB1019	–	–	Ieškoti
4	ASSY REGULATOR DOOR WINDOW LIFT REAR RH UB1020	–	–	Ieškoti
6	ASSY TRIM PAD REAR DOOR LH UW2007SA	–	–	Ieškoti
6	ASSY TRIM PAD REAR DOOR LH UW1827SA	–	–	Ieškoti
6	ASSY TRIM PAD REAR DOOR RH UW2006SA	–	–	Ieškoti
6	ASSY TRIM PAD REAR DOOR RH UW1828SA	–	–	Ieškoti
1	ASSY WINDOW FRAME REAR DOOR LH UB2697	–	–	Ieškoti
1	ASSY WINDOW FRAME REAR DOOR RH UB2698	–	–	Ieškoti
12	BLANKING GROMMET MANUAL WINDOW LIFT UB2547	–	–	Ieškoti
12	BUFFER STOP REAR DOOR UB1406	–	–	Ieškoti
2	DROP GLASS REAR DOOR UB2735	–	–	Ieškoti
2	DROP GLASS REAR DOOR PLAIN UB2799	–	–	Ieškoti
2	DROP GLASS REAR DOOR SUNDYM UB2800	–	–	Ieškoti
2	DROP GLASS REAR DOOR SUNDYM UB2819	–	–	Ieškoti
10	FILTER RETAINER REAR DOOR DRAIN UB1858	–	–	Ieškoti
10	FILTER RETAINER REAR DOOR DRAIN LH UB1857	–	–	Ieškoti
10	FILTER RETAINER REAR DOOR DRAIN RH UB1888	–	–	Ieškoti
9	GROMMET UB1133	–	–	Ieškoti
10	HOUSING PRIVATE LOCK FRONT DOOR UB2349	–	–	Ieškoti
7	MOULDING REAR DOOR LH UB1061	–	–	Ieškoti
7	MOULDING REAR DOOR RH UB1060	–	–	Ieškoti
8	MOULDING STRIP REAR DOOR UB2440	–	–	Ieškoti
9	NUT 2BA K4006Z	–	–	Ieškoti
10	POP RIVET DOME HEAD .125 IN. X .290 IN. LONG KB13870	–	–	Ieškoti
12	POP RIVET DOMED HEAD .125 IN. X .230 IN. LONG KB13803	–	–	Ieškoti
10	PRIVATE LOCK FRONT DOOR LH UB2460	–	–	Ieškoti
10	PRIVATE LOCK FRONT DOOR LH UB2355	–	–	Ieškoti
10	PRIVATE LOCK FRONT DOOR RH UB2461	–	–	Ieškoti
10	PRIVATE LOCK FRONT DOOR RH UB2356	–	–	Ieškoti
6	RETAINER TRIM CLIP UB2302	–	–	Ieškoti
8	RETAINING CLIP MOULDING UB1573	–	–	Ieškoti
1	RIVET BIFURCATED .125 IN. X .500 IN. LONG CS35082Z	–	–	Ieškoti
11	SCREW RAISED CSK HEAD NO.4 X .625 IN. LONG CS31183SS	–	–	Ieškoti
10	SCREW WEATHERSHIELD PRIVATE LOCK FRONT DOOR UB2354	–	–	Ieškoti
1	SEAL DROP GLASS CHANNEL DOOR UB2319	–	–	Ieškoti
1	SEAL DROP GLASS CHANNEL REAR DOOR UPPER UB2816	–	–	Ieškoti
1	SEAL DROP GLASS CHANNEL REAR DOOR UPPER UB2722	–	–	Ieškoti
9	SETSCREW 2BA X .550 IN. LONG KC172Z	–	–	Ieškoti
1	SPONGE CORD DROP GLASS CHANNEL REAR DOOR UPPER UB2817	–	–	Ieškoti
11	STRIKER PLATE INTERIOR LIGHT SWITCH (.128 IN.) UB1680	–	–	Ieškoti
11	STRIKER PLATE INTERIOR LIGHT SWITCH (.192 IN.) UB1678	–	–	Ieškoti
11	STRIKER PLATE INTERIOR LIGHT SWITCH (.252 IN.) UB1679	–	–	Ieškoti
10	TORSION SPRING WEATHERSHIELD PRIVATE LOCK FRONT DOOR UB2351	–	–	Ieškoti
6	TRIM CLIP UB2301	–	–	Ieškoti
5	VAPOUR BARRIER REAR DOOR UW1653	–	–	Ieškoti
9	WASHER ALUMINIUM .875 IN. KB1092	–	–	Ieškoti
5	WASHER ALUMINIUM 1.125 IN. KB1094	–	–	Ieškoti
9	WASHER PLAIN .200 IN. I.D. K4404Z	–	–	Ieškoti
10	WASHER PLAIN 6BA K4450Z	–	–	Ieškoti
10	WEATHERSHIELD PRIVATE LOCK FRONT DOOR UB2352	–	–	Ieškoti
