Bentley S Long Wheelbase heater vacuum pipes & hoses – schema ir OEM kodai
Electrical System · 35 pozicijos · 0 skelbimų

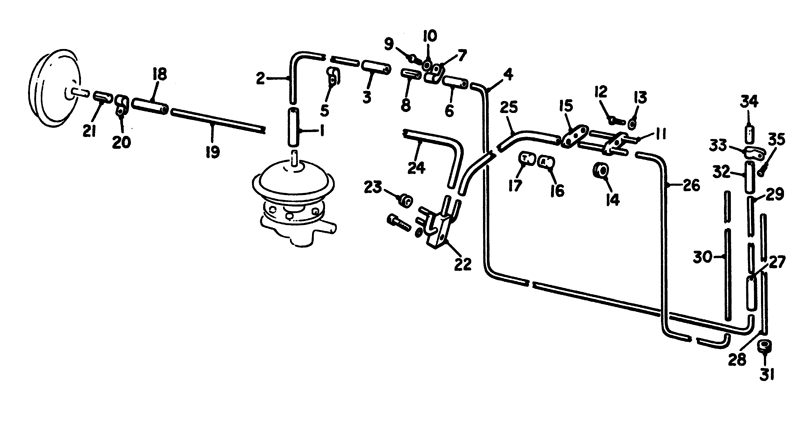

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 8 | BUSH VACUUM PIPE CLIP UD1793 | – | – | Ieškoti |
| 21 | BUSH VACUUM PIPE CLIP UD1793 | – | – | Ieškoti |
| 34 | BUSH VACUUM PIPE CLIP UD1793 | – | – | Ieškoti |
| 5 | CLIP RE3529 | – | – | Ieškoti |
| 14 | GROMMET UD1399 | – | – | Ieškoti |
| 23 | GROMMET UD1399 | – | – | Ieškoti |
| 31 | GROMMET UD1399 | – | – | Ieškoti |
| 11 | HOSE CONNECTION 2X2 WAY UD1378 | – | – | Ieškoti |
| 22 | HOSE CONNECTION 5 WAY UD1383 | – | – | Ieškoti |
| 15 | IDENTIFICATION PLATE HEATER & DEMISTER PIPES UD1530 | – | – | Ieškoti |
| 16 | IDENTIFICATION SLEEVE HEATER & DEMISTER PIPES (A) UD1531 | – | – | Ieškoti |
| 17 | IDENTIFICATION SLEEVE HEATER & DEMISTER PIPES (T) UD1532 | – | – | Ieškoti |
| 7 | P CLIP (.312 IN.) UG1431 | – | – | Ieškoti |
| 20 | P CLIP (.312 IN.) UG1431 | – | – | Ieškoti |
| 33 | P CLIP (.312 IN.) UG1431 | – | – | Ieškoti |
| 9 | SCREW CHEESE HEAD 2BA X .375 IN. LONG K1907Z | – | – | Ieškoti |
| 35 | SCREW PAN HEAD NO.10 X .500 IN. LONG CS31080Z | – | – | Ieškoti |
| 12 | SETSCREW 2BA X .650 IN. LONG KC173Z | – | – | Ieškoti |
| 18 | VACUUM HOSE .156 IN. I.D. X 1.750 IN. LONG UD1397 | – | – | Ieškoti |
| 6 | VACUUM HOSE .156 IN. I.D. X 1.750 IN. LONG UD1397 | – | – | Ieškoti |
| 1 | VACUUM HOSE .156 IN. I.D. X 1.750 IN. LONG UD1397 | – | – | Ieškoti |
| 27 | VACUUM HOSE .156 IN. I.D. X 1.750 IN. LONG UD1397 | – | – | Ieškoti |
| 25 | VACUUM HOSE 5 WAY TO DASH UD4031 | – | – | Ieškoti |
| 32 | VACUUM HOSE CONNECTOR TO SUCTION VALVE (30.000 IN.) UD1504 | – | – | Ieškoti |
| 24 | VACUUM HOSE MANIFOLD TO HEATER & DEMISTER SWITCH (12.000 IN.) UD1726 | – | – | Ieškoti |
| 3 | VACUUM HOSE WATER TAP TO DASH HEATER UD4001 | – | – | Ieškoti |
| 2 | VACUUM PIPE HEATER CONTROL UD4000 | – | – | Ieškoti |
| 26 | VACUUM PIPE HEATER CONTROL TOEBOARD TO 5 WAY DASH UD4054 | – | – | Ieškoti |
| 19 | VACUUM PIPE HEATER CONTROL TOEBOARD TO FLAP VALVE UD4052 | – | – | Ieškoti |
| 4 | VACUUM PIPE HEATER CONTROL WATER TAP TO TOEBOARD UD4053 | – | – | Ieškoti |
| 28 | VACUUM PIPE TOEBOARD TO DIVISION BUTTERFLY VALVE UD4051 | – | – | Ieškoti |
| 30 | VACUUM PIPE TOEBOARD TO DIVISION HEATER SWITCH UD4049 | – | – | Ieškoti |
| 29 | VACUUM PIPE TOEBOARD TO DIVISION WATER TAP UD4050 | – | – | Ieškoti |
| 13 | WASHER PLAIN .200 IN. I.D. K4404Z | – | – | Ieškoti |
| 10 | WASHER PLAIN .200 IN. I.D. K4404Z | – | – | Ieškoti |
