Bentley S Long Wheelbase rear compartment heater ducting – schema ir OEM kodai
Electrical System · 16 pozicijų · 0 skelbimų

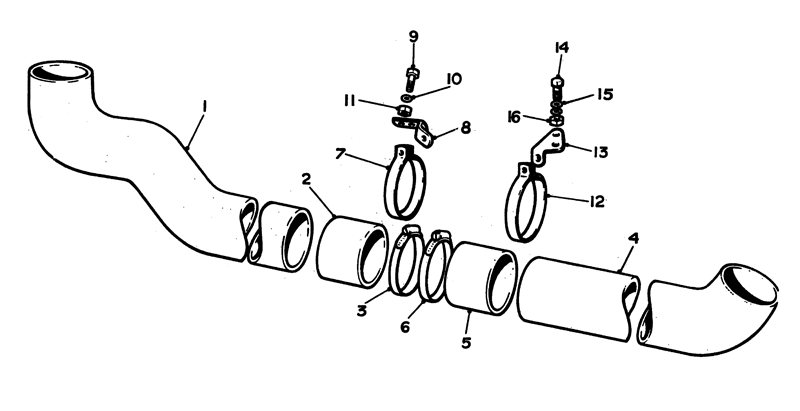

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 9 | BOLT .250 UNF X .500 IN. LONG UA102Z | – | – | Ieškoti |
| 14 | BOLT .250 UNF X .625 IN. LONG UA103Z | – | – | Ieškoti |
| 8 | BRACKET REAR AIR CONDITIONING DUCT TO NO.1 BODY MOUNT UD3619 | – | – | Ieškoti |
| 13 | BRACKET REAR AIR CONDITIONING DUCT TO NO.2 BODY MOUNT UD3618 | – | – | Ieškoti |
| 12 | CLIP REAR AIR CONDITIONING DUCT UD3617 | – | – | Ieškoti |
| 7 | CLIP REAR AIR CONDITIONING DUCT UD3617 | – | – | Ieškoti |
| 1 | DUCT REAR COMPARTMENT AIR CONDITIONING FRONT UD3611 | – | – | Ieškoti |
| 4 | DUCT REAR COMPARTMENT AIR CONDITIONING REAR UD3612 | – | – | Ieškoti |
| 6 | HOSE CLIP 3.750/4.500 IN. UD4074 | – | – | Ieškoti |
| 3 | HOSE CLIP 3.750/4.500 IN. UD4074 | – | – | Ieškoti |
| 11 | NUT PLAIN .250 UNF UA301Z | – | – | Ieškoti |
| 16 | NUT PLAIN .250 UNF UA301Z | – | – | Ieškoti |
| 5 | SLEEVE REAR AIR CONDITIONING DUCT UD3637 | – | – | Ieškoti |
| 2 | SLEEVE REAR AIR CONDITIONING DUCT UD3637 | – | – | Ieškoti |
| 10 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 15 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
