Bentley Corniche Drophead panels excluding doors (other than usa and canada) – schema ir OEM kodai

Body · 24 pozicijos · 0 skelbimų

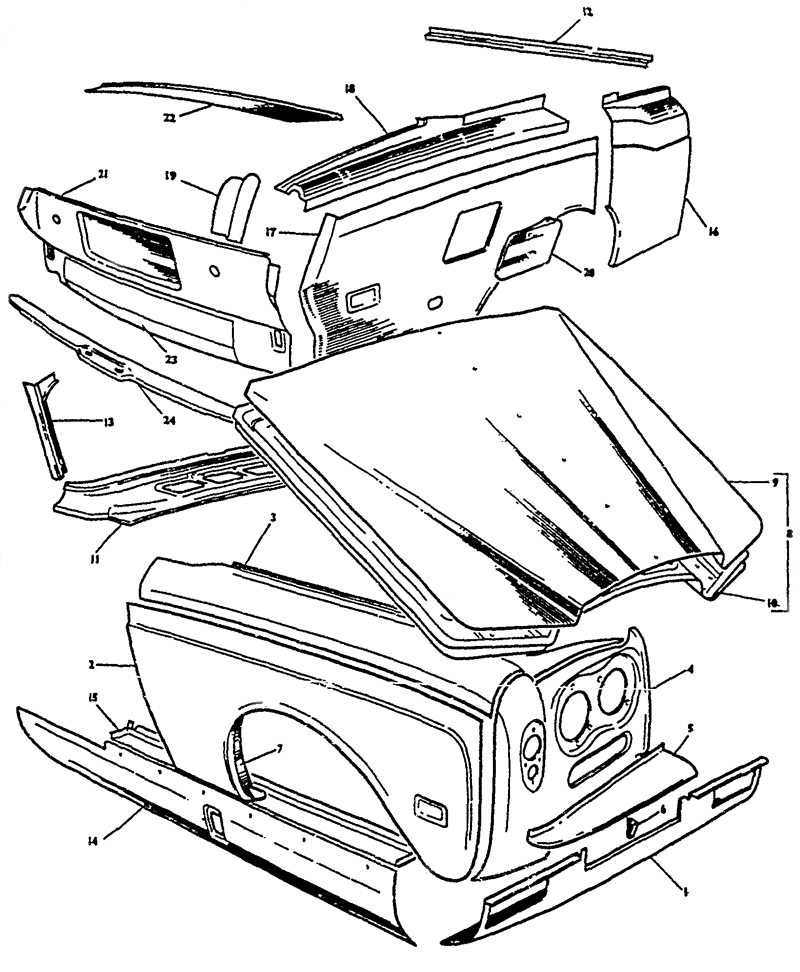

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
8	ASSY BONNET BENTLEY 312610115	–	–	Ieškoti
8	ASSY BONNET ROLLS-ROYCE 312600018	–	–	Ieškoti
20	ASSY BUMP STOP FUEL FILLER DOOR UB14790	–	–	Ieškoti
1	ASSY CLOSING PANEL FRONT PW572	–	–	Ieškoti
2	ASSY FRONT WING LH PW509	–	–	Ieškoti
2	ASSY FRONT WING LH PW54117CS	–	–	Ieškoti
2	ASSY FRONT WING LH PW509CS	–	–	Ieškoti
2	ASSY FRONT WING LH PW54117	–	–	Ieškoti
2	ASSY FRONT WING RH PW54116	–	–	Ieškoti
2	ASSY FRONT WING RH PW508	–	–	Ieškoti
2	ASSY FRONT WING RH PW54116CS	–	–	Ieškoti
2	ASSY FRONT WING RH PW508CS	–	–	Ieškoti
20	ASSY FUEL FILLER DOOR UB14778	–	–	Ieškoti
20	ASSY MOUNTING BRACKET FUEL FILLER DOOR LOWER UB14786	–	–	Ieškoti
20	ASSY MOUNTING BRACKET FUEL FILLER DOOR UPPER UB14784	–	–	Ieškoti
21	ASSY PANEL REAR SKIRT PW55537	–	–	Ieškoti
21	ASSY PANEL REAR SKIRT PW5846	–	–	Ieškoti
16	ASSY REAR WING LH PW54127	–	–	Ieškoti
16	ASSY REAR WING LH PW5125	–	–	Ieškoti
16	ASSY REAR WING RH PW54128	–	–	Ieškoti
16	ASSY REAR WING RH PW5124	–	–	Ieškoti
14	ASSY SILL LH PW513	–	–	Ieškoti
14	ASSY SILL RH PW512	–	–	Ieškoti
12	ASSY WINDSCREEN HEADER RAIL PW5144	–	–	Ieškoti
5	FAIRING FRONT BUMPER LH PW50127	–	–	Ieškoti
5	FAIRING FRONT BUMPER RH PW50126	–	–	Ieškoti
24	FAIRING REAR BUMPER PW576	–	–	Ieškoti
7	FLANGE UNDERSHEET ASSEMBLY LH PW581	–	–	Ieškoti
7	FLANGE UNDERSHEET ASSEMBLY RH PW580	–	–	Ieškoti
4	FRONT PANEL ASSEMBLY PW591	–	–	Ieškoti
4	FRONT PANEL ASSEMBLY PW590	–	–	Ieškoti
20	NUT PLAIN 2BA X4006Z	–	–	Ieškoti
20	PACKING PIECE FUEL FILLER DOOR UB14794	–	–	Ieškoti
13	PANEL A POST UPPER LH PW51389	–	–	Ieškoti
13	PANEL A POST UPPER RH PW51388	–	–	Ieškoti
23	PANEL BODY REAR LOWER PW54782	–	–	Ieškoti
9	PANEL BONNET 112610133	–	–	Ieškoti
9	PANEL BONNET OUTER ROLLS-ROYCE 112600014	–	–	Ieškoti
16	PANEL FORWARD SECTION REAR WING LH PW50201	–	–	Ieškoti
16	PANEL FORWARD SECTION REAR WING RH PW50200	–	–	Ieškoti
19	PANEL LAMP SECTION REAR WING LH PW50207	–	–	Ieškoti
19	PANEL LAMP SECTION REAR WING RH PW50206	–	–	Ieškoti
17	PANEL REAR SECTION REAR WING LH PW54111	–	–	Ieškoti
17	PANEL REAR SECTION REAR WING RH PW54110	–	–	Ieškoti
17	PANEL REARWARD SECTION REAR WING LH PW50203	–	–	Ieškoti
17	PANEL REARWARD SECTION REAR WING RH PW50202	–	–	Ieškoti
11	PANEL SCUTTLE TOP ASSEMBLY PW5396	–	–	Ieškoti
22	PANEL TONNEAU PW51312	–	–	Ieškoti
18	PANEL TOP SECTION REAR WING LH PW50205	–	–	Ieškoti
18	PANEL TOP SECTION REAR WING RH PW50204	–	–	Ieškoti
10	REINFORCEMENT ASSEMBLY 312600175	–	–	Ieškoti
10	REINFORCEMENT ASSEMBLY 312610114	–	–	Ieškoti
24	SCREW PAN HEAD 2BA X .625 IN. LONG CS30543Z	–	–	Ieškoti
20	SETSCREW 2BA X 625 IN. LONG UA1551Z	–	–	Ieškoti
2	SIDE PANEL FRONT WING LH PW54109	–	–	Ieškoti
2	SIDE PANEL FRONT WING LH PW50121	–	–	Ieškoti
2	SIDE PANEL FRONT WING RH PW54108	–	–	Ieškoti
2	SIDE PANEL FRONT WING RH PW50120	–	–	Ieškoti
6	SUPPORT BRACKET FRONT BUMPER FAIRING LH PW50241	–	–	Ieškoti
6	SUPPORT BRACKET FRONT BUMPER FAIRING RH PW50240	–	–	Ieškoti
3	TOP PANEL FRONT WING LH PW50125	–	–	Ieškoti
3	TOP PANEL FRONT WING RH PW50124	–	–	Ieškoti
15	TOP PANEL SILL LH PW50083	–	–	Ieškoti
15	TOP PANEL SILL RH PW50082	–	–	Ieškoti
20	VERTICAL STOP FUEL FILLER DOOR UB14789	–	–	Ieškoti
20	WASHER PLAIN 2BA X4405Z	–	–	Ieškoti
20	WASHER THICK .185 IN. I.D. UA6101Z	–	–	Ieškoti
