Bentley Corniche Drophead interior electrical fittings – schema ir OEM kodai

Electrical System · 57 pozicijos · 0 skelbimų

Schema

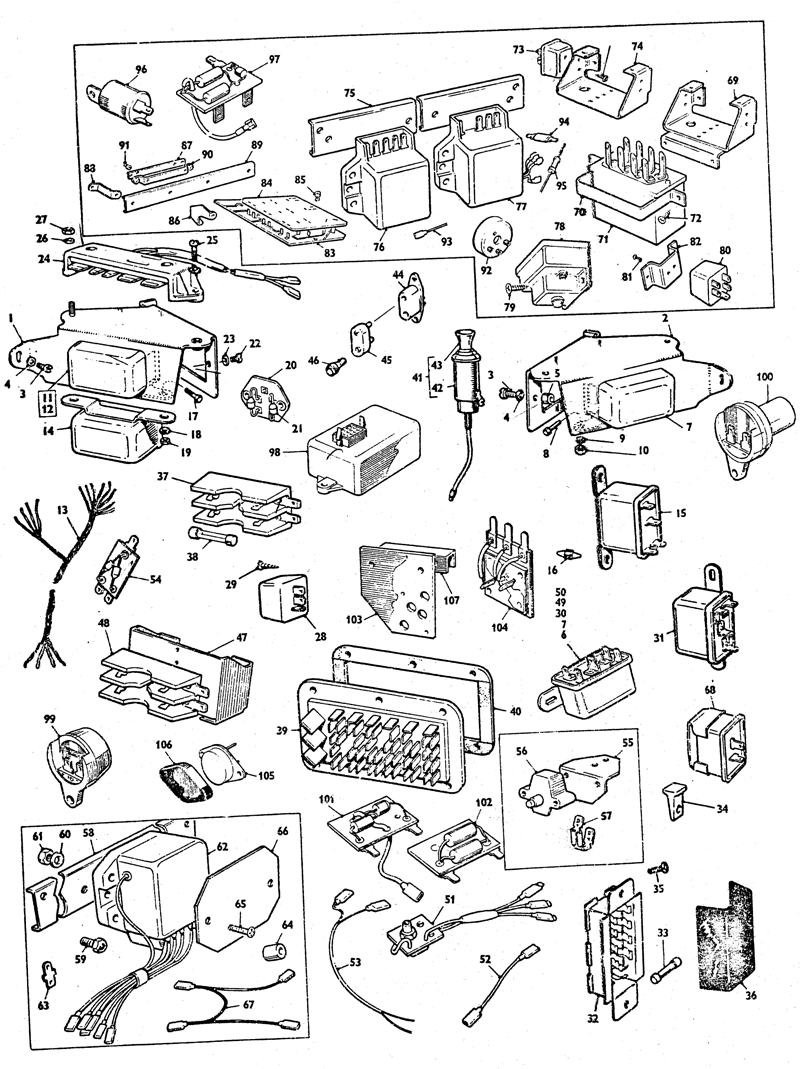

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
24	AMMETER SHUNT UD18802	–	–	Ieškoti
28	AMPLIFIER COOLANT LEVEL INDICATOR UD14927	–	–	Ieškoti
41	ASSY CIGAR LIGHTER UD12427	–	–	Ieškoti
12	ASSY DIMMING RELAY UD14388	–	–	Ieškoti
20	ASSY DIODE & RESISTOR SHUNT MOUNTING BRACKET UD16606	–	–	Ieškoti
20	ASSY DIODE & RESISTOR SHUNT MOUNTING BRACKET UD17339	–	–	Ieškoti
54	ASSY DIODE AIR CONDITIONING CHANGE OVER CIRCUIT UD17111	–	–	Ieškoti
51	ASSY DIODE IGNITION KEY WARNING UD17597	–	–	Ieškoti
51	ASSY DIODE SEAT BELT & KEY WARNING UD18420	–	–	Ieškoti
32	ASSY FUSE CARRIER SIDE & TAIL LAMPS UD13860	–	–	Ieškoti
52	ASSY LINK CABLE IGNITION KEY WARNING RELAY UD16949	–	–	Ieškoti
13	ASSY LINK LOOM FUEL WARNING LIGHT DIMMER UD16179	–	–	Ieškoti
53	ASSY LINK LOOM IGNITION KEY WARNING UD17598	–	–	Ieškoti
2	ASSY MOUNTING BRACKET SHUNT LH UB13593	–	–	Ieškoti
1	ASSY MOUNTING BRACKET SHUNT RH UB13592	–	–	Ieškoti
24	ASSY SHUNT UD11463	–	–	Ieškoti
47	BRACKET FUSE HOLDER UD17125	–	–	Ieškoti
33	CARTRIDGE FUSE 10A UD11539	–	–	Ieškoti
38	CARTRIDGE FUSE 25A UD14545	–	–	Ieškoti
36	COVER FUSE CARRIER SIDE & TAIL LAMPS UD13879	–	–	Ieškoti
21	DIODE INTERIOR LIGHT CIRCUIT UD11476	–	–	Ieškoti
51	DISTANCE PIECE UD16834	–	–	Ieškoti
30	DISTANCE TUBE UB13666	–	–	Ieškoti
47	DRILLSCREW DURADYNE NO.8 X .500 IN. LONG UA8812Z	–	–	Ieškoti
31	DRILLSCREW DURADYNE NO.8 X .500 IN. LONG UA8812Z	–	–	Ieškoti
34	EXTRACTOR GLASS FUSES UD11668	–	–	Ieškoti
16	FLEXIBLE MOUNT RELAY UD15257	–	–	Ieškoti
48	FUSE HOLDER DOUBLE UD13741	–	–	Ieškoti
37	FUSE HOLDER DOUBLE UD13741	–	–	Ieškoti
43	KNOB & ELEMENT CIGAR LIGHTER UD5893	–	–	Ieškoti
55	MOUNTING BRACKET THERMAL CUTOUT CENTRAL DOOR LOCKING UD17611	–	–	Ieškoti
5	NUT FASTEX UD11266	–	–	Ieškoti
30	NUT PLAIN 2BA UA11405Z	–	–	Ieškoti
5	NUT PLAIN 2BA UA11405Z	–	–	Ieškoti
10	NUT PLAIN 2BA UA11405Z	–	–	Ieškoti
19	NUT PLAIN 2BA X4006Z	–	–	Ieškoti
49	NUT PLAIN 2BA X4006Z	–	–	Ieškoti
27	NUT PLAIN 2BA X4006Z	–	–	Ieškoti
44	NUT PLAIN 5BA X4003Z	–	–	Ieškoti
51	NUT PLAIN 6BA X4002Z	–	–	Ieškoti
45	PLUG INSPECTION LAMP RD4333	–	–	Ieškoti
11	RELAY UD11472	–	–	Ieškoti
31	RELAY UD11806	–	–	Ieškoti
14	RELAY HAZARD WARNING UD13722	–	–	Ieškoti
6	RELAY MINATURE 6RA UD9270	–	–	Ieškoti
30	RELAY MINATURE 6RA UD9270	–	–	Ieškoti
49	RELAY MINATURE 6RA UD9270	–	–	Ieškoti
50	RELAY MINATURE 6RA UD9270	–	–	Ieškoti
7	RELAY MINATURE 6RA UD9270	–	–	Ieškoti
15	RELAY STOP LAMP WARNING UD13731	–	–	Ieškoti
40	SCREW BINDING HEAD 2BA X .500 IN. LONG CS30542Z	–	–	Ieškoti
22	SCREW CHEESE HEAD 2BA X .250 IN. LONG X1901Z	–	–	Ieškoti
3	SCREW CHEESE HEAD 2BA X .375 IN. LONG X1907Z	–	–	Ieškoti
25	SCREW CHEESE HEAD 2BA X .625 IN. LONG X1913Z	–	–	Ieškoti
44	SCREW CHEESE HEAD 3BA X .300 IN. LONG X1801	–	–	Ieškoti
51	SCREW CHEESE HEAD 6BA X .875 IN. LONG UA10699Z	–	–	Ieškoti
55	SCREW FLANGE HEAD NO.4 X .250 IN. LONG UA7101Z	–	–	Ieškoti
35	SCREW PAN HEAD 4BA X .250 IN. LONG UA6841Z	–	–	Ieškoti
44	SCREW PAN HEAD 5BA X .500 IN. LONG UA6865Z	–	–	Ieškoti
29	SCREW PAN HEAD NO.4 X .375 IN. LONG UA7902Z	–	–	Ieškoti
57	SCREW PAN HEAD NO.6 X .875 IN. LONG UA7914Z	–	–	Ieškoti
48	SCREW RAISED CSK HEAD NO.4 X .375 IN. LONG UA7002Z	–	–	Ieškoti
38	SCREW RAISED CSK HEAD NO.4 X .500 IN. LONG UA7003Z	–	–	Ieškoti
3	SCREW THREAD CUTTING PAN HEAD NO.10 X .750 IN. LONG UA7384Z	–	–	Ieškoti
40	SEAL TERMINAL BLOCK UD11299	–	–	Ieškoti
17	SETSCREW 2BA X .500 IN. LONG XC178Z	–	–	Ieškoti
49	SETSCREW 2BA X .500 IN. LONG XC178Z	–	–	Ieškoti
30	SETSCREW 2BA X 1.250 IN. LONG UA1505Z	–	–	Ieškoti
8	SETSCREW 2BA X 1.375 IN. LONG UA1506Z	–	–	Ieškoti
50	SETSCREW 2BA X 1.375 IN. LONG UA1506Z	–	–	Ieškoti
42	SOCKET CIGAR LIGHTER UD12442	–	–	Ieškoti
44	SOCKET INSPECTION LAMP RD7056	–	–	Ieškoti
56	SWITCH THERMAL CUTOUT CENTRAL DOOR LOCKING UD17612	–	–	Ieškoti
39	TERMINAL BLOCK UD11275	–	–	Ieškoti
46	TERMINAL INSPECTION LAMP SOCKET D70396	–	–	Ieškoti
57	TERMINAL PIGGY BACK UD15211	–	–	Ieškoti
40	WASHER PLAIN 2BA X4404Z	–	–	Ieškoti
4	WASHER PLAIN 2BA X4404Z	–	–	Ieškoti
18	WASHER PLAIN 2BA X4404Z	–	–	Ieškoti
9	WASHER PLAIN 2BA X4404Z	–	–	Ieškoti
30	WASHER PLAIN 2BA X4404Z	–	–	Ieškoti
49	WASHER PLAIN 2BA X4404Z	–	–	Ieškoti
26	WASHER PLAIN 2BA X4404Z	–	–	Ieškoti
23	WASHER PLAIN 2BA X4452Z	–	–	Ieškoti
4	WASHER PLAIN 2BA X4452Z	–	–	Ieškoti
44	WASHER PLAIN 3BA X4446Z	–	–	Ieškoti
51	WASHER PLAIN 5BA X4401Z	–	–	Ieškoti
51	WASHER PLAIN 5BA X4402Z	–	–	Ieškoti
44	WASHER SHAKEPROOF 5BA UD10080	–	–	Ieškoti
51	WASHER SHAKEPROOF 6BA UG10742	–	–	Ieškoti
44	WASHER SPRING 3BA X9005Z	–	–	Ieškoti
