Bentley Brooklands R SWB rear passenger compartment outlet (bullseye) – schema ir OEM kodai
Air Conditioning · 23 pozicijos · 0 skelbimų

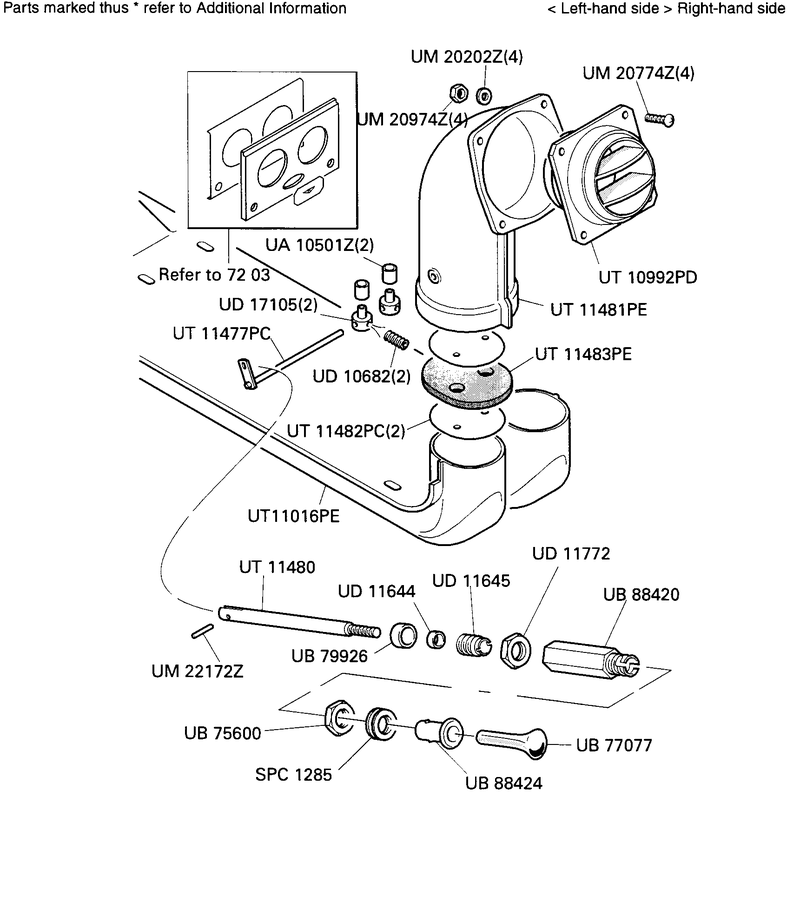

Visos Bentley Brooklands R SWB dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 16 | ADJUSTER SCREW BULLS EYE OPERATING ROD UD11645 | – | – | Ieškoti |
| 13 | ASSY AIR DUCT CENTRE CONSOLE REAR UT11016PE | – | – | Ieškoti |
| 9 | ASSY SPINDLE FLAP VALVE CENTRE CONSOLE REAR OUTLET VENT UT11477PC | – | – | Ieškoti |
| 6 | ASSY-BULLSEYE RETENTION-REAR PA30259PB | – | – | Ieškoti |
| 6 | BEZEL FACIA (80MM DIAMETER) UBG1973 | – | – | Ieškoti |
| 22 | CONTROL KNOB FACIA VENT UB77077 | – | – | Ieškoti |
| 17 | FELT RING BULLS EYE OPERATING ROD UD11644 | – | – | Ieškoti |
| 19 | FELT RING SPINDLE FACIA VENT UB79926 | – | – | Ieškoti |
| 23 | GROMMET SPC1285 | – | – | Ieškoti |
| 11 | GRUBSCREW 5BA X .250 IN. LONG UD10682 | – | – | Ieškoti |
| 11 | GRUBSCREW M4 X 8MM LONG UV31186PA | – | – | Ieškoti |
| 8 | HOUSING CENTRE CONSOLE REAR OUTLET VENT UT11481PE | – | – | Ieškoti |
| 14 | LOCK NUT ADJUSTER SCREW BULLS EYE OPERATING ROD UD11772 | – | – | Ieškoti |
| 21 | LOCK NUT SPINDLE BEARING FACIA VENT UB75600 | – | – | Ieškoti |
| 7 | MOUNTING BOSS FLAP VALVE BULLS EYE (5BA THREAD) UD17105 | – | – | Ieškoti |
| 7 | MOUNTING BOSS FLAP VALVE BULLS EYE (M4 THREAD) UV31187PB | – | – | Ieškoti |
| 3 | NUT PLAIN M3 UM20974Z | – | – | Ieškoti |
| 15 | OPERATING SPINDLE CENTRE CONSOLE REAR OUTLET VENT UT11480 | – | – | Ieškoti |
| 6 | OUTLET VENT CENTRE CONSOLE REAR UT10992PD | – | – | Ieškoti |
| 24 | RETAINER FACIA PANELS UB88424 | – | – | Ieškoti |
| 20 | ROLL PIN 2.5MM X 6MM LONG UM22172Z | – | – | Ieškoti |
| 2 | SCREW PAN HEAD M3 X 10MM LONG UM20774Z | – | – | Ieškoti |
| 10 | SEAL FLAP VALVE CENTRE CONSOLE REAR OUTLET VENT UT11483PE | – | – | Ieškoti |
| 4 | SPACER .056 IN. I.D. X .3125 IN. O.D. X .100 IN. LONG UA10501Z | – | – | Ieškoti |
| 18 | SPINDLE BEARING FACIA VENT UB88420 | – | – | Ieškoti |
| 12 | TRAPPING PLATE FLAP VALVE CENTRE CONSOLE REAR OUTLET VENT UT11482PC | – | – | Ieškoti |
| 1 | WASHER PLAIN M3 UM20202Z | – | – | Ieškoti |
