Bentley Brooklands R SWB looms & link cables – schema ir OEM kodai

Electrical · 62 pozicijos · 0 skelbimų

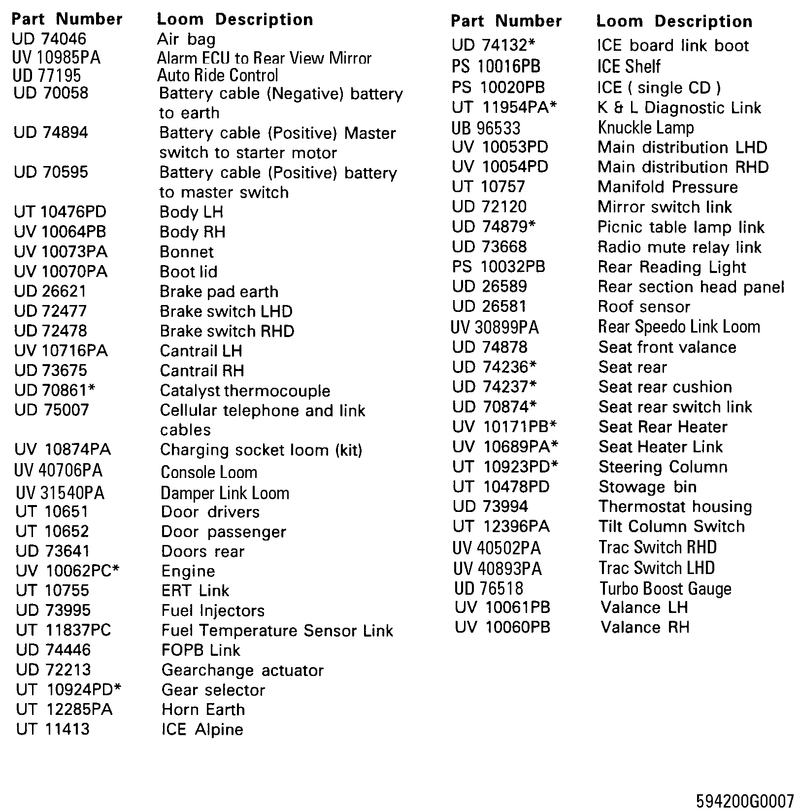

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
3	ASSY BATTERY CABLE NEGATIVE UD70058	–	–	Ieškoti
9	ASSY BATTERY CABLE POSITIVE UD70595	–	–	Ieškoti
20	ASSY BRAKE PAD EARTH CABLE UD26621	–	–	Ieškoti
33	ASSY LINK LOOM ENGINE RUN TIMER UT10755	–	–	Ieškoti
35	ASSY LINK LOOM FUEL TEMPERATURE SENSOR UT11837PC	–	–	Ieškoti
41	ASSY LINK LOOM IN CAR ENTERTAINMENT BOARD UD74132	–	–	Ieškoti
44	ASSY LINK LOOM OBD II DIAGNOSTIC CONNECTOR UT11639	–	–	Ieškoti
49	ASSY LINK LOOM PICNIC TABLE LAMP UD74879	–	–	Ieškoti
50	ASSY LINK LOOM RADIO MUTE UD73668	–	–	Ieškoti
7	ASSY LINK LOOM SEAT SWITCH REAR UD70874	–	–	Ieškoti
60	ASSY LINK LOOM TURBO BOOST GAUGE UD76518	–	–	Ieškoti
4	ASSY LOOM ADJUSTABLE REAR SEAT UD74236	–	–	Ieškoti
1	ASSY LOOM AIR BAG UD74046	–	–	Ieškoti
12	ASSY LOOM BODY LH UT10476PD	–	–	Ieškoti
22	ASSY LOOM BRAKE SWITCH LHD UD72477	–	–	Ieškoti
23	ASSY LOOM BRAKE SWITCH RHD UD72478	–	–	Ieškoti
25	ASSY LOOM CANTRAIL RH UD73675	–	–	Ieškoti
29	ASSY LOOM DOOR DRIVERS UT10651	–	–	Ieškoti
30	ASSY LOOM DOOR PASSENGER UT10652	–	–	Ieškoti
31	ASSY LOOM DOOR REAR UD73641	–	–	Ieškoti
36	ASSY LOOM FOOT OPERATED PARKING BRAKE UD74446	–	–	Ieškoti
34	ASSY LOOM FUEL INJECTORS UD73995	–	–	Ieškoti
38	ASSY LOOM GEAR SELECTOR UT10924PD	–	–	Ieškoti
37	ASSY LOOM GEAR SELECTOR ACTUATOR UD72213	–	–	Ieškoti
39	ASSY LOOM HORN EARTH UT12285PA	–	–	Ieškoti
40	ASSY LOOM IN CAR ENTERTAINMENT UT11413	–	–	Ieškoti
44	ASSY LOOM K & L DIAGNOSTIC UT11954PA	–	–	Ieškoti
45	ASSY LOOM MAIN DISTRIBUTION LHD UV40705PA	–	–	Ieškoti
46	ASSY LOOM MAIN DISTRIBUTION RHD UV40704PA	–	–	Ieškoti
47	ASSY LOOM MANIFOLD PRESSURE UT10757	–	–	Ieškoti
52	ASSY LOOM REAR HEADER PANEL UD26589	–	–	Ieškoti
5	ASSY LOOM REAR SEAT CUSHION UD74237	–	–	Ieškoti
2	ASSY LOOM SEAT VALANCE UD74878	–	–	Ieškoti
59	ASSY LOOM SPORT/TRACTION SWITCH LHD UV40893PA	–	–	Ieškoti
58	ASSY LOOM SPORT/TRACTION SWITCH RHD UV40502PA	–	–	Ieškoti
11	ASSY LOOM STEERING COLUMN UT10923PD	–	–	Ieškoti
17	ASSY LOOM STEERING COLUMN ADJUSTMENT SWITCH UT12396PA	–	–	Ieškoti
13	ASSY LOOM STOWAGE BIN UT10478PD	–	–	Ieškoti
27	ASSY LOOM TELEPHONE UD75007	–	–	Ieškoti
15	ASSY LOOM THERMOSTAT HOUSING UD73994	–	–	Ieškoti
48	ASSY MIRROR SWITCH & LOOM UD72120	–	–	Ieškoti
53	ASSY ROOF SENSOR HVAC UD26581	–	–	Ieškoti
26	ASSY THERMOCOUPLE UD70861	–	–	Ieškoti
6	BATTERY CABLE POSITIVE MASTER SWITCH TO ENGINE UD74894	–	–	Ieškoti
32	ENGINE LOOM UV10063PB	–	–	Ieškoti
32	ENGINE LOOM UV10062PC	–	–	Ieškoti
28	KIT CHARGING SOCKET & LOOM UV10874PA	–	–	Ieškoti
51	LEAD LIGHT REAR READING PS10032PB	–	–	Ieškoti
61	LINK LOOM AUTOMATIC RIDE CONTROL MODULE UD77195	–	–	Ieškoti
62	LINK LOOM FRONT SUSPENSION DAMPERS UV31540PA	–	–	Ieškoti
10	LINK LOOM HEATER SWITCHES REAR SEAT UV10689PA	–	–	Ieškoti
56	LINK LOOM READING LAMP UB96533	–	–	Ieškoti
57	LINK LOOM REAR SPEEDOMETER UV30899PA	–	–	Ieškoti
54	LOOM ALARM AERIAL UV10985PB	–	–	Ieškoti
14	LOOM BODY RH UV10064PB	–	–	Ieškoti
16	LOOM BONNET UV10073PA	–	–	Ieškoti
18	LOOM BOOT LID UV10070PA	–	–	Ieškoti
24	LOOM CANTRAIL LH UV10716PA	–	–	Ieškoti
55	LOOM CENTRE CONSOLE UV40706PA	–	–	Ieškoti
8	LOOM HEATER REAR SEAT UV10171PB	–	–	Ieškoti
43	LOOM LINK CD SINGLE PLAYER PS10020PB	–	–	Ieškoti
45	LOOM MAIN DISTRIBUTION LHD UV10053PD	–	–	Ieškoti
46	LOOM MAIN DISTRIBUTION RHD UV10054PD	–	–	Ieškoti
42	LOOM POWER AMPLIFIER BYPASS PS10016PB	–	–	Ieškoti
19	LOOM VALANCE LH UV10061PB	–	–	Ieškoti
21	LOOM VALANCE RH UV10060PB	–	–	Ieškoti
