Bentley Brooklands R SWB evap loss obd 1 system – schema ir OEM kodai

Emission Control · 19 pozicijų · 0 skelbimų

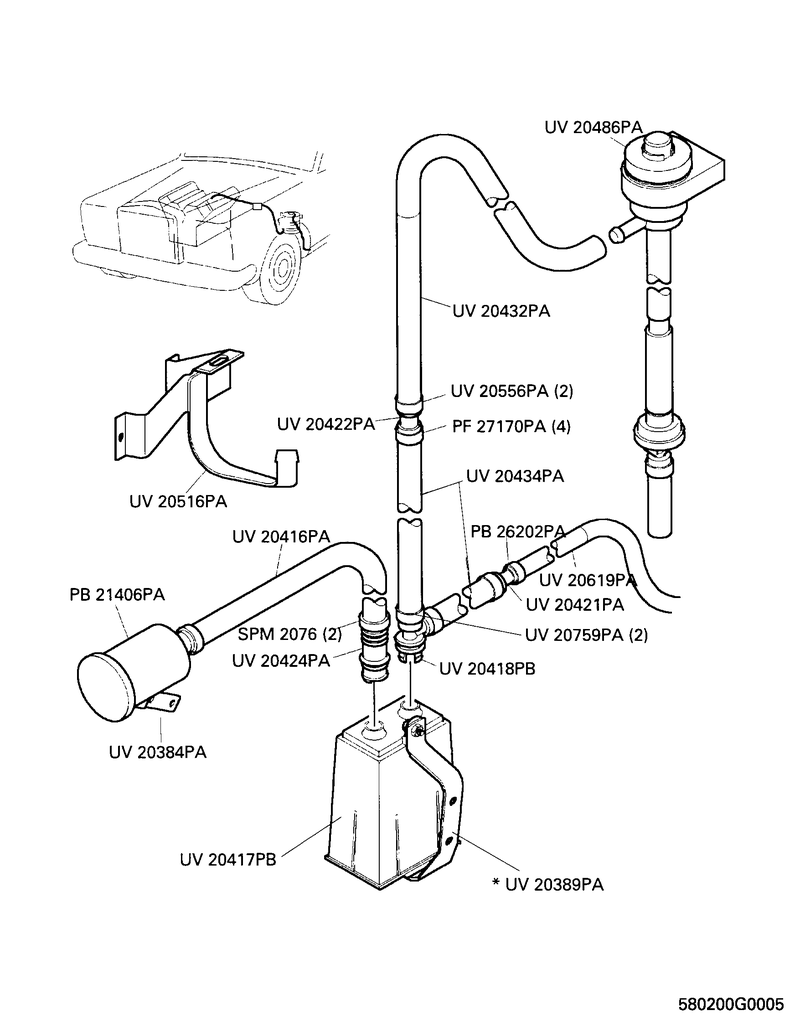

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
7	ASSY BRACKET ENGINE SIDE COVER & PURGE VALVE UV20516PA	–	–	Ieškoti
18	ASSY BRACKET EVAPORATIVE LOSS CANISTER UV40025PA	–	–	Ieškoti
18	ASSY BRACKET EVAPORATIVE LOSS CANISTER UV20389PA	–	–	Ieškoti
16	ASSY BRACKET INTAKE FILTER LEAK DETECTION PUMP UV20384PA	–	–	Ieškoti
1	ASSY PURGE CONTROL VALVE OBD I UV20486PA	–	–	Ieškoti
17	CANISTER EVAPORATIVE LOSS UV20417PB	–	–	Ieškoti
5	COBRA CLIP 168 PF27170PA	–	–	Ieškoti
15	CONNECTOR EVAPORATIVE LOSS CANISTER UV20418PB	–	–	Ieškoti
14	CONNECTOR EVAPORATIVE LOSS CANISTER UV20424PA	–	–	Ieškoti
11	FILTER LEAK DETECTION PUMP PB21406PA	–	–	Ieškoti
4	HOSE ADAPTOR 10MM TO 6MM UV20422PA	–	–	Ieškoti
12	HOSE ADAPTOR 10MM TO 8MM UV20421PA	–	–	Ieškoti
2	HOSE ADAPTOR TO PURGE CONTROL VALVE UV20432PA	–	–	Ieškoti
10	HOSE ADAPTOR TO SILL PIPE EVAPORATIVE LOSS UV20619PA	–	–	Ieškoti
8	HOSE CLIP (COBRA 12MM) PB26202PA	–	–	Ieškoti
13	HOSE CLIP 22/26MM SPM2076	–	–	Ieškoti
3	HOSE CLIP COBRA 14/8 UV20556PA	–	–	Ieškoti
19	HOSE CLIP COBRA 15/8 UV20759PA	–	–	Ieškoti
6	HOSE EVAPORATIVE LOSS CANISTER TO ADAPTOR UV20434PA	–	–	Ieškoti
9	HOSE EVAPORATIVE LOSS CANISTER TO FILTER UV20416PA	–	–	Ieškoti
