Bentley Brooklands R LWB rear seat armrest – schema ir OEM kodai
Seats Rear & Parcel Shelf · 30 pozicijų · 0 skelbimų

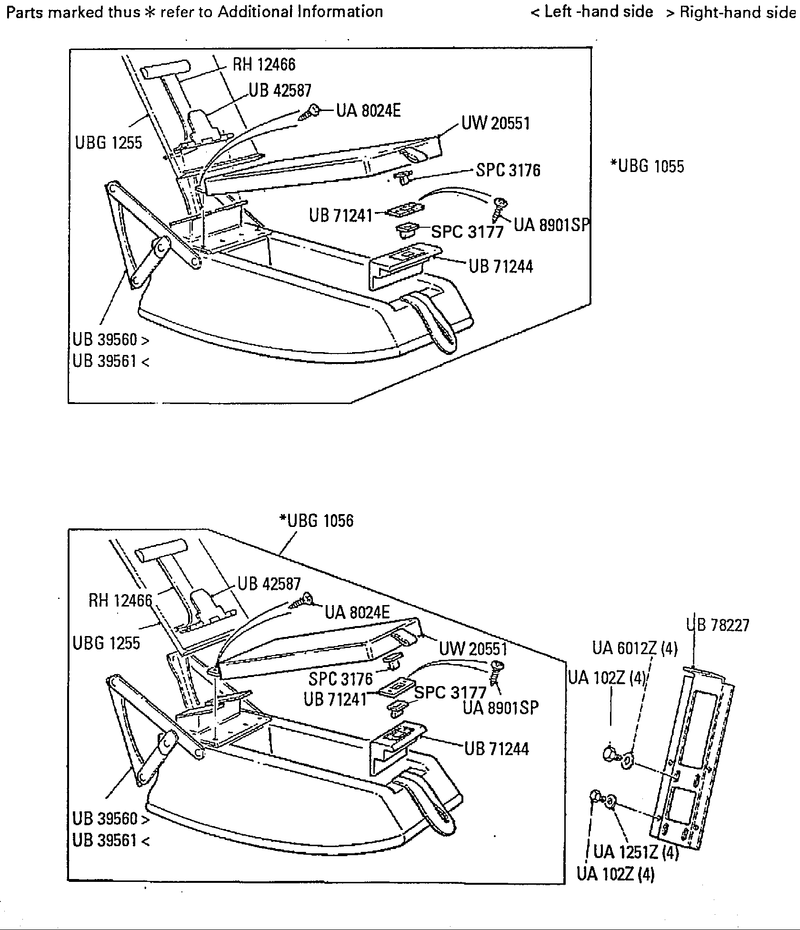

Visos Bentley Brooklands R LWB dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 9 | ASSY ARMREST REAR SEAT NON OPENING UBG1051 | – | – | Ieškoti |
| 9 | ASSY ARMREST REAR SEAT OPENING NO TELEPHONE UBG1055 | – | – | Ieškoti |
| 18 | ASSY ARMREST REAR SEAT TELEPHONE UBG1056 | – | – | Ieškoti |
| 4 | ASSY GUIDE BLOCK TRIMMED RH12466 | – | – | Ieškoti |
| 16 | ASSY GUIDE BLOCK TRIMMED RH12466 | – | – | Ieškoti |
| 7 | ASSY LID REAR SEAT ARMREST UW20551 | – | – | Ieškoti |
| 22 | ASSY LID REAR SEAT ARMREST UW20551 | – | – | Ieškoti |
| 1 | ASSY LINKAGE REAR SEAT ARMREST LH UB39561 | – | – | Ieškoti |
| 13 | ASSY LINKAGE REAR SEAT ARMREST LH UB39561 | – | – | Ieškoti |
| 2 | ASSY LINKAGE REAR SEAT ARMREST RH UB39560 | – | – | Ieškoti |
| 14 | ASSY LINKAGE REAR SEAT ARMREST RH UB39560 | – | – | Ieškoti |
| 15 | ASSY TRIMMED FALSE BOARD REAR SEAT ARMREST UBG1255 | – | – | Ieškoti |
| 3 | ASSY TRIMMED FALSE BOARD REAR SEAT ARMREST UBG1255 | – | – | Ieškoti |
| 29 | BOLT .250 UNF X .500 IN. LONG UA102Z | – | – | Ieškoti |
| 25 | BOLT .250 UNF X .500 IN. LONG UA102Z | – | – | Ieškoti |
| 23 | BRACKET MOUNTING ARMREST REAR SEAT UB78227 | – | – | Ieškoti |
| 30 | FASTEX LATCH ARMREST SPC3177 | – | – | Ieškoti |
| 27 | FINISHER REAR SEAT ARMREST FRONT UB71244 | – | – | Ieškoti |
| 11 | FINISHER REAR SEAT ARMREST FRONT UB71244 | – | – | Ieškoti |
| 5 | HINGE ARMREST FALSE BOARD REAR SEAT UB42587 | – | – | Ieškoti |
| 17 | HINGE ARMREST FALSE BOARD REAR SEAT UB42587 | – | – | Ieškoti |
| 12 | MOUNTING PLATE CATCH REAR SEAT ARMREST UB71241 | – | – | Ieškoti |
| 21 | MOUNTING PLATE CATCH REAR SEAT ARMREST UB71241 | – | – | Ieškoti |
| 26 | SCREW CSK HEAD NO.4 X .375 IN. LONG UA8901SP | – | – | Ieškoti |
| 10 | SCREW CSK HEAD NO.4 X .375 IN. LONG UA8901SP | – | – | Ieškoti |
| 8 | STRIKER FASTEX LATCH ARMREST SPC3176 | – | – | Ieškoti |
| 20 | STRIKER FASTEX LATCH ARMREST SPC3176 | – | – | Ieškoti |
| 24 | WASHER .750 DIA UA6012Z | – | – | Ieškoti |
| 28 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 19 | WOODSCREW CSK HEAD NO.6 X .750 IN. LONG UA8024E | – | – | Ieškoti |
| 6 | WOODSCREW CSK HEAD NO.6 X .750 IN. LONG UA8024E | – | – | Ieškoti |
