Bentley Brooklands R LWB rear quarter glass, drop glass & fittings – schema ir OEM kodai
Door Rear · 14 pozicijų · 0 skelbimų

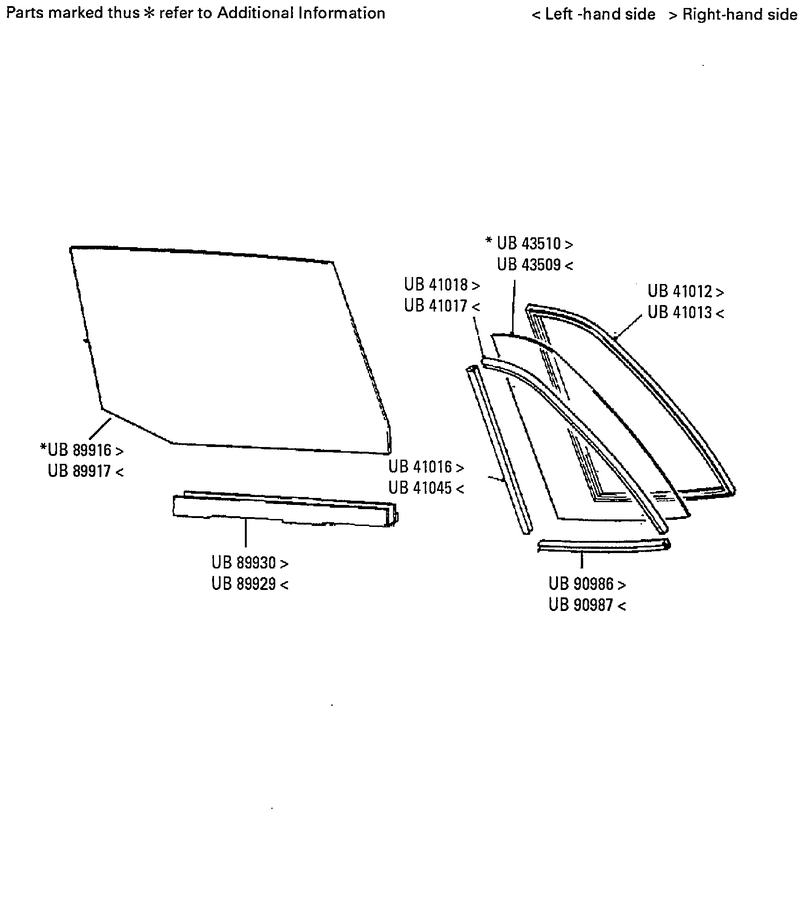

Visos Bentley Brooklands R LWB dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 4 | ASSY BRACE DROP GLASS LH UB89929 | – | – | Ieškoti |
| 3 | ASSY BRACE DROP GLASS RH UB89930 | – | – | Ieškoti |
| 2 | ASSY DROP GLASS DOOR REAR LH LWB UB89919 | – | – | Ieškoti |
| 2 | ASSY DROP GLASS DOOR REAR LH SWB UB89917 | – | – | Ieškoti |
| 1 | ASSY DROP GLASS DOOR REAR RH LWB UB89918 | – | – | Ieškoti |
| 1 | ASSY DROP GLASS DOOR REAR RH SWB UB89916 | – | – | Ieškoti |
| 7 | DOOR FRAME FRONT LH UB41045 | – | – | Ieškoti |
| 2 | DROP GLASS PRIVACY FRONT DOOR LH LWB UB97281 | – | – | Ieškoti |
| 1 | DROP GLASS PRIVACY FRONT DOOR RH LWB UB97280 | – | – | Ieškoti |
| 11 | GLASS REAR QUARTER LIGHT PRIVACY LH UB97283 | – | – | Ieškoti |
| 12 | GLASS REAR QUARTER LIGHT PRIVACY RH UB97282 | – | – | Ieškoti |
| 11 | GLASS REAR QUARTER LIGHT SUNDYM LH UB43509 | – | – | Ieškoti |
| 12 | GLASS REAR QUARTER LIGHT SUNDYM RH UB43510 | – | – | Ieškoti |
| 5 | SEAL REAR QUARTER LIGHT INNER LH UB90987 | – | – | Ieškoti |
| 9 | SEAL REAR QUARTER LIGHT INNER LH (20 IN.) UB41017 | – | – | Ieškoti |
| 6 | SEAL REAR QUARTER LIGHT INNER RH UB90986 | – | – | Ieškoti |
| 8 | SEAL REAR QUARTER LIGHT INNER RH (16 IN.) UB41016 | – | – | Ieškoti |
| 10 | SEAL REAR QUARTER LIGHT INNER RH (20 IN.) UB41018 | – | – | Ieškoti |
| 14 | SEAL REAR QUARTER LIGHT OUTER LH UB41013 | – | – | Ieškoti |
| 13 | SEAL REAR QUARTER LIGHT OUTER RH UB41012 | – | – | Ieškoti |
