Bentley Brooklands R LWB headlamps – schema ir OEM kodai
Electrical · 41 pozicija · 0 skelbimų

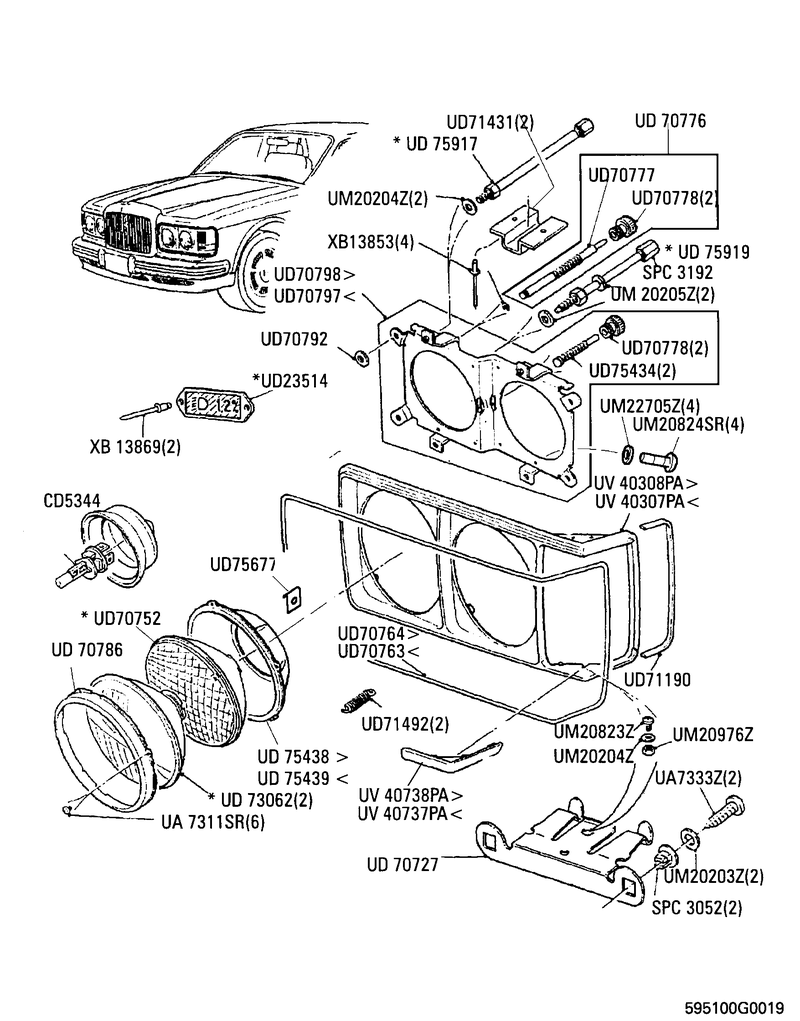

Visos Bentley Brooklands R LWB dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 14 | ADJUSTER HEADLAMP (110MM LONG) UD75434 | – | – | Ieškoti |
| 4 | ADJUSTER HEADLAMP (VERTICAL) UD70777 | – | – | Ieškoti |
| 1 | ASSY ADJUSTER HEADLAMP (VERTICAL) UD70776 | – | – | Ieškoti |
| 27 | ASSY FINISHER HEADLAMP BEZEL LH UD70763 | – | – | Ieškoti |
| 26 | ASSY FINISHER HEADLAMP BEZEL RH UD70764 | – | – | Ieškoti |
| 30 | ASSY HEADLAMP MAIN BEAM 55W H1 (WHITE) UD73062 | – | – | Ieškoti |
| 30 | ASSY HEADLAMP MAIN DIP BEAM 60/55W H4 RHD (WHITE) UD73061 | – | – | Ieškoti |
| 30 | ASSY HEADLAMP MAIN/DIP BEAM 60/55W H4 LHD (WHITE) UD73060 | – | – | Ieškoti |
| 30 | ASSY HEADLAMP OUTER 12V 60/55W UD70824 | – | – | Ieškoti |
| 30 | ASSY HEADLAMP OUTER 12V 65/35W UD70825 | – | – | Ieškoti |
| 10 | ASSY MOUNTING PLATE & ADJUSTERS HEADLAMPS LH UD70797 | – | – | Ieškoti |
| 9 | ASSY MOUNTING PLATE & ADJUSTERS HEADLAMPS RH UD70798 | – | – | Ieškoti |
| 3 | ASSY REACH BOLT HEADLAMP MOUNTING INNER UD75917 | – | – | Ieškoti |
| 8 | ASSY REACH BOLT HEADLAMP MOUNTING LOWER UD75920 | – | – | Ieškoti |
| 3 | ASSY REACH BOLT HEADLAMP MOUNTING OUTER UD75918 | – | – | Ieškoti |
| 8 | ASSY REACH BOLT HEADLAMP MOUNTING UPPER UD75919 | – | – | Ieškoti |
| 28 | ASSY SEATING RIM HEADLAMP TYPE C UD75438 | – | – | Ieškoti |
| 29 | ASSY SEATING RIM HEADLAMP TYPE D UD75439 | – | – | Ieškoti |
| 21 | BEZEL HEADLAMPS LH (PRIMED) UV40307PA | – | – | Ieškoti |
| 20 | BEZEL HEADLAMPS RH (PRIMED) UV40308PA | – | – | Ieškoti |
| 22 | BULB HALOGEN NO 448 CD5344 | – | – | Ieškoti |
| 23 | CLIP HEADLAMP FINISHER UD75677 | – | – | Ieškoti |
| 41 | FASTEX NUT SPC3052 | – | – | Ieškoti |
| 39 | FINISHER HEADLAMP BEZEL LOWER LH (PRIMED) UV40737PA | – | – | Ieškoti |
| 38 | FINISHER HEADLAMP BEZEL LOWER RH (PRIMED) UV40738PA | – | – | Ieškoti |
| 24 | FOG LAMP FRONT (7 IN.) UD70752 | – | – | Ieškoti |
| 2 | GUIDE BRACKET HEADLAMP MOUNTING BOLT UD71431 | – | – | Ieškoti |
| 30 | HEADLAMP INNER 12V 55W UD70914 | – | – | Ieškoti |
| 30 | HEADLAMP OUTER 12V 60/55W UD70915 | – | – | Ieškoti |
| 13 | KNOB HEADLAMP ADJUSTER UD70778 | – | – | Ieškoti |
| 5 | KNOB HEADLAMP ADJUSTER UD70778 | – | – | Ieškoti |
| 34 | MOUNTING BRACKET SIDELAMP UPPER UD70727 | – | – | Ieškoti |
| 36 | NUT PLAIN M5 UM20976Z | – | – | Ieškoti |
| 25 | RETAINING BEZEL HEADLAMP UNIT UD70786 | – | – | Ieškoti |
| 11 | RETAINING WASHER (DZUS) SPC3192 | – | – | Ieškoti |
| 7 | RIVET POP DOMED HEAD .125 IN. X .190 IN. LONG XB13853 | – | – | Ieškoti |
| 19 | RIVET POP DOMED HEAD .125 IN. X .240 IN. LONG XB13869 | – | – | Ieškoti |
| 35 | SCREW PAN HEAD M5 X 10MM LONG UM20823Z | – | – | Ieškoti |
| 18 | SCREW PAN HEAD M5 X 12MM LONG UM20824SR | – | – | Ieškoti |
| 31 | SCREW PAN HEAD NO.6 X .250 IN. LONG UA7311SR | – | – | Ieškoti |
| 40 | SCREW PAN HEAD NO.8 X .625 IN. LONG UA7333Z | – | – | Ieškoti |
| 32 | SEALING STRIP HEADLAMP BEZEL UD71190 | – | – | Ieškoti |
| 16 | SETTING PLATE HEADLAMP UD23514 | – | – | Ieškoti |
| 33 | SPRING HEADLAMP ADJUSTMENT UD71492 | – | – | Ieškoti |
| 30 | SSTEEL HEADLAMP SURROUND STAINLESS STEEL LH UB98167 | – | – | Ieškoti |
| 30 | SSTEEL HEADLAMP SURROUND STAINLESS STEEL RH UB98168 | – | – | Ieškoti |
| 15 | WASHER HEADLAMP BEZEL MOUNTING BRACKET UD70792 | – | – | Ieškoti |
| 37 | WASHER PLAIN M4 UM20203Z | – | – | Ieškoti |
| 6 | WASHER PLAIN M5 UM20204Z | – | – | Ieškoti |
| 17 | WASHER PLAIN M5 UM22705Z | – | – | Ieškoti |
| 12 | WASHER PLAIN M6 UM20205Z | – | – | Ieškoti |
