Bentley Azure Mulliner rear wings & saddle panel (azure) – schema ir OEM kodai
Body Shell. Excl Body Panels · 26 pozicijos · 0 skelbimų

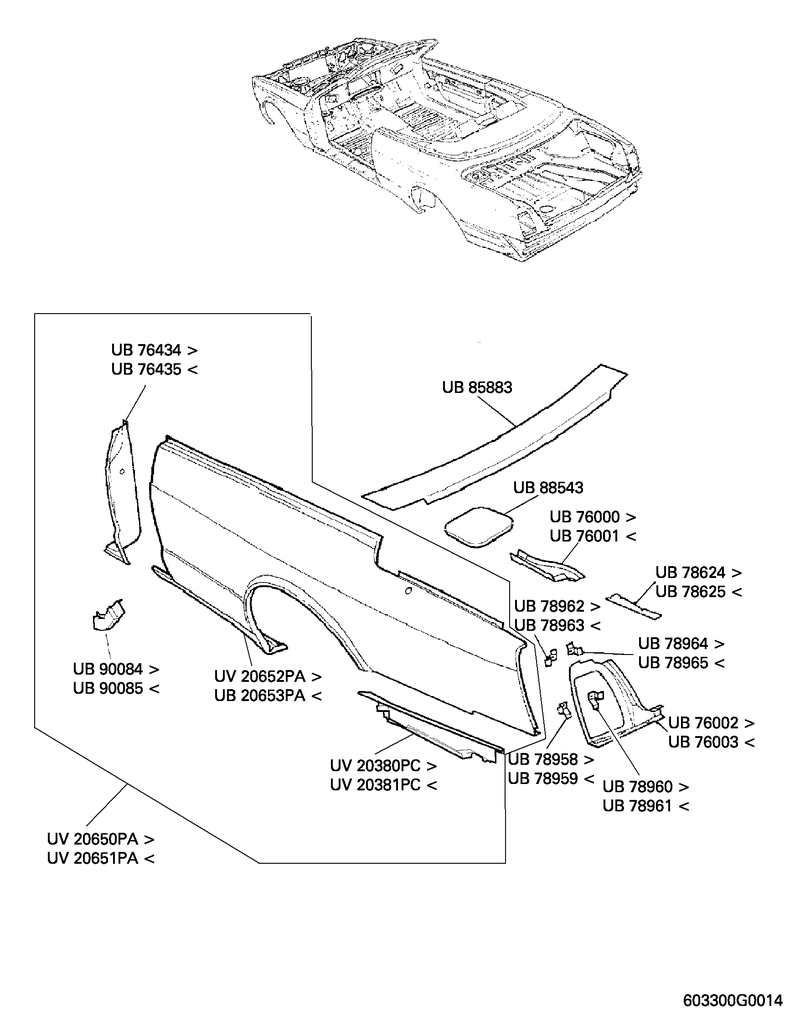

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY INFILL PANEL REAR WING LH UV20381PC | – | – | Ieškoti |
| 2 | ASSY INFILL PANEL REAR WING RH UV20380PC | – | – | Ieškoti |
| 5 | ASSY REAR WING LH (FULL FLARED WHEELARCH) UB99247 | – | – | Ieškoti |
| 5 | ASSY REAR WING LH (INTERMEDIATE FLARED WHEELARCH) UB98175 | – | – | Ieškoti |
| 5 | ASSY REAR WING LH (STANDARD WHEELARCH) UV20651PA | – | – | Ieškoti |
| 6 | ASSY REAR WING RH (FULL FLARED WHEELARCH) UB99248 | – | – | Ieškoti |
| 6 | ASSY REAR WING RH (INTERMEDIATE FLARED WHEELARCH) UB98176 | – | – | Ieškoti |
| 6 | ASSY REAR WING RH (STANDARD WHEELARCH) UV20650PA | – | – | Ieškoti |
| 13 | BRACKET MOUNTING TAIL LAMP LOWER INBOARD LH UB78961 | – | – | Ieškoti |
| 14 | BRACKET MOUNTING TAIL LAMP LOWER INBOARD RH UB78960 | – | – | Ieškoti |
| 15 | BRACKET MOUNTING TAIL LAMP LOWER OUTBOARD LH UB78959 | – | – | Ieškoti |
| 16 | BRACKET MOUNTING TAIL LAMP LOWER OUTBOARD RH UB78958 | – | – | Ieškoti |
| 9 | BRACKET MOUNTING TAIL LAMP UPPER INBOARD LH UB78965 | – | – | Ieškoti |
| 10 | BRACKET MOUNTING TAIL LAMP UPPER INBOARD RH UB78964 | – | – | Ieškoti |
| 11 | BRACKET MOUNTING TAIL LAMP UPPER OUTBOARD LH UB78963 | – | – | Ieškoti |
| 12 | BRACKET MOUNTING TAIL LAMP UPPER OUTBOARD RH UB78962 | – | – | Ieškoti |
| 7 | FILLER PANEL BC POST LH UB90085 | – | – | Ieškoti |
| 8 | FILLER PANEL BC POST RH UB90084 | – | – | Ieškoti |
| 25 | FUEL FILLER FLAP UB88543 | – | – | Ieškoti |
| 23 | PANEL B POST FACING LH UB76435 | – | – | Ieškoti |
| 24 | PANEL B POST FACING RH UB76434 | – | – | Ieškoti |
| 17 | PANEL CLOSING REAR QUARTER LOWER LH UB78625 | – | – | Ieškoti |
| 18 | PANEL CLOSING REAR QUARTER LOWER RH UB78624 | – | – | Ieškoti |
| 21 | PANEL FILLER GUTTER BOOT LH UB76001 | – | – | Ieškoti |
| 22 | PANEL FILLER GUTTER BOOT RH UB76000 | – | – | Ieškoti |
| 19 | PANEL REAR LAMP MOUNTING LH UB76003 | – | – | Ieškoti |
| 20 | PANEL REAR LAMP MOUNTING RH UB76002 | – | – | Ieškoti |
| 3 | REAR WING LH UV20653PA | – | – | Ieškoti |
| 4 | REAR WING RH UV20652PA | – | – | Ieškoti |
| 26 | SADDLE PANEL UB85883 | – | – | Ieškoti |
