Bentley Azure Mulliner looms & link cables – schema ir OEM kodai

Electrical · 66 pozicijos · 0 skelbimų

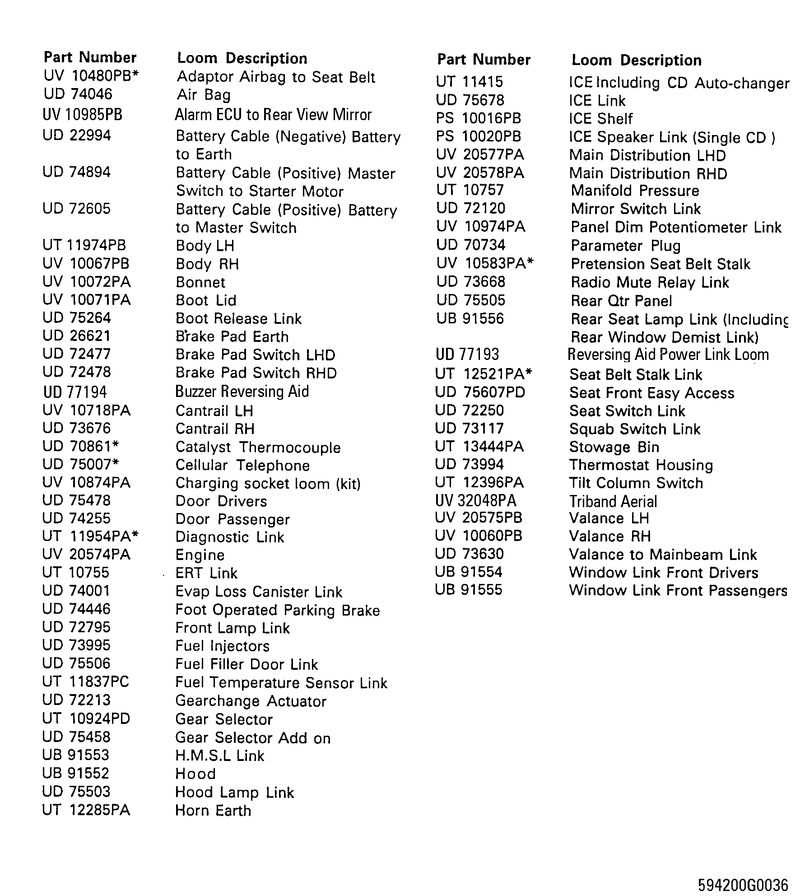

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
12	ASSY BRAKE PAD EARTH CABLE UD26621	–	–	Ieškoti
25	ASSY LINK LOOM ENGINE RUN TIMER UT10755	–	–	Ieškoti
28	ASSY LINK LOOM FRONT LAMP UNIT UD72795	–	–	Ieškoti
31	ASSY LINK LOOM FUEL TEMPERATURE SENSOR UT11837PC	–	–	Ieškoti
34	ASSY LINK LOOM GEAR SELECTOR UD75458	–	–	Ieškoti
37	ASSY LINK LOOM HOOD LAMP UD75503	–	–	Ieškoti
40	ASSY LINK LOOM IN CAR ENTERTAINMENT BOARD UD75678	–	–	Ieškoti
64	ASSY LINK LOOM MAIN BEAM HEADLAMPS UD73630	–	–	Ieškoti
23	ASSY LINK LOOM OBD II DIAGNOSTIC CONNECTOR UT11639	–	–	Ieškoti
47	ASSY LINK LOOM PANEL DIM POTENTIOMETER UV10974PA	–	–	Ieškoti
50	ASSY LINK LOOM RADIO MUTE UD73668	–	–	Ieškoti
56	ASSY LINK LOOM SEAT SWITCH UD72250	–	–	Ieškoti
54	ASSY LINK LOOM SEATBELT STALK UT12521PA	–	–	Ieškoti
2	ASSY LOOM AIR BAG UD74046	–	–	Ieškoti
1	ASSY LOOM AIR BAG SEATBELT PRETENSIONERS DIAGNOSTIC CHANGEOVER UV10480PB	–	–	Ieškoti
7	ASSY LOOM BODY LH UT11974PB	–	–	Ieškoti
11	ASSY LOOM BOOT RELEASE UD75264	–	–	Ieškoti
13	ASSY LOOM BRAKE SWITCH LHD UD72477	–	–	Ieškoti
14	ASSY LOOM BRAKE SWITCH RHD UD72478	–	–	Ieškoti
17	ASSY LOOM CANTRAIL RH UD73676	–	–	Ieškoti
21	ASSY LOOM DOOR DRIVERS UD75478	–	–	Ieškoti
22	ASSY LOOM DOOR PASSENGER UD74255	–	–	Ieškoti
65	ASSY LOOM DRIVERS WINDOW LIFT UB91554	–	–	Ieškoti
55	ASSY LOOM EASY ENTRY EXIT FRONT SEAT UD75607PD	–	–	Ieškoti
27	ASSY LOOM FOOT OPERATED PARKING BRAKE UD74446	–	–	Ieškoti
66	ASSY LOOM FRONT PASSENGER WINDOW LIFT UB91555	–	–	Ieškoti
30	ASSY LOOM FUEL FILLER FLAP UD75506	–	–	Ieškoti
29	ASSY LOOM FUEL INJECTORS UD73995	–	–	Ieškoti
33	ASSY LOOM GEAR SELECTOR UT10924PD	–	–	Ieškoti
32	ASSY LOOM GEAR SELECTOR ACTUATOR UD72213	–	–	Ieškoti
35	ASSY LOOM HIGH MOUNTED STOP LAMP LINK UB91553	–	–	Ieškoti
36	ASSY LOOM HOOD HYDRAULIC POWER PACK UB91552	–	–	Ieškoti
38	ASSY LOOM HORN EARTH UT12285PA	–	–	Ieškoti
39	ASSY LOOM IN CAR ENTERTAINMENT UT11415	–	–	Ieškoti
23	ASSY LOOM K & L DIAGNOSTIC UT11954PA	–	–	Ieškoti
45	ASSY LOOM MANIFOLD PRESSURE UT10757	–	–	Ieškoti
51	ASSY LOOM REAR QUARTER PANEL UD75505	–	–	Ieškoti
52	ASSY LOOM REAR SEAT LAMP & BACKLIGHT DEMISTER UB91556	–	–	Ieškoti
49	ASSY LOOM SEATBELT PRETENSIONER UV10583PA	–	–	Ieškoti
60	ASSY LOOM STEERING COLUMN ADJUSTMENT SWITCH UT12396PA	–	–	Ieškoti
58	ASSY LOOM STOWAGE BIN UT13444PA	–	–	Ieškoti
19	ASSY LOOM TELEPHONE UD75008	–	–	Ieškoti
19	ASSY LOOM TELEPHONE UD75007	–	–	Ieškoti
59	ASSY LOOM THERMOSTAT HOUSING UD73994	–	–	Ieškoti
46	ASSY MIRROR SWITCH & LOOM UD72120	–	–	Ieškoti
48	ASSY PARAMETER PLUG UD70734	–	–	Ieškoti
18	ASSY THERMOCOUPLE UD70861	–	–	Ieškoti
4	BATTERY CABLE NEGATIVE UD22994	–	–	Ieškoti
6	BATTERY CABLE POSITIVE BATTERY TO MASTER SWITCH UD72605	–	–	Ieškoti
5	BATTERY CABLE POSITIVE MASTER SWITCH TO ENGINE UD74894	–	–	Ieškoti
15	BUZZER REVERSING AID UD77194	–	–	Ieškoti
57	EXTENSION BRACKET UD73177	–	–	Ieškoti
20	KIT CHARGING SOCKET & LOOM UV10874PA	–	–	Ieškoti
53	LINK LOOM (POWER) REVERSING AID UD77193	–	–	Ieškoti
26	LINK LOOM EVAPORATIVE LOSS CANISTER UD74001	–	–	Ieškoti
61	LINK LOOM TRIBAND AERIAL UV32048PA	–	–	Ieškoti
3	LOOM ALARM AERIAL UV10985PA	–	–	Ieškoti
8	LOOM BODY RH UV10067PB	–	–	Ieškoti
9	LOOM BONNET UV10072PA	–	–	Ieškoti
10	LOOM BOOT LID UV10071PA	–	–	Ieškoti
16	LOOM CANTRAIL LH UV10718PA	–	–	Ieškoti
24	LOOM ENGINE ZYTEK UV20574PA	–	–	Ieškoti
42	LOOM LINK CD SINGLE PLAYER PS10020PB	–	–	Ieškoti
43	LOOM MAIN DISTRIBUTION LHD UV20577PA	–	–	Ieškoti
44	LOOM MAIN DISTRIBUTION RHD UV20578PA	–	–	Ieškoti
41	LOOM POWER AMPLIFIER BYPASS PS10016PB	–	–	Ieškoti
62	LOOM VALANCE LH UV20575PB	–	–	Ieškoti
63	LOOM VALANCE RH UV10060PB	–	–	Ieškoti
