Bentley Azure Mulliner front road springs & fittings – schema ir OEM kodai
Front Suspension · 22 pozicijos · 0 skelbimų

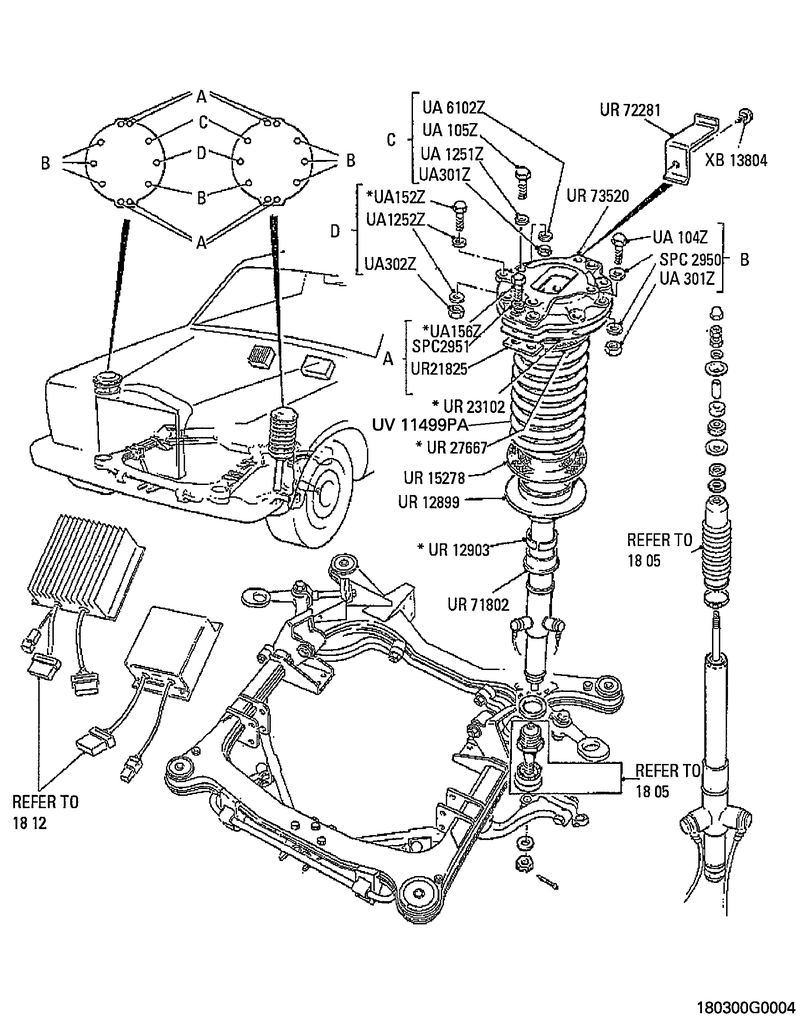

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 20 | ASSY COVER SPRING TOWER FRONT SUSPENSION UR73520 | – | – | Ieškoti |
| 15 | ASSY SPRING SUPPORT FRONT SUSPENSION UR12899 | – | – | Ieškoti |
| 19 | BOLT .250 UNF X .750 IN. LONG UA104Z | – | – | Ieškoti |
| 2 | BOLT .250 UNF X .875 IN. LONG UA105Z | – | – | Ieškoti |
| 8 | BOLT .3125 UNF X 1.125 IN. LONG UA156Z | – | – | Ieškoti |
| 5 | BOLT.3125 UNF X .625 IN. LONG UA152Z | – | – | Ieškoti |
| 16 | DISTANCE PIECE DAMPER SLEEVE FRONT SUSPENSION (.064 IN.) UR14733 | – | – | Ieškoti |
| 16 | DISTANCE PIECE DAMPER SLEEVE FRONT SUSPENSION (.250 IN.) UR12903 | – | – | Ieškoti |
| 16 | DISTANCE PIECE DAMPER SLEEVE FRONT SUSPENSION (.500 IN.) UR12904 | – | – | Ieškoti |
| 16 | DISTANCE PIECE DAMPER SLEEVE FRONT SUSPENSION (.750 IN.) UR12905 | – | – | Ieškoti |
| 11 | GASKET COVER SPRING TOWER FRONT SUSPENSION UR23102 | – | – | Ieškoti |
| 11 | GASKET SPRING POT COVER FRONT SUSPENSION UR72172 | – | – | Ieškoti |
| 4 | NUT PLAIN .250 UNF UA301Z | – | – | Ieškoti |
| 7 | NUT PLAIN .3125 UNF UA302Z | – | – | Ieškoti |
| 22 | RETAINING CLIP TAPPING BLOCK UR72281 | – | – | Ieškoti |
| 21 | RIVET POP DOMED HEAD .125 IN. X .310 IN. LONG XB13804R | – | – | Ieškoti |
| 17 | SLEEVE FRONT DAMPER UR71802 | – | – | Ieškoti |
| 12 | SPRING FRONT SUSPENSION UV11499PA | – | – | Ieškoti |
| 14 | SPRING SEATING FRONT SUSPENSION UR15278 | – | – | Ieškoti |
| 13 | SPRING SEATING FRONT SUSPENSION UR27667 | – | – | Ieškoti |
| 10 | TAPPING PLATE SPRING TOWER FRONT SUSPENSION UR21825 | – | – | Ieškoti |
| 9 | WASHER SPC2951 | – | – | Ieškoti |
| 18 | WASHER FIBRE SPC2950 | – | – | Ieškoti |
| 3 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 6 | WASHER PLAIN .328 IN. I.D. UA1252Z | – | – | Ieškoti |
| 1 | WASHER THICK .255 IN. I.D. UA6102Z | – | – | Ieškoti |
