Bentley Arnage RL pipes & hoses, engine to tank – schema ir OEM kodai

Emission Control · 33 pozicijos · 0 skelbimų

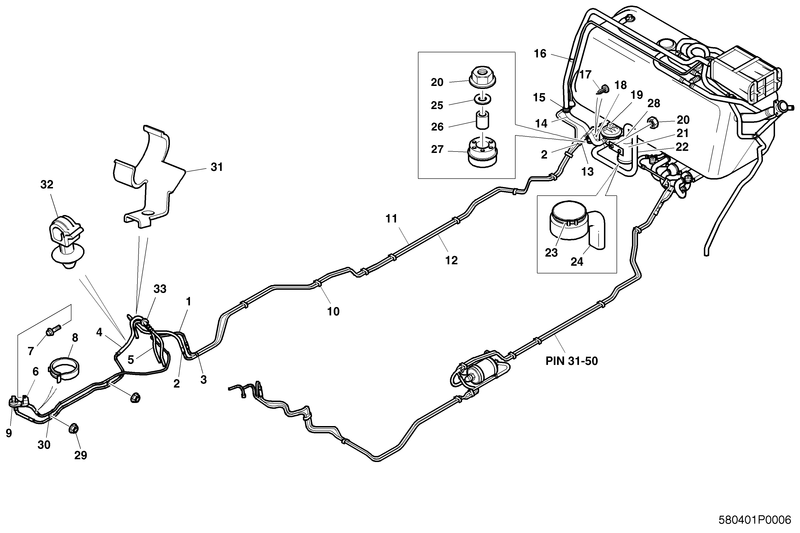

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
5	ASSY HOSE VACUUM CLUSTER ENGINE LEAK DETECTION PUMP PB108399PD	–	–	Ieškoti
13	ASSY HOSE VACUUM PIPE TO LEAK DETECTION PUMP PB55645PA	–	–	Ieškoti
4	ASSY PIPE PURGE VALVE TO ENGINE PF108398PC	–	–	Ieškoti
1	ASSY PIPE VACUUM CLUSTER TO PURGE VALVE PF110138PA	–	–	Ieškoti
30	ASSY PLATE SADDLE CLAMP PF109221PA	–	–	Ieškoti
18	BRACKET MOUNTING LEAK DETECTION PUMP PB55916PA	–	–	Ieškoti
6	BRACKET MOUNTING PURGE VALVE PB108387PB	–	–	Ieškoti
31	BRACKET SUPPORT PURGE LEAK DETECTION PUMP HOSES PF109523PA	–	–	Ieškoti
30	CLAMP PIPES 8MM PF109220PA	–	–	Ieškoti
32	CLIP 15MM LATCHING PZ109529PA	–	–	Ieškoti
8	CLIP HOSE 12.5/14.0 MM PF29233PA	–	–	Ieškoti
2	CLIP HOSE 12.5/14.0 MM PF29233PA	–	–	Ieškoti
28	CLIP HOSE 21.5/23.0 MM PF29242PA	–	–	Ieškoti
16	CONNECTOR (NORMA) PF30947PA	–	–	Ieškoti
21	FILTER LEAK DETECTION PUMP PB21406PA	–	–	Ieškoti
15	GROMMET CANISTER TO LEAK DETECTION PUMP PF27206PA	–	–	Ieškoti
23	HOSE CLIP (COBRA 64/9) PB31171PA	–	–	Ieškoti
14	HOSE LEAK DETECTION PUMP TO STRAIGHT CONNECTOR PB55334PA	–	–	Ieškoti
22	HOSE LEAK DETECTION PUMP TO FILTER PB56361PA	–	–	Ieškoti
19	LEAK DETECTION PUMP PB21405PC	–	–	Ieškoti
20	NUT WHIZTITE M6 PB25054PA	–	–	Ieškoti
29	NUT WHIZTITE M6 PB25054PA	–	–	Ieškoti
33	ONE WAY VALVE 3Z0201523	–	–	Ieškoti
11	PIPE CANISTER PURGE PB109730PA	–	–	Ieškoti
10	PIPE CLIP 2 X 8.00 RETAINED TYPE PC31719PA	–	–	Ieškoti
3	PIPE CLIP TRW PF32017PA	–	–	Ieškoti
12	PIPE VACUUM TO LEAK DETECTION PUMP PB109729PA	–	–	Ieškoti
9	PURGE VALVE ASSEMBLY PB100368PD	–	–	Ieškoti
27	RUBBER MOUNT PC21090PA	–	–	Ieškoti
17	SCREW PRESSURE PUMP MOUNTING PB23173PB	–	–	Ieškoti
7	SETSCREW FLANGED HEAD M6 X 8MM LONG PW30852PA	–	–	Ieškoti
26	SPACER RUBBER MOUNT PC21094PA	–	–	Ieškoti
25	WASHER PC21093PA	–	–	Ieškoti
24	WATERSHIELD LEAK DETECTION PUMP FILTER PB27312PB	–	–	Ieškoti
