Bentley Arnage RL insulation, soundproofing – schema ir OEM kodai
Passenger Compartment Trim · 20 pozicijų · 0 skelbimų

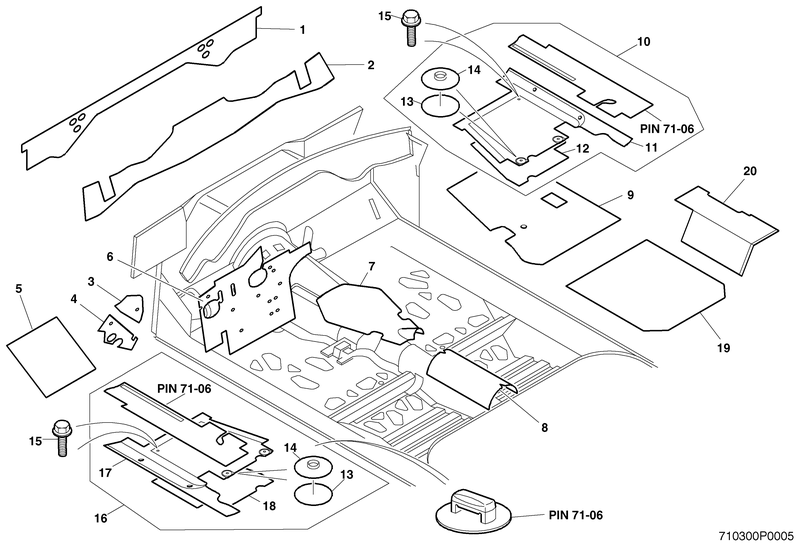

Visos Bentley Arnage RL dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 20 | ASSY PANEL SILL INNER REAR LH LV10727PC | – | – | Ieškoti |
| 20 | ASSY PANEL SILL INNER REAR RH LV10726PC | – | – | Ieškoti |
| 10 | ASSY SUPPORT PANEL & CARPET DRIVERS LHD PV110117PA | – | – | Ieškoti |
| 10 | ASSY SUPPORT PANEL & CARPET DRIVERS RHD PV110125PA | – | – | Ieškoti |
| 16 | ASSY SUPPORT PANEL & CARPET PASSENGER LHD PV110118PA | – | – | Ieškoti |
| 16 | ASSY SUPPORT PANEL & CARPET PASSENGER RHD PV110126PA | – | – | Ieškoti |
| 14 | FIXING FLOOR CARPET 3D0864107 | – | – | Ieškoti |
| 13 | PAD ADHESIVE FOAM PV109145PA | – | – | Ieškoti |
| 11 | PANEL SUPPORT CARPET DRIVERS LHD PV109101PA | – | – | Ieškoti |
| 11 | PANEL SUPPORT CARPET DRIVERS RHD PV109099PA | – | – | Ieškoti |
| 17 | PANEL SUPPORT CARPET PASSENGER LHD PV109102PA | – | – | Ieškoti |
| 17 | PANEL SUPPORT CARPET PASSENGER RHD PV109100PA | – | – | Ieškoti |
| 15 | SCREW FLANGE HEAD M6 X 20MM LONG PF23761PA | – | – | Ieškoti |
| 3 | SOUNDPROOFING A POST LOWER FRONT LH PV26003PE | – | – | Ieškoti |
| 3 | SOUNDPROOFING A POST LOWER FRONT RH PV109153PA | – | – | Ieškoti |
| 4 | SOUNDPROOFING A POST LOWER REAR LH PV108830PA | – | – | Ieškoti |
| 4 | SOUNDPROOFING A POST LOWER REAR RH PV108827PA | – | – | Ieškoti |
| 1 | SOUNDPROOFING DASH PV108828PA | – | – | Ieškoti |
| 12 | SOUNDPROOFING DRIVERS FLOOR LHD PV109245PA | – | – | Ieškoti |
| 12 | SOUNDPROOFING DRIVERS FLOOR RHD PV109244PA | – | – | Ieškoti |
| 9 | SOUNDPROOFING FLOOR FRONT LH PV109093PA | – | – | Ieškoti |
| 9 | SOUNDPROOFING FLOOR FRONT RH PV109092PA | – | – | Ieškoti |
| 18 | SOUNDPROOFING FLOOR PASSENGER PV109246PA | – | – | Ieškoti |
| 19 | SOUNDPROOFING FLOOR REAR LV10539PB | – | – | Ieškoti |
| 6 | SOUNDPROOFING FOOTWELL LH PV109151PA | – | – | Ieškoti |
| 6 | SOUNDPROOFING FOOTWELL RH PV108829PA | – | – | Ieškoti |
| 5 | SOUNDPROOFING PASSENGER FOOTREST LHD PV109113PA | – | – | Ieškoti |
| 5 | SOUNDPROOFING PASSENGER FOOTREST RHD PV109112PA | – | – | Ieškoti |
| 8 | SOUNDPROOFING REAR TUNNEL LV10414PC | – | – | Ieškoti |
| 2 | SOUNDPROOFING SUB DASH PV109152PA | – | – | Ieškoti |
| 7 | SOUNDPROOFING TRANSMISSION TUNNEL FRONT PV106821PA | – | – | Ieškoti |
