Bentley Arnage RL interior trim & waistrail (door rear) – schema ir OEM kodai

Door Rear · 44 pozicijos · 0 skelbimų

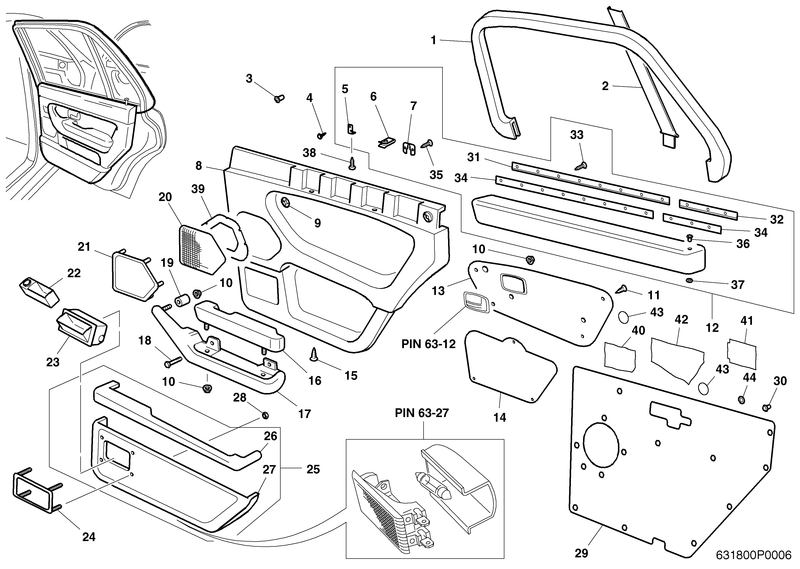

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
16	ASSY ARMREST REAR DOOR LH PP56915PA	–	–	Ieškoti
16	ASSY ARMREST REAR DOOR RH PP56916PA	–	–	Ieškoti
22	ASSY ASHTRAY INSERT LH PP32573PA	–	–	Ieškoti
22	ASSY ASHTRAY INSERT RH PP32574PA	–	–	Ieškoti
23	ASSY ASHTRAY TRIMMED DOOR LH PP33332PA	–	–	Ieškoti
23	ASSY ASHTRAY TRIMMED DOOR RH PP33330PA	–	–	Ieškoti
24	ASSY BEZEL ASHTRAY TRIMMED LH PP29703PB	–	–	Ieškoti
24	ASSY BEZEL ASHTRAY TRIMMED RH PP29702PB	–	–	Ieškoti
19	ASSY DOOR PULL BOSS REAR LH LP10705PA	–	–	Ieškoti
19	ASSY DOOR PULL BOSS REAR RH LP10704PA	–	–	Ieškoti
17	ASSY DOOR PULL REAR LH LP10703PA	–	–	Ieškoti
17	ASSY DOOR PULL REAR RH LP10702PA	–	–	Ieškoti
1	ASSY DOOR UPPER REAR DOOR LH LP10139PA	–	–	Ieškoti
1	ASSY DOOR UPPER REAR DOOR RH LP10140PA	–	–	Ieškoti
14	ASSY INSERT PANEL LOWER LH LP10717PA	–	–	Ieškoti
14	ASSY INSERT PANEL LOWER RH LP10718PA	–	–	Ieškoti
14	ASSY INSERT PANEL LOWER VENEERED LH LP10711PA	–	–	Ieškoti
14	ASSY INSERT PANEL LOWER VENEERED RH LP10712PA	–	–	Ieškoti
13	ASSY INSERT PANEL UPPER LH LP10715PA	–	–	Ieškoti
13	ASSY INSERT PANEL UPPER RH LP10716PA	–	–	Ieškoti
13	ASSY INSERT PANEL UPPER VENEERED LH LP10709PA	–	–	Ieškoti
13	ASSY INSERT PANEL UPPER VENEERED RH LP10710PA	–	–	Ieškoti
27	ASSY POCKET LOWER REAR DOOR LH LP10115PA	–	–	Ieškoti
27	ASSY POCKET LOWER REAR DOOR RH LP10116PA	–	–	Ieškoti
25	ASSY POCKET REAR DOOR LH LP10105PA	–	–	Ieškoti
25	ASSY POCKET REAR DOOR RH LP10106PA	–	–	Ieškoti
26	ASSY POCKET UPPER REAR DOOR LH LP10133PA	–	–	Ieškoti
26	ASSY POCKET UPPER REAR DOOR RH LP10134PA	–	–	Ieškoti
8	ASSY TRIM PAD REAR DOOR LH LP10091PA	–	–	Ieškoti
8	ASSY TRIM PAD REAR DOOR RH LP10090PA	–	–	Ieškoti
2	ASSY TRIMMED GLASS DIVISION BAR LH PP33113PA	–	–	Ieškoti
2	ASSY TRIMMED GLASS DIVISION BAR RH PP33112PA	–	–	Ieškoti
12	ASSY WAISTRAIL BENTLEY LOGO REAR LH PP58739PA	–	–	Ieškoti
12	ASSY WAISTRAIL BENTLEY LOGO REAR RH PP58740PA	–	–	Ieškoti
12	ASSY WAISTRAIL VENEERED REAR LH PP58869PA	–	–	Ieškoti
12	ASSY WAISTRAIL VENEERED REAR RH PP58870PA	–	–	Ieškoti
21	BEZEL SPEAKER PAINTED REAR DOOR LH PP28251PD	–	–	Ieškoti
21	BEZEL SPEAKER PAINTED REAR DOOR RH PP28250PD	–	–	Ieškoti
5	BRACKET SUPPORT WAISTRAIL PP27154PD	–	–	Ieškoti
36	BUSH SILL BUTTON UB35300	–	–	Ieškoti
6	CAPTIVE NUT UB15969	–	–	Ieškoti
3	CAPTIVE NUT (FASTEX) UB72026	–	–	Ieškoti
32	FINISHER WAISTRAIL QUARTER GLASS PP29449PE	–	–	Ieškoti
31	FINISHER WAISTRAIL REAR DOOR LP10529PB	–	–	Ieškoti
39	GASKET SPEAKER BEZEL REAR DOOR LH PP58193PA	–	–	Ieškoti
39	GASKET SPEAKER BEZEL REAR DOOR RH PP58192PA	–	–	Ieškoti
20	GRILLE SPEAKER PAINTED REAR DOOR LH PP57857PA	–	–	Ieškoti
20	GRILLE SPEAKER PAINTED REAR DOOR RH PP57858PA	–	–	Ieškoti
34	INSEAL X 25MM X 1.5MM X 4.8M LONG UB75620	–	–	Ieškoti
7	KEYHOLE PLATE PP27153PC	–	–	Ieškoti
28	NUT M4 COMBINATION PF30219PA	–	–	Ieškoti
10	NUT WHIZTITE M5 X 0.8 PT24658PA	–	–	Ieškoti
43	PATCH 30MM DIAMETER SELF ADHESIVE PP59689PA	–	–	Ieškoti
35	SCREW CSK HEAD NO.4 X .375 IN. LONG UA8901Z	–	–	Ieškoti
33	SCREW FLANGE HEAD NO.4 X .500 IN. LONG UA7103Z	–	–	Ieškoti
15	SCREW FLANGE HEAD NO.6 X .625 IN. LONG UA9313Z	–	–	Ieškoti
11	SCREW FLANGE HEAD NO.8 X .500 IN. LONG UA9321Z	–	–	Ieškoti
38	SCREW WASHER PAN HEAD NO.6 X .750 IN. LONG BLACK SPC2735	–	–	Ieškoti
18	SETSCREW M5 X 25MM LONG UM20716Z	–	–	Ieškoti
37	STARLOCK WASHER .500 IN. NOMINAL UB35297	–	–	Ieškoti
9	STARLOCK WASHER 2.00MM NOMINAL SPM1859	–	–	Ieškoti
30	STUD HOLDER TRIM PANELS GREEN PP28903PB	–	–	Ieškoti
4	TRIM CLIP FIXED RED PP32162PA	–	–	Ieškoti
44	WASHER RUBBER PP59785PA	–	–	Ieškoti
40	WATER SHEDDER CHECK ARM APERTURE REAR DOOR LH PP59381PA	–	–	Ieškoti
40	WATER SHEDDER CHECK ARM APERTURE REAR DOOR RH PP59382PA	–	–	Ieškoti
42	WATER SHEDDER LARGE APERTURE REAR DOOR LH PP59385PA	–	–	Ieškoti
42	WATER SHEDDER LARGE APERTURE REAR DOOR RH PP59386PA	–	–	Ieškoti
29	WATER SHEDDER REAR DOOR LH LP10555PB	–	–	Ieškoti
29	WATER SHEDDER REAR DOOR RH LP10554PB	–	–	Ieškoti
41	WATER SHEDDER SMALL APERTURE REAR DOOR LH PP59383PA	–	–	Ieškoti
41	WATER SHEDDER SMALL APERTURE REAR DOOR RH PP59384PA	–	–	Ieškoti
