Bentley Continental T Mulliner rear quarter trim (continental t) – schema ir OEM kodai
Rear Quarter. 2 Door · 39 pozicijos · 0 skelbimų

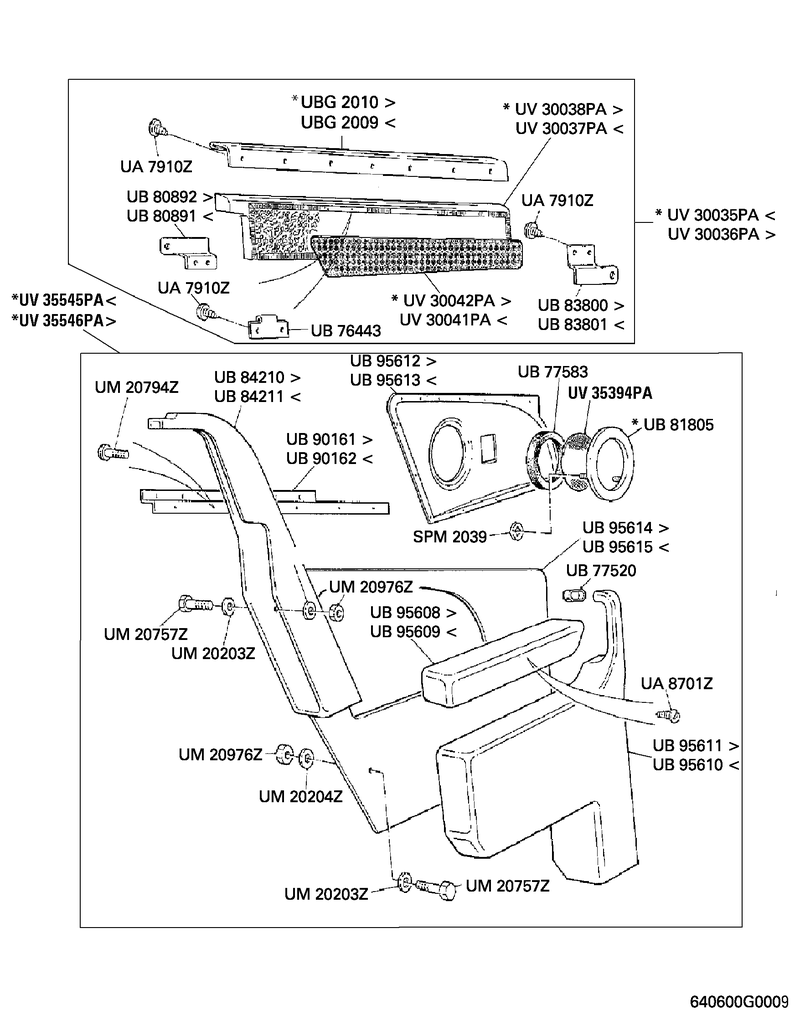

Visos Bentley Continental T Mulliner dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 21 | ASSY ARMREST REAR QUARTER LH UB95609 | – | – | Ieškoti |
| 22 | ASSY ARMREST REAR QUARTER RH UB95608 | – | – | Ieškoti |
| 34 | ASSY BEZEL CO-AXIAL SPEAKER UB81805 | – | – | Ieškoti |
| 36 | ASSY INFILL PANEL ARMREST RECESS REAR QUARTER LH UB95613 | – | – | Ieškoti |
| 37 | ASSY INFILL PANEL ARMREST RECESS REAR QUARTER RH UB95612 | – | – | Ieškoti |
| 32 | ASSY PANEL REAR QUARTER TRIM LH UB95615 | – | – | Ieškoti |
| 33 | ASSY PANEL REAR QUARTER TRIM RH UB95614 | – | – | Ieškoti |
| 42 | ASSY REAR QUARTER TRIM LH UB95611 | – | – | Ieškoti |
| 41 | ASSY REAR QUARTER TRIM RH UB95610 | – | – | Ieškoti |
| 1 | ASSY TRIM REAR QUARTER LH UV35547PA | – | – | Ieškoti |
| 1 | ASSY TRIM REAR QUARTER LH UV35545PA | – | – | Ieškoti |
| 2 | ASSY TRIM REAR QUARTER RH UV35546PA | – | – | Ieškoti |
| 2 | ASSY TRIM REAR QUARTER RH UV35548PA | – | – | Ieškoti |
| 4 | ASSY WAISTRAIL REAR QUARTER LH UV30035PA | – | – | Ieškoti |
| 7 | ASSY WAISTRAIL REAR QUARTER LH UV30037PA | – | – | Ieškoti |
| 5 | ASSY WAISTRAIL REAR QUARTER RH UV30036PA | – | – | Ieškoti |
| 6 | ASSY WAISTRAIL REAR QUARTER RH UV30038PA | – | – | Ieškoti |
| 27 | BEZEL GRAB HANDLE DOOR & REAR QUARTER TRIM UB77520 | – | – | Ieškoti |
| 18 | BOLT M4 X 20MM LONG UM20757Z | – | – | Ieškoti |
| 30 | BRACKET MOUNTING REAR QUARTER PANEL UPPER LH UB90161 | – | – | Ieškoti |
| 29 | BRACKET MOUNTING REAR QUARTER PANEL UPPER RH UB90162 | – | – | Ieškoti |
| 14 | BRACKET MOUNTING REAR QUARTER WAISTRAIL UB76443 | – | – | Ieškoti |
| 12 | BRACKET REAR QUARTER WAISTRAIL FIXING FRONT LH UB83801 | – | – | Ieškoti |
| 13 | BRACKET REAR QUARTER WAISTRAIL FIXING FRONT RH UB83800 | – | – | Ieškoti |
| 17 | BRACKET WAISTRAIL REAR QUARTER LH UB80891 | – | – | Ieškoti |
| 16 | BRACKET WAISTRAIL REAR QUARTER RH UB80892 | – | – | Ieškoti |
| 31 | CIRCLIP EXTERNAL 4MM NOMINAL SPM2093 | – | – | Ieškoti |
| 9 | ENGINE TURNED PANEL REAR QUARTER WAISTRAIL LH UV30041PA | – | – | Ieškoti |
| 8 | ENGINE TURNED PANEL REAR QUARTER WAISTRAIL RH UV30042PA | – | – | Ieškoti |
| 11 | FINISHER WAISTRAIL REAR QUARTER LH UBG2009 | – | – | Ieškoti |
| 10 | FINISHER WAISTRAIL REAR QUARTER RH UBG2010 | – | – | Ieškoti |
| 35 | GASKET SPEAKER REAR QUARTER PANEL UB77583 | – | – | Ieškoti |
| 3 | GRILLE COAXIAL SPEAKER UV35394PA | – | – | Ieškoti |
| 20 | NUT PLAIN M5 UM20976Z | – | – | Ieškoti |
| 40 | SCREW PAN HEAD M4 X 10MM LONG UM20794Z | – | – | Ieškoti |
| 15 | SCREW PAN HEAD NO.6 X .375 IN. LONG UA7910Z | – | – | Ieškoti |
| 39 | TRIMMED ASSY SQUAB INFILL REAR QUARTER TRIM LH UB84211 | – | – | Ieškoti |
| 38 | TRIMMED ASSY SQUAB INFILL REAR QUARTER TRIM RH UB84210 | – | – | Ieškoti |
| 19 | WASHER PLAIN M4 UM20203Z | – | – | Ieškoti |
| 24 | WASHER PLAIN M5 UM20204Z | – | – | Ieškoti |
| 28 | WOODSCREW ROUND HEAD NO.8 X .375 IN. LONG UA8701Z | – | – | Ieškoti |
