Bentley Continental T Mulliner adjustable rear seats (bentley motor cars sport style seats) – schema ir OEM kodai
Seats Rear & Parcel Shelf · 24 pozicijos · 0 skelbimų

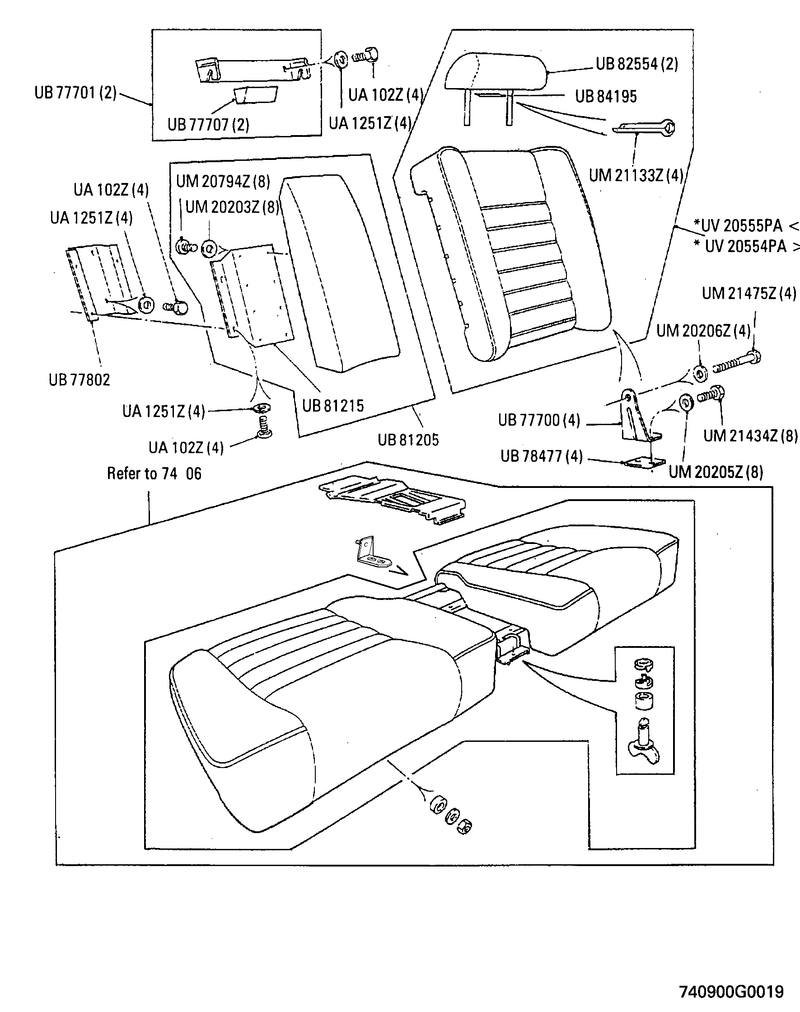

Visos Bentley Continental T Mulliner dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 16 | ASSY BRACKET ARMREST REAR SEAT SQUAB UB77802 | – | – | Ieškoti |
| 12 | ASSY COVER REAR SEAT SQUAB LH UV30207PA | – | – | Ieškoti |
| 12 | ASSY COVER REAR SEAT SQUAB LH UV20555PA | – | – | Ieškoti |
| 12 | ASSY COVER REAR SEAT SQUAB LH (WITH PIPING) UV20729PA | – | – | Ieškoti |
| 12 | ASSY COVER REAR SEAT SQUAB LH (WITH PIPING) UV30323PA | – | – | Ieškoti |
| 13 | ASSY COVER REAR SEAT SQUAB RH UV30208PA | – | – | Ieškoti |
| 13 | ASSY COVER REAR SEAT SQUAB RH UV20554PA | – | – | Ieškoti |
| 13 | ASSY COVER REAR SEAT SQUAB RH (WITH PIPING) UV30322PA | – | – | Ieškoti |
| 13 | ASSY COVER REAR SEAT SQUAB RH (WITH PIPING) UV20728PA | – | – | Ieškoti |
| 21 | ASSY REAR SQUAB CENTRE SECTION UB81205 | – | – | Ieškoti |
| 13 | ASSY SQUAB REAR SEAT UV20553PA | – | – | Ieškoti |
| 13 | ASSY SQUAB REAR SEAT UV30203PA | – | – | Ieškoti |
| 13 | ASSY SQUAB REAR SEAT (WITH PIPING) UV20727PA | – | – | Ieškoti |
| 13 | ASSY SQUAB REAR SEAT (WITH PIPING) UV30318PA | – | – | Ieškoti |
| 1 | ASSY TRIM HEADREST REAR SEAT UB82554 | – | – | Ieškoti |
| 3 | BOLT .250 UNF X .500 IN. LONG UA102Z | – | – | Ieškoti |
| 22 | BOLT .250 UNF X .500 IN. LONG UA102Z | – | – | Ieškoti |
| 9 | BOLT .250 UNF X .500 IN. LONG UA102Z | – | – | Ieškoti |
| 14 | BOLT M8 X 40MM LONG UM21475Z | – | – | Ieškoti |
| 17 | BRACKET MOUNTING CENTRE SECTION REAR SQUAB UB81215 | – | – | Ieškoti |
| 19 | BRACKET REAR SEAT SQUAB TO BODY LOWER UB77700 | – | – | Ieškoti |
| 2 | BRACKET REAR SEAT SQUAB TO BODY UPPER UB77701 | – | – | Ieškoti |
| 5 | BUMP STOP REAR SEAT SQUAB UPPER MOUNTING UB77707 | – | – | Ieškoti |
| 4 | CERTIFICATION LABEL REAR SEAT HEADREST UB84195 | – | – | Ieškoti |
| 1 | CHATSWORTH LOGO SEAT PANEL UB99406 | – | – | Ieškoti |
| 8 | SCREW PAN HEAD M4 X 10MM LONG UM20794Z | – | – | Ieškoti |
| 20 | SETSCREW M6 X 12MM LONG UM21434Z | – | – | Ieškoti |
| 23 | SPACER REAR SEAT SQUAB MOUNTING UB78477 | – | – | Ieškoti |
| 7 | SPLIT PIN 1.6MM DIAMETER X 25MM LONG UM21133Z | – | – | Ieškoti |
| 6 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 11 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 18 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 10 | WASHER PLAIN M4 UM20203Z | – | – | Ieškoti |
| 24 | WASHER PLAIN M6 UM20205Z | – | – | Ieškoti |
| 15 | WASHER PLAIN M8 UM20206Z | – | – | Ieškoti |
