Volvo S60 relės (2005 2 4) – schema ir OEM kodai
Relės · 7 pozicijos · 0 skelbimų

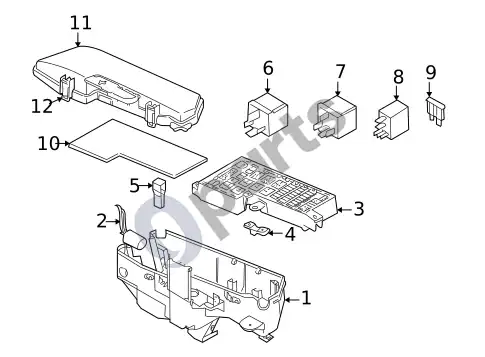

Visos Volvo S60 dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | Dėžė (2001-05 central electrical unit #2. Box. 2001-04 central electrical unit #2. 2003-05 central electrical unit #2. 2005 central electrical unit #2.) 9494210 | – | – | Ieškoti |
| 2 | Rezistorius (Central electrical unit #2, 2001-05. Relay control unit, 2006-14. Central electrical unit #2, 2001-04. Relay control unit, 2005-07, capacitor. Central electrical unit #2, 2003-05. Central electrical u) 9494209 | – | – | Ieškoti |
| 5 | Saugiklių ištraukėjas (Central electrical unit #2, 2001-05. Central electrical unit #2, 2001-04, fuse. Central electrical unit #2, 2003-05.) 1398318 | – | – | Ieškoti |
| 6 | Relė 30765045 | – | – | Ieškoti |
| 7 | Relė (Relay control unit, 2005-07, type 3. Instrument panel. code r18. Instrument panel. type 1. Relay control unit, 2006-14, type 2. Central electrical unit #2, 2005, t1-t5. Central electrical unit #2, 200) 9441160 | – | – | Ieškoti |
| 7 | Papildomos įrangos maitinimo relė 30765042 | – | – | Ieškoti |
| 9 | Saugiklis (Rear body. type 1 10 amp. Fuse box, trunk. type 1 10 amp. 2001-05 central electrical unit #2. 10 amp. 2001-04 central electrical unit #2. 10 amp. Fuse box #2. 10 amp. 1999-04 central electrical unit #) 967545 | – | – | Ieškoti |
| 9 | Saugiklis (Rear body. type 1 5 amp. Fuse box, trunk. type 1 5 amp. 2001-05 central electrical unit #2. 5 amp. 2001-04 central electrical unit #2. 5 amp. Fuse box #2. 5 amp. 1999-04 central electrical unit #2. 5) 967851 | – | – | Ieškoti |
| 9 | Saugiklis (Rear body. type 1 20 amp. 2001-05 central electrical unit #2. 20 amp. 2001-04 central electrical unit #2. 20 amp. 1999-04 central electrical unit #2. 20 amp. 2003-05 central electrical unit #2. 20 amp) 968547 | – | – | Ieškoti |
| 9 | Saugiklis 966329 | – | – | Ieškoti |
| 9 | Saugiklis 966330 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Fuse box #1. 40 amp. Instrument panel. type 3 40 amp. Luggage compartment fuse box. 40 amp. Engine compartment. type 3 40 amp.) 9441937 | – | – | Ieškoti |
| 9 | Universalus saugiklis 9441938 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Fuse box #1. 70 amp. Instrument panel. type 3 70 amp. Passenger compartment, without recharge, 70a. Luggage compartment fuse box. 70 amp. Engine compartment. type 3 70 amp. Engine compartment, 70a.) 9441939 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Fuse box #1. 100 amp. Instrument panel. type 3 100 amp. Luggage compartment fuse box. 100 amp. Engine compartment. type 3 100 amp.) 9441940 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Fuse box #1. 125 amp. Instrument panel. type 3 125 amp. Luggage compartment fuse box. 125 amp. Engine compartment. type 3 125 amp.) 9441941 | – | – | Ieškoti |
| 9 | Universalus saugiklis 966331 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Fuse box #1. 80 amp. Instrument panel. type 3 80 amp. Luggage compartment fuse box. 80 amp. Engine compartment. type 3 80 amp. 2003-05 central electrical unit #2. main 80 amp.) 9162327 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Fuse box #1. 50 amp. Instrument panel. type 3 50 amp. Luggage compartment fuse box. 50 amp. Engine compartment. type 3 50 amp.) 9162326 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Central electronic unit. 7.5 amp. Engine compartment. type 1 7.5 amp. Fuse box, engine compartment. 7.5 amp. 2006-14 central electrical unit #2. 7.5 amp. 2005-09 central electronic module. 7.5 amp. 20) 8688644 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Central electronic unit. 5 amp. Instrument panel, 5 amp. Engine compartment. type 1 5 amp. Fuse box, engine compartment. 5 amp. 2005-07 central electrical unit #2. 5 amp. Fuse box #2. 5 amp. 2005-09 c) 8676019 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Central electronic unit. 15 amp. Engine compartment, 15 amp. 2006-14 relay control unit. 15 amp. Instrument panel, 15 amp. 2005-07 relay control unit. 15 amp. FUSE BOX. small blade 15 amp. 2006-09 cen) 30873044 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Central electronic unit. 20 amp. 2006-14 relay control unit. 20 amp. 2005-07 relay control unit. 20 amp. FUSE BOX. small blade 20 amp. Instrument panel. 20 amp. 2006-09 central electrical unit #2. 20) 30872412 | – | – | Ieškoti |
| 9 | Universalus saugiklis (Central electronic unit. 10 amp. Fuse box, engine compartment. 10 amp. Instrument panel, 10 amp. Relay control unit, 2005-07, 10 amp. 2005-07 central electrical unit #2. 10 amp. FUSE BOX. small blade) 30872411 | – | – | Ieškoti |
| 11 | Saugiklių dėžės dangtis (Luggage compartment fuse box. Cover. Fuse box #1.) 9162323 | – | – | Ieškoti |
| 11 | Saugiklių dėžės dangtis (Cover. Central electrical unit #1. from ch# 184993.) 8645259 | – | – | Ieškoti |
| 11 | Saugiklių dėžės dangtelis, centrinis (Central electrical unit #1. Restrictor.) 9452548 | – | – | Ieškoti |
| 11 | Saugiklių dėžės dangtis (Central electrical unit #1. from ch# 147860.) 9494934 | – | – | Ieškoti |
