Ford Focus jungiklių ir svirtelių apdaila (1) – schema ir OEM kodai
Gaubtas, jungikliai ir svirtys · 13 pozicijų · 0 skelbimų

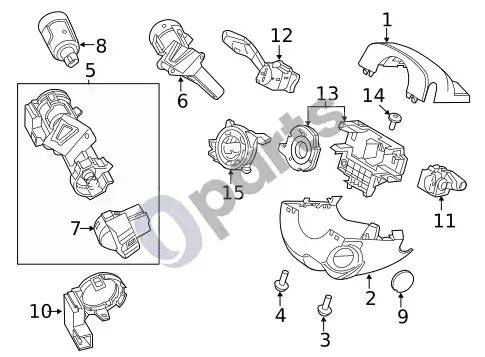

Visos Ford Focus dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | Viršutinis gaubtas (Transit Connect van. 2014-18. 2012-14. Focus Electric.) DM5Z-3530-AA | – | – | Ieškoti |
| 2 | Apatinis gaubtas (Transit Connect van. Without push button start. Without keyless start. Without keyless entry. 2012-14. 2014-18, without passive entry. Focus Electric.) CM5Z-3530-AD | – | – | Ieškoti |
| 3 | Lower Shroud Screw (M5x12mm. Lower shroud,screw. Upper components. 2011-13. To 12/08/2014. 2012-14.) W505142-S437M | – | – | Ieškoti |
| 3 | Vairo kolonėlės dangtelio varžtas (Lower shroud,retainer screw. To 12/08/2014. 2012-14.) W716081-S303 | – | – | Ieškoti |
| 5 | Uždegimo spynelės korpusas (Without passive entry, auto trans. Without keyless start.) BV6Z-3511-B | – | – | Ieškoti |
| 5 | Uždegimo spynelės korpusas (Without passive entry, manual trans.) BV6Z-3511-C | – | – | |
| 6 | Uždegimo spynelės korpusas (2012-14. With keyless start. With passive entry. 2014-18.) 6C6Z-19A464-A | – | – | Ieškoti |
| 7 | Uždegimo jungiklis DG9Z-11572-A | – | – | Ieškoti |
| 7 | Uždegimo jungiklis (Focus. Escape, Mariner. Fusion. Auto trans. 2013-16, manual trans. With manual trans. To 11/10/2011. From 11/10/2011.) DG9Z-11572-B | – | – | |
| 7 | Motorcraft™ uždegimo jungiklis (Focus. Escape, Mariner. Fusion. Auto trans. 2013-16, manual trans. With manual trans. To 11/10/2011. From 11/10/2011.) SW-6994 | – | – | |
| 7 | Motorcraft™ uždegimo jungiklis SW-6958 | – | – | Ieškoti |
| 8 | Motorcraft™ uždegimo spynelės cilindras (Without passive entry, from 05/22/2014. Focus. From 9/9/14. Fusion. Explorer. With keyless entry. Without keyless start. Escape. C-Max. With police interceptor, with police interceptor.) SW-7538 | – | – | Ieškoti |
| 8 | Uždegimo spynelės cilindras (2013-16. Escape. Focus. To 9/9/14. Fusion. Without passive entry to 05/22/2014. C-Max. Without keyless start.) CP9Z-11582-A | – | – | Ieškoti |
| 8 | Uždegimo spynelės cilindras (Without passive entry, from 05/22/2014. Focus. From 9/9/14. Fusion. Explorer. With keyless entry. Without keyless start. Escape. C-Max. With police interceptor, with police interceptor.) ES7Z-11582-A | – | – | Ieškoti |
| 8 | Motorcraft™ uždegimo spynelės cilindras (2013-16. Escape. Focus. To 9/9/14. Fusion. Without passive entry to 05/22/2014. C-Max. Without keyless start.) SW-6896 | – | – | Ieškoti |
| 9 | Dangtis (2012-14. With passive entry.) EV6Z-3E745-AA | – | – | Ieškoti |
| 11 | Motorcraft™ valytuvų jungiklis (Incl.Windshield Washer Switch. Exc.Rear Wiper. Focus. Transit Connect van. Without rain sensing wipers. Without rear window wiper.) SW-7467 | – | – | Ieškoti |
| 11 | Valytuvų jungiklis CV6Z17A553E | – | – | Ieškoti |
| 11 | Valytuvų jungiklis (Incl.Windshield Washer Switch. Exc.Rear Wiper. Focus. Transit Connect van. Without rain sensing wipers. Without rear window wiper.) F1FZ-17A553-A | – | – | Ieškoti |
| 12 | Posūkio signalo jungiklis (Lane Departure Warning. Dimmer,Turn Signal. Transit. With lane departure sys. With rear wiper, without rs. Focus. Without rs model. 2014-18. 2012-14.) CV6Z-13341-B | – | – | Ieškoti |
| 12 | Posūkio signalo jungiklis F1FZ-13341-A | – | – | Ieškoti |
| 13 | Kampo jutiklis (2014-18. Steering angle sensor. Transit Connect van. 2012-14. Focus Electric.) DV6Z-3F791-D | – | – | Ieškoti |
| 14 | Kampo jutiklio varžtas (Without RS. Lower shroud,retainer screw. 2014-18. 2012-14.) W712870-S303 | – | – | Ieškoti |
| 15 | Oro pagalvės spiralinis kontaktas (Transit Connect van. Driver 2 stage air bag. Escape. Modules & sensors without rs. C-Max. Focus Electric.) CV6Z-14A664-A | – | – | Ieškoti |
