Ford Focus jutikliai – schema ir OEM kodai

Jutikliai · 13 pozicijų · 0 skelbimų

Visos Ford Focus dalys →

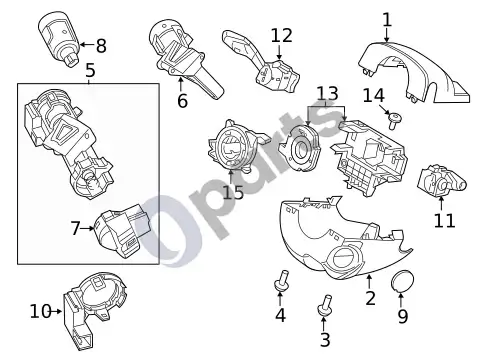

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.Detalė / OEM kodasKaina nuo
1Viršutinis gaubtas (Transit Connect van. 2014-18. 2012-14. Focus Electric.)
DM5Z-3530-AA		–Ieškoti
2Apatinis gaubtas (Transit Connect van. Without push button start. Without keyless start. Without keyless entry. 2012-14. 2014-18, without passive entry. Focus Electric.)
CM5Z-3530-AD		–Ieškoti
3Lower Shroud Screw (M5x12mm. Lower shroud,screw. Upper components. 2011-13. To 12/08/2014. 2012-14.)
W505142-S437M		–Ieškoti
3Vairo kolonėlės dangtelio varžtas (Lower shroud,retainer screw. To 12/08/2014. 2012-14.)
W716081-S303		–Ieškoti
5Uždegimo spynelės korpusas (Without passive entry, auto trans. Without keyless start.)
BV6Z-3511-B		–Ieškoti
5Uždegimo spynelės korpusas (Without passive entry, manual trans.)
BV6Z-3511-C		–
6Uždegimo spynelės korpusas (2012-14. With keyless start. With passive entry. 2014-18.)
6C6Z-19A464-A		–Ieškoti
7Uždegimo jungiklis
DG9Z-11572-A		–Ieškoti
7Uždegimo jungiklis (Focus. Escape, Mariner. Fusion. Auto trans. 2013-16, manual trans. With manual trans. To 11/10/2011. From 11/10/2011.)
DG9Z-11572-B		–
7Motorcraft™ uždegimo jungiklis (Focus. Escape, Mariner. Fusion. Auto trans. 2013-16, manual trans. With manual trans. To 11/10/2011. From 11/10/2011.)
SW-6994		–
7Motorcraft™ uždegimo jungiklis
SW-6958		–Ieškoti
8Motorcraft™ uždegimo spynelės cilindras (Without passive entry, from 05/22/2014. Focus. From 9/9/14. Fusion. Explorer. With keyless entry. Without keyless start. Escape. C-Max. With police interceptor, with police interceptor.)
SW-7538		–Ieškoti
8Uždegimo spynelės cilindras (2013-16. Escape. Focus. To 9/9/14. Fusion. Without passive entry to 05/22/2014. C-Max. Without keyless start.)
CP9Z-11582-A		–Ieškoti
8Uždegimo spynelės cilindras (Without passive entry, from 05/22/2014. Focus. From 9/9/14. Fusion. Explorer. With keyless entry. Without keyless start. Escape. C-Max. With police interceptor, with police interceptor.)
ES7Z-11582-A		–Ieškoti
8Motorcraft™ uždegimo spynelės cilindras (2013-16. Escape. Focus. To 9/9/14. Fusion. Without passive entry to 05/22/2014. C-Max. Without keyless start.)
SW-6896		–Ieškoti
9Dangtis (2012-14. With passive entry.)
EV6Z-3E745-AA		–Ieškoti
11Valytuvų jungiklis (Incl.Windshield Washer Switch. Exc.Rear Wiper. Focus. Transit Connect van. Without rain sensing wipers. Without rear window wiper.)
F1FZ-17A553-A		–Ieškoti
11Valytuvų jungiklis
CV6Z17A553E		–Ieškoti
11Motorcraft™ valytuvų jungiklis (Incl.Windshield Washer Switch. Exc.Rear Wiper. Focus. Transit Connect van. Without rain sensing wipers. Without rear window wiper.)
SW-7467		–Ieškoti
12Posūkio signalo jungiklis
F1FZ-13341-A		–Ieškoti
12Posūkio signalo jungiklis (Lane Departure Warning. Dimmer,Turn Signal. Transit. With lane departure sys. With rear wiper, without rs. Focus. Without rs model. 2014-18. 2012-14.)
CV6Z-13341-B		–Ieškoti
13Kampo jutiklis (2014-18. Steering angle sensor. Transit Connect van. 2012-14. Focus Electric.)
DV6Z-3F791-D		–Ieškoti
14Kampo jutiklio varžtas (Without RS. Lower shroud,retainer screw. 2014-18. 2012-14.)
W712870-S303		–Ieškoti
15Oro pagalvės spiralinis kontaktas (Transit Connect van. Driver 2 stage air bag. Escape. Modules & sensors without rs. C-Max. Focus Electric.)
CV6Z-14A664-A		–Ieškoti
