Bentley S2 Continental B series carburetter – schema ir OEM kodai

Fuel System · 52 pozicijos · 0 skelbimų

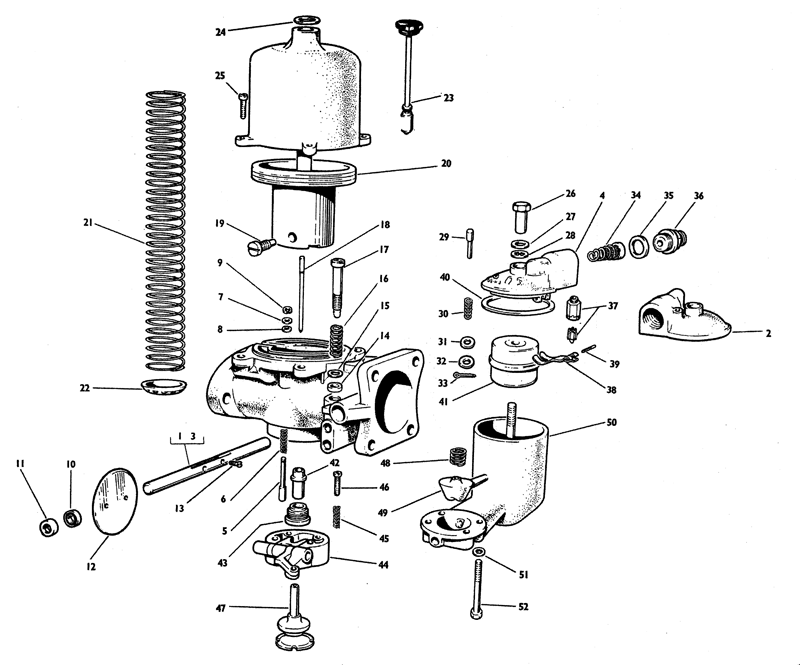

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
1	ASSY CARBURETTER A BANK UE8429	–	–	Ieškoti
3	ASSY CARBURETTER B BANK UE8430	–	–	Ieškoti
23	ASSY DAMPER CARBURETTER CD1585	–	–	Ieškoti
50	ASSY FLOAT CHAMBER CARBURETTER CD1498	–	–	Ieškoti
47	ASSY JET HOLDER CARBURETTER UE8420	–	–	Ieškoti
44	ASSY JET HOUSING CARBURETTER CD510	–	–	Ieškoti
20	ASSY PISTON & CHAMBER CARBURETTOR CD1496	–	–	Ieškoti
49	ASSY PLUG & TUBE CARBURETTER CD1864	–	–	Ieškoti
52	BOLT 2BA CARBURETTER FLOAT CHAMBER CD501	–	–	Ieškoti
11	CAP SEAL RETAINER THROTTLE SPINDLE CARBURETTER CD504	–	–	Ieškoti
18	CARBURETTER NEEDLE (SU 5H) RE15210	–	–	Ieškoti
9	CIRCLIP PISTON LIFT PIN CARBURETTER CD1495	–	–	Ieškoti
19	CLAMPING SCREW CARBURETTER NEEDLE CD517	–	–	Ieškoti
48	COMPRESSION SPRING CARBURETTER DIAPHRAGM UE8408	–	–	Ieškoti
24	FIBRE WASHER CARBURETTER DAMPER CD129	–	–	Ieškoti
28	FIBRE WASHER VENT CARBURETTER FLOAT CHAMBER RE7297	–	–	Ieškoti
34	FILTER CARBURETTER CD509	–	–	Ieškoti
41	FLOAT CARBURETTER RE7286	–	–	Ieškoti
38	HINGED LEVER CARBURETTER FLOAT RE7290	–	–	Ieškoti
35	JOINT WASHER CARBURETTER BANJO RE20597	–	–	Ieškoti
2	LID CARBURETTER FLOAT CHAMBER A BANK CD512	–	–	Ieškoti
4	LID CARBURETTER FLOAT CHAMBER B BANK CD513	–	–	Ieškoti
42	MAIN JET CARBURETTER CD502	–	–	Ieškoti
52	MODIFICATION KIT CARBURETTER CD1870	–	–	Ieškoti
37	NEEDLE & SEAT CARBURETTER FLOAT CHAMBER CD3514	–	–	Ieškoti
26	NUT VENT CARBURETTER FLOAT CHAMBER RE8383	–	–	Ieškoti
39	PIN CARBURETTER FLOAT LEVER CD515	–	–	Ieškoti
5	PIN PISTON LIFT CARBURETTER CD516	–	–	Ieškoti
21	PISTON SPRING CARBURETTER CD1494	–	–	Ieškoti
43	SCREW MAIN JET CARBURETTER CD519	–	–	Ieškoti
13	SCREW THROTTLE DISC RE8409	–	–	Ieškoti
25	SCREW VACUUM CHAMBER TO BODY CARBURETTER CD518	–	–	Ieškoti
10	SEAL THROTTLE SPINDLE CARBURETTER CD520	–	–	Ieškoti
40	SEALING WASHER CARBURETTER FLOAT CHAMBER RE7283	–	–	Ieškoti
31	SEALING WASHER LIFT PIN CARBURETTER FLOAT CD531	–	–	Ieškoti
14	SEALING WASHER SLOW RUN VALVE CARBURETTER CD532	–	–	Ieškoti
27	SEALING WASHER VENT CARBURETTER FLOAT CHAMBER RE7289	–	–	Ieškoti
17	SLOW RUN VALVE CARBURETTER CD527	–	–	Ieškoti
33	SPLIT PIN RE8382	–	–	Ieškoti
6	SPRING PISTON LIFT PIN CARBURETTER CD524	–	–	Ieškoti
16	SPRING SLOW RUN VALVE CARBURETTER CD526	–	–	Ieškoti
45	SPRING STOP SCREW CARBURETTER PISTON CD803	–	–	Ieškoti
30	SPRING TICKLER PIN CARBURETTER RE7293	–	–	Ieškoti
46	STOP SCREW CARBURETTER PISTON CD804	–	–	Ieškoti
12	THROTTLE DISC CARBURETTER RE14734	–	–	Ieškoti
1	THROTTLE SPINDLE CARBURETTER A BANK CD1500	–	–	Ieškoti
3	THROTTLE SPINDLE CARBURETTER B BANK CD1499	–	–	Ieškoti
29	TICKLER PIN CARBURETTER RE7284	–	–	Ieškoti
36	UNION MALE/MALE .375 BSP/.125 BSP UE8624	–	–	Ieškoti
22	WASHER CARBURETTER DAMPER RE14740	–	–	Ieškoti
51	WASHER CARBURETTER FLOAT CHAMBER CD528	–	–	Ieškoti
7	WASHER PISTON LIFT PIN CARBURETTER CD529	–	–	Ieškoti
32	WASHER PISTON LIFT PIN CARBURETTER CD529	–	–	Ieškoti
8	WASHER PISTON LIFT PIN CARBURETTER CD750	–	–	Ieškoti
15	WASHER SLOW RUN VALVE CARBURETTER CD530	–	–	Ieškoti
