Bentley S2 B series early electrical (except USA & canada) – schema ir OEM kodai
Air Conditioning · 43 pozicijos · 0 skelbimų

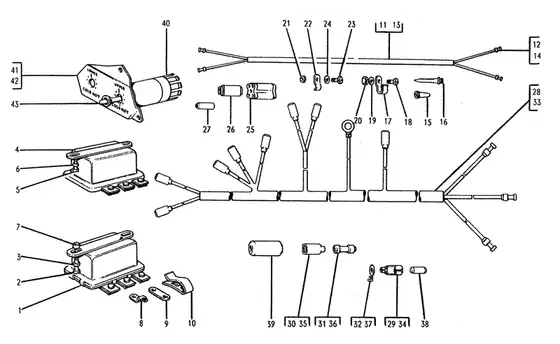

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 33 | ASSY ADAPTOR LOOM REFRIGERATION UD5739 | – | – | Ieškoti |
| 11 | ASSY CABLE THERMOSTAT SWITCH CROSS DUCT AIR CONDITIONING UD5145 | – | – | Ieškoti |
| 13 | ASSY CABLE THERMOSTAT SWITCH TRANSFER DUCT AIR CONDITIONING UD5146 | – | – | Ieškoti |
| 28 | ASSY LOOM LH VALANCE PLATE FRONT TO FACIA PANEL UD5574 | – | – | Ieškoti |
| 41 | ASSY PICTURE PLATE AIR CONDITIONING SWITCHES UD5073 | – | – | Ieškoti |
| 40 | ASSY SWITCH AIR CONDITIONING UD4601 | – | – | Ieškoti |
| 17 | CABLE CLIP UD6097 | – | – | Ieškoti |
| 16 | CABLE CLIP 2.250 IN. LONG UA6002R | – | – | Ieškoti |
| 37 | CABLE EYE RD7990 | – | – | Ieškoti |
| 32 | CABLE EYE RD7990 | – | – | Ieškoti |
| 10 | CLIP UD2906 | – | – | Ieškoti |
| 22 | CLIP RD6082 | – | – | Ieškoti |
| 9 | CONNECTING LINK RD3096 | – | – | Ieškoti |
| 25 | CONNECTOR 5 WAY RD6932 | – | – | Ieškoti |
| 7 | DISTANCE PIECE REAR WINDOW DEMIST RELAY UD6118 | – | – | Ieškoti |
| 39 | DOUBLE CONNECTOR UD1806 | – | – | Ieškoti |
| 26 | DOUBLE CONNECTOR UD1806 | – | – | Ieškoti |
| 43 | ESCUTCHEON FACIA SWITCHES UD1866 | – | – | Ieškoti |
| 15 | GROMMET UD5141 | – | – | Ieškoti |
| 21 | GROMMET RF7127 | – | – | Ieškoti |
| 30 | INSULATING SLEEVE LUCAR TERMINAL UD6119 | – | – | Ieškoti |
| 35 | INSULATING SLEEVE LUCAR TERMINAL UD6119 | – | – | Ieškoti |
| 31 | NIPPLE SNAP CONNECTOR UD2141 | – | – | Ieškoti |
| 36 | NIPPLE SNAP CONNECTOR UD2141 | – | – | Ieškoti |
| 14 | NIPPLE SNAP CONNECTOR UD2141 | – | – | Ieškoti |
| 12 | NIPPLE SNAP CONNECTOR UD2141 | – | – | Ieškoti |
| 20 | NUT 2BA K4006Z | – | – | Ieškoti |
| 42 | PICTURE PLATE AIR CONDITIONING SWITCHES UD5074 | – | – | Ieškoti |
| 1 | RELAY UD6250 | – | – | Ieškoti |
| 4 | RELAY UD4340 | – | – | Ieškoti |
| 23 | SCREW BINDING HEAD 2BA X .375 IN. LONG CS30541Z | – | – | Ieškoti |
| 18 | SCREW BINDING HEAD 2BA X .500 IN. LONG CS30542Z | – | – | Ieškoti |
| 2 | SCREW CHEESE HEAD 2BA X .375 IN. LONG K1907Z | – | – | Ieškoti |
| 5 | SCREW CHEESE HEAD 2BA X .700 IN. LONG K1952Z | – | – | Ieškoti |
| 38 | SNAP CONNECTOR RD7050 | – | – | Ieškoti |
| 27 | SNAP CONNECTOR RD7050 | – | – | Ieškoti |
| 29 | TERMINAL FEMALE LUCAR .250 IN. UD6072 | – | – | Ieškoti |
| 34 | TERMINAL FEMALE LUCAR .250 IN. UD6072 | – | – | Ieškoti |
| 8 | TERMINAL LUCAR BLADE UD6147 | – | – | Ieškoti |
| 6 | WASHER PLAIN .200 IN. I.D. K4404Z | – | – | Ieškoti |
| 3 | WASHER PLAIN .200 IN. I.D. K4404Z | – | – | Ieškoti |
| 19 | WASHER PLAIN 2BA K4452Z | – | – | Ieškoti |
| 24 | WASHER SPRING 2BA K9006Z | – | – | Ieškoti |
