Bentley S A series early oil lubrication of pendulum lever (steering box RHD power steering) – schema ir OEM kodai
Steering · 54 pozicijos · 0 skelbimų

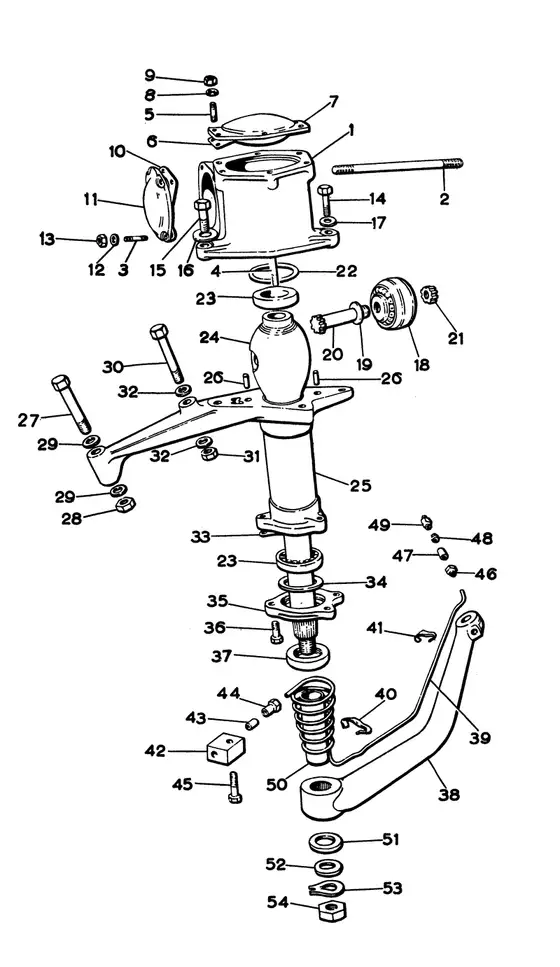

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 19 | ADJUSTING WASHER CAM ROLLER STEERING (.022 IN.) UR3330 | – | – | Ieškoti |
| 19 | ADJUSTING WASHER CAM ROLLER STEERING (.023 IN.) UR3331 | – | – | Ieškoti |
| 19 | ADJUSTING WASHER CAM ROLLER STEERING (.024 IN.) UR3332 | – | – | Ieškoti |
| 19 | ADJUSTING WASHER CAM ROLLER STEERING (.025 IN.) UR3333 | – | – | Ieškoti |
| 19 | ADJUSTING WASHER CAM ROLLER STEERING (.026 IN.) UR3334 | – | – | Ieškoti |
| 19 | ADJUSTING WASHER CAM ROLLER STEERING (.027 IN.) UR3335 | – | – | Ieškoti |
| 34 | ADJUSTING WASHER ROCKING SHAFT STEERING BOX UR706 | – | – | Ieškoti |
| 50 | ANTI RATTLE SLEEVE CHASSIS LUBRICATION PIPE STEERING BOX UR3788 | – | – | Ieškoti |
| 25 | ASSY MOUNTING BRACKET STEERING BOX UR1590 | – | – | Ieškoti |
| 18 | ASSY ROLLER STEERING CAM UR2776 | – | – | Ieškoti |
| 1 | ASSY STEERING BOX RH254 | – | – | Ieškoti |
| 1 | ASSY STEERING BOX UR2043 | – | – | Ieškoti |
| 23 | BEARING STEERING BOX RF9059 | – | – | Ieškoti |
| 36 | BOLT .250 UNF X .875 IN. LONG UA105Z | – | – | Ieškoti |
| 45 | BOLT .250 UNF X 1.125 IN. LONG UA107Z | – | – | Ieškoti |
| 14 | BOLT .375 UNF X .750 IN. LONG UA204Z | – | – | Ieškoti |
| 30 | BOLT .375 UNF X 2.500 IN. LONG UA218Z | – | – | Ieškoti |
| 20 | BOLT ROCKING SHAFT STEERING BOX UR719 | – | – | Ieškoti |
| 15 | BOLT STEERING BOX MOUNTING UR711 | – | – | Ieškoti |
| 27 | BOLT STEERING BOX MOUNTING UR437 | – | – | Ieškoti |
| 1 | CASING STEERING BOX UR1584 | – | – | Ieškoti |
| 39 | CHASSIS LUBRICATION PIPE PENDULUM LEVER STEERING BOX UR3350 | – | – | Ieškoti |
| 40 | CLIP OIL PIPE PENDULUM LEVER STEERING UR1073 | – | – | Ieškoti |
| 41 | CLIP OIL PIPE PENDULUM LEVER STEERING UR1074 | – | – | Ieškoti |
| 42 | CONNECTOR FUEL PIPES 2 WAY UR2778 | – | – | Ieškoti |
| 26 | DOWEL UR229 | – | – | Ieškoti |
| 11 | END COVER STEERING BOX UR1676 | – | – | Ieškoti |
| 7 | END PLATE & BEARING HOUSING STEERING BOX UR1587 | – | – | Ieškoti |
| 10 | GASKET END COVER STEERING BOX UR3139 | – | – | Ieškoti |
| 33 | GASKET RETAINING FLANGE OIL SEAL STEERING BOX UR3689 | – | – | Ieškoti |
| 54 | LOCK NUT PLAIN .750 UNF UA357Z | – | – | Ieškoti |
| 53 | LOCK WASHER SHAFT STEERING DAMPER G56472 | – | – | Ieškoti |
| 6 | NO DESCRIPTION UR3138 | – | – | Ieškoti |
| 31 | NUT 0.375 UNF RE22428 | – | – | Ieškoti |
| 9 | NUT PLAIN .250 UNF UA301Z | – | – | Ieškoti |
| 28 | NUT PLAIN .500 UNF UA305Z | – | – | Ieškoti |
| 13 | NUT PLAIN LOCK .3125 UNF UA352Z | – | – | Ieškoti |
| 21 | NUT ROCKING SHAFT STEERING BOX UR716 | – | – | Ieškoti |
| 22 | O RING 2.198 IN. I.D. X .098 IN. UR3175 | – | – | Ieškoti |
| 37 | OIL SEAL STEERING BOX UR3344 | – | – | Ieškoti |
| 37 | OIL SEAL STEERING BOX UR717 | – | – | Ieškoti |
| 38 | PENDULUM LEVER STEERING BOX UR240 | – | – | Ieškoti |
| 47 | PIPE OLIVE RF6783 | – | – | Ieškoti |
| 43 | PIPE OLIVE RF6783 | – | – | Ieškoti |
| 48 | RETAINING CUP CHASSIS LUBRICATION PIPE RF6777 | – | – | Ieškoti |
| 35 | RETAINING FLANGE OIL SEAL STEERING BOX UR3347 | – | – | Ieškoti |
| 24 | ROCKING SHAFT STEERING BOX UR685 | – | – | Ieškoti |
| 49 | STRAIGHT JUNCTION CHASSIS LUBRICATION PIPES (MALE/MALE .125 BSP) UR1259 | – | – | Ieškoti |
| 5 | STUD .250 UNF X 1.125 IN. LONG UA852Z | – | – | Ieškoti |
| 3 | STUD .3125 UNF X 1.250 IN. LONG UA902Z | – | – | Ieškoti |
| 4 | STUD .375 UNF X 1.750 IN. LONG UA954Z | – | – | Ieškoti |
| 2 | STUD STEERING BOX UR2197 | – | – | Ieškoti |
| 44 | UNION NUT UR2541 | – | – | Ieškoti |
| 46 | UNION NUT (.125 BSP) UR2647 | – | – | Ieškoti |
| 8 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 12 | WASHER PLAIN .328 IN. I.D. UA1252Z | – | – | Ieškoti |
| 32 | WASHER PLAIN .390 IN. I.D. UA1253Z | – | – | Ieškoti |
| 17 | WASHER PLAIN .390 IN. I.D. UA1253Z | – | – | Ieškoti |
| 29 | WASHER PLAIN .515 IN. I.D. UA1255Z | – | – | Ieškoti |
| 16 | WASHER PLAIN .651 IN. I.D. UA1256Z | – | – | Ieškoti |
| 52 | WASHER PLAIN .775 IN. K4431Z | – | – | Ieškoti |
| 51 | WASHER ROCKING SHAFT & PENDULUM LEVER STEERING BOX UR2821 | – | – | Ieškoti |
