Bentley Mulsanne L half shaft with lobro joint – schema ir OEM kodai

Final Drive · 30 pozicijų · 0 skelbimų

Visos Bentley Mulsanne L dalys →

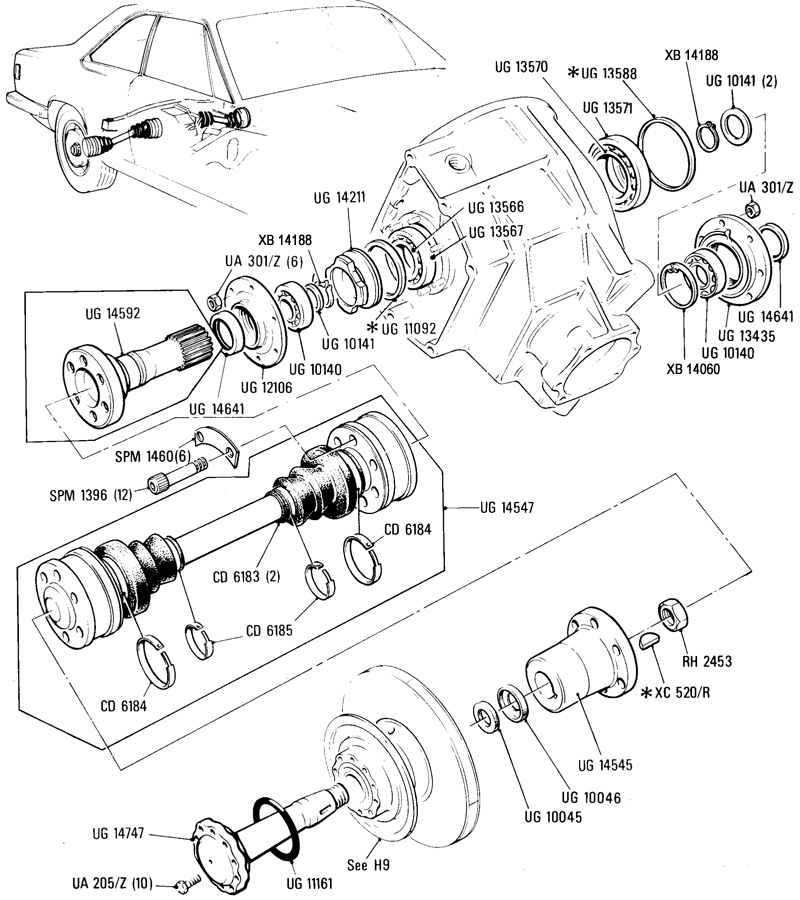

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.Detalė / OEM kodasKaina nuo
1ADJUSTING WASHER BELLEVILLE WASHER FINAL DRIVE (.250 IN.)
UG11092		–Ieškoti
1ADJUSTING WASHER BELLEVILLE WASHER FINAL DRIVE (.260 IN.)
UG11093		–Ieškoti
1ADJUSTING WASHER BELLEVILLE WASHER FINAL DRIVE (.270 IN.)
UG14204		–Ieškoti
1ADJUSTING WASHER BELLEVILLE WASHER FINAL DRIVE (.280 IN.)
UG14205		–Ieškoti
1ADJUSTING WASHER BELLEVILLE WASHER FINAL DRIVE (.290 IN.)
UG14206		–Ieškoti
1ADJUSTING WASHER BELLEVILLE WASHER FINAL DRIVE (.300 IN.)
UG14207		–Ieškoti
1ADJUSTING WASHER BELLEVILLE WASHER FINAL DRIVE (.310 IN.)
UG14208		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE BEARING (.223 IN.)
UG13588		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE BEARING (.227 IN.)
UG13589		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE BEARING (.231 IN.)
UG13590		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE BEARING (.235 IN.)
UG13591		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE BEARING (.239 IN.)
UG13592		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE BEARING (.243 IN.)
UG13593		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE BEARING (.247 IN.)
UG13594		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE BEARING (.251 IN.)
UG13595		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE BEARING (.255 IN.)
UG13596		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE BEARING (.260 IN.)
UG13597		–Ieškoti
3ASSY CARRIER & BELLEVILLE WASHER FINAL DRIVE
UG14211		–Ieškoti
4ASSY DRIVESHAFT
UG14547		–Ieškoti
5ASSY OUTPUT SHAFT FINAL DRIVE
UG14592		–Ieškoti
6BEARING HOUSING FINAL DRIVE LH
UG13435		–Ieškoti
7BEARING OUTPUT SHAFT FINAL DRIVE
UG10140		–Ieškoti
8BELLOWS
CD6183		–Ieškoti
9BOLT .375 UNF X .875 IN. LONG
UA205Z		–Ieškoti
10CAPSCREW SOCKET HEAD M10 X 60MM LONG
SPM1396		–Ieškoti
11CIRCLIP EXTERNAL 1.395 IN. DIAMETER
XB14188		–Ieškoti
12CIRCLIP INTERNAL 2.802 IN. DIAMETER
XB14060		–Ieškoti
13CLIP
CD6184		–Ieškoti
14CLIP
CD6185		–Ieškoti
15CONE BEARING FINAL DRIVE OUTPUT SHAFT
UG13570		–Ieškoti
16CONE BEARING FINAL DRIVE OUTPUT SHAFT
UG13566		–Ieškoti
17COUPLING DRIVESHAFT REAR HUB
UG14545		–Ieškoti
18CUP BEARING FINAL DRIVE OUTPUT SHAFT
UG13567		–Ieškoti
19CUP BEARING FINAL DRIVE OUTPUT SHAFT
UG13571		–Ieškoti
20DRIVESHAFT REAR HUB
UG14747		–Ieškoti
21HOUSING OUTPUT SHAFT BEARING FINAL DRIVE
UG12106		–Ieškoti
22HOUSING REAR HUB SEAL
UG10046		–Ieškoti
23KIT HUB NUT
RH2453		–Ieškoti
24NUT PLAIN .250 UNF
UA301Z		–Ieškoti
25O RING 3.125 IN. I.D. X .093 IN.
UG11161		–Ieškoti
26OIL SEAL OUTPUT SHAFT FINAL DRIVE
UG14641		–Ieškoti
27SEAL (FELT) REAR HUB
UG10045		–Ieškoti
28SPACER BEARING OUTPUT SHAFT FINAL DRIVE
UG10141		–Ieškoti
29WASHER
SPM1460		–Ieškoti
30WOODRUFF KEY .875 IN. DIAMETER X .2185 IN. THICK
XC520R		–Ieškoti
30WOODRUFF KEY .875 IN. DIAMETER X .2190 IN. THICK
XC521R		–Ieškoti
30WOODRUFF KEY .875 IN. DIAMETER X .2195 IN. THICK
XC522R		–Ieškoti
30WOODRUFF KEY .875 IN. DIAMETER X .2200 IN. THICK
XC523R		–Ieškoti
