Bentley Continental R Mulliner evap loss obd 2 system – schema ir OEM kodai

Emission Control · 24 pozicijos · 0 skelbimų

Visos Bentley Continental R Mulliner dalys →

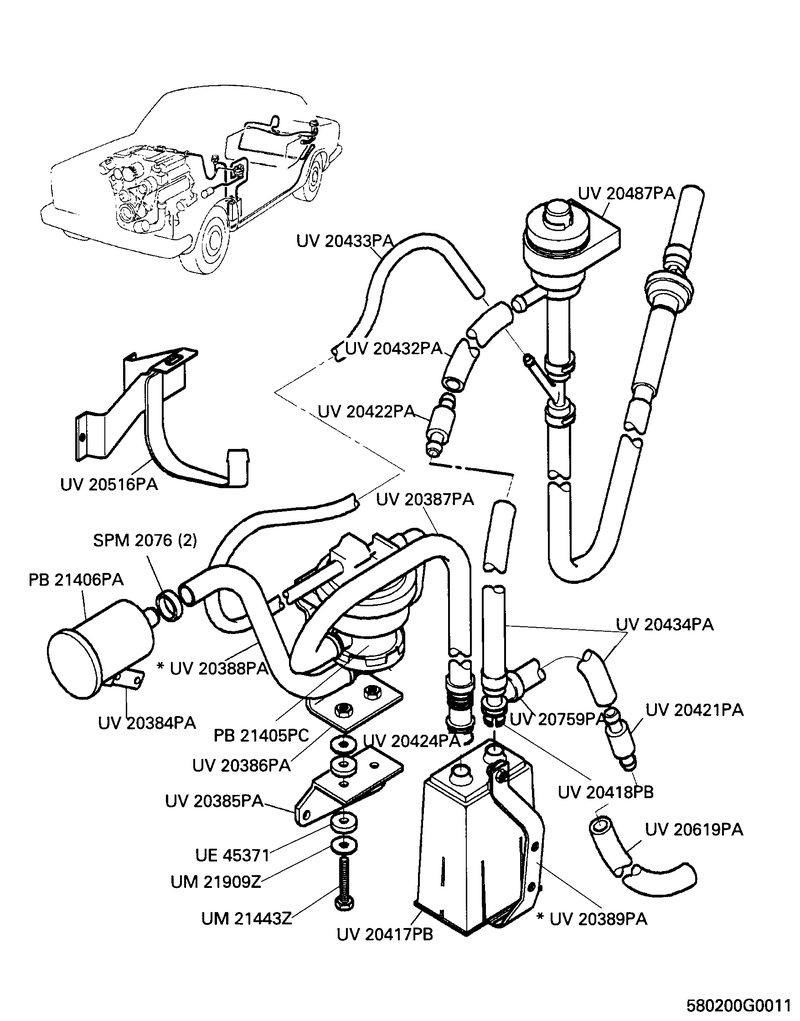

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
5	ASSY BRACKET ENGINE SIDE COVER & PURGE VALVE UV20516PA	–	–	Ieškoti
22	ASSY BRACKET EVAPORATIVE LOSS CANISTER UV20389PA	–	–	Ieškoti
22	ASSY BRACKET EVAPORATIVE LOSS CANISTER UV40025PA	–	–	Ieškoti
13	ASSY BRACKET INTAKE FILTER LEAK DETECTION PUMP UV20384PA	–	–	Ieškoti
17	ASSY BRACKET LEAK DETECTION PUMP UV20385PA	–	–	Ieškoti
16	ASSY BRACKET LEAK DETECTION PUMP UB99229	–	–	Ieškoti
16	ASSY BRACKET LEAK DETECTION PUMP UV20386PA	–	–	Ieškoti
1	ASSY PURGE CONTROL VALVE & NON RETURN VALVE UV20487PA	–	–	Ieškoti
21	BOLT M6 X 30MM LONG UM21443Z	–	–	Ieškoti
23	CANISTER EVAPORATIVE LOSS UV20417PB	–	–	Ieškoti
11	CONNECTOR EVAPORATIVE LOSS CANISTER UV20418PB	–	–	Ieškoti
14	CONNECTOR EVAPORATIVE LOSS CANISTER UV20424PA	–	–	Ieškoti
8	FILTER LEAK DETECTION PUMP PB21406PA	–	–	Ieškoti
4	HOSE ADAPTOR 10MM TO 6MM UV20422PA	–	–	Ieškoti
12	HOSE ADAPTOR 10MM TO 8MM UV20421PA	–	–	Ieškoti
3	HOSE ADAPTOR TO PURGE CONTROL VALVE UV20432PA	–	–	Ieškoti
19	HOSE ADAPTOR TO SILL PIPE EVAPORATIVE LOSS UV20619PA	–	–	Ieškoti
6	HOSE CANISTER TO LEAK DETECTION PUMP UB99230	–	–	Ieškoti
7	HOSE CLIP 22/26MM SPM2076	–	–	Ieškoti
24	HOSE CLIP COBRA 15/8 UV20759PA	–	–	Ieškoti
9	HOSE EVAPORATIVE LOSS CANISTER TO ADAPTOR UV20434PA	–	–	Ieškoti
6	HOSE EVAPORATIVE LOSS CANISTER TO LEAK DETECTION PUMP UV20387PA	–	–	Ieškoti
10	HOSE LEAK DETECTION PUMP TO INTAKE FILTER UV40026PA	–	–	Ieškoti
10	HOSE LEAK DETECTION PUMP TO INTAKE FILTER UV20388PA	–	–	Ieškoti
2	HOSE LEAK DETECTION PUMP TO PURGE VALVE UV20433PA	–	–	Ieškoti
15	LEAK DETECTION PUMP PB21405PC	–	–	Ieškoti
18	RESILIENT MOUNT UE45371	–	–	Ieškoti
20	SPRING WASHER M6 UM21909Z	–	–	Ieškoti
