Bentley Continental R Millennium speakers – schema ir OEM kodai
Electrical · 19 pozicijų · 0 skelbimų

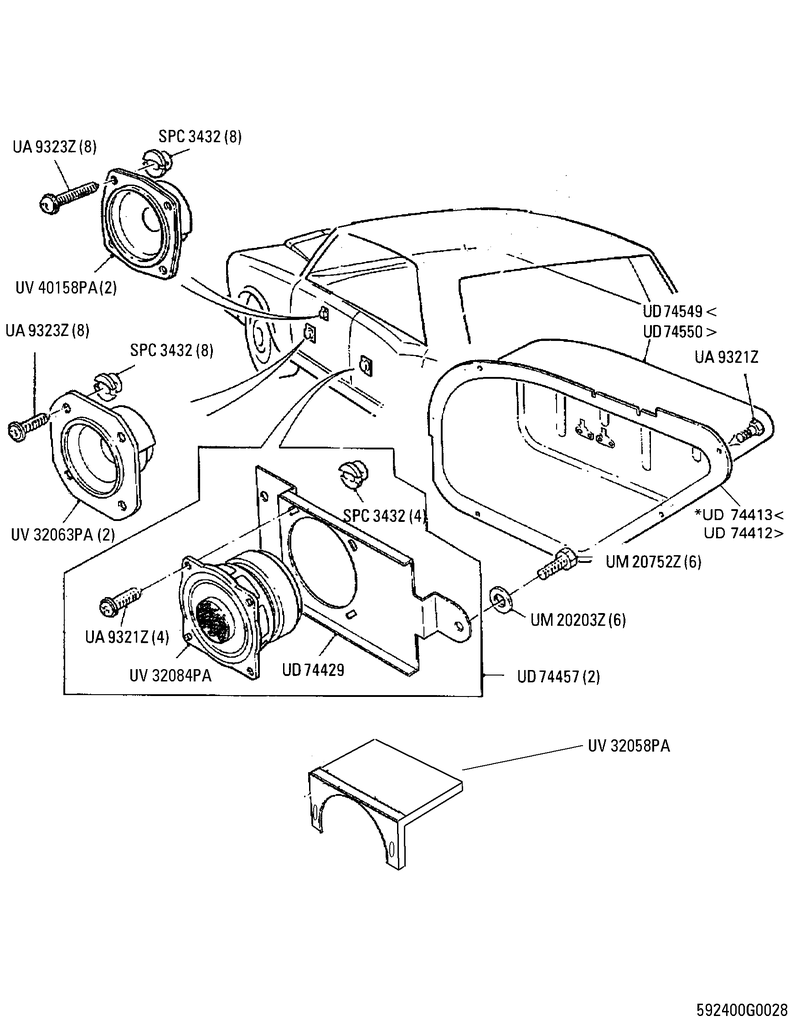

Visos Bentley Continental R Millennium dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 12 | ASSY BASS SPEAKER (MISSION) UV32063PA | – | – | Ieškoti |
| 8 | ASSY COVER BASS SPEAKER UV32058PA | – | – | Ieškoti |
| 7 | ASSY MOUNTING BRACKET & COAXIAL SPEAKER UD74457 | – | – | Ieškoti |
| 1 | ASSY SPEAKER HOUSING REAR QUARTER LH UD74550 | – | – | Ieškoti |
| 2 | ASSY SPEAKER HOUSING REAR QUARTER RH UD74549 | – | – | Ieškoti |
| 13 | ASSY SPEAKER TWEETER (MISSION) UV40158PA | – | – | Ieškoti |
| 10 | COAXIAL BASS SPEAKER (MISSION) UV32084PA | – | – | Ieškoti |
| 9 | MOUNTING BRACKET COAXIAL SPEAKER UNIT UD74429 | – | – | Ieškoti |
| 19 | NUT LOKUT SPC3432 | – | – | Ieškoti |
| 18 | NUT LOKUT SPC3432 | – | – | Ieškoti |
| 14 | NUT LOKUT SPC3432 | – | – | Ieškoti |
| 11 | SCREW FLANGE HEAD NO.8 X .500 IN. LONG UA9321Z | – | – | Ieškoti |
| 16 | SCREW FLANGE HEAD NO.8 X .500 IN. LONG UA9321Z | – | – | Ieškoti |
| 15 | SCREW FLANGE HEAD NO.8 X .750 IN. LONG UA9323Z | – | – | Ieškoti |
| 17 | SCREW FLANGE HEAD NO.8 X .750 IN. LONG UA9323Z | – | – | Ieškoti |
| 5 | SETSCREW M4 X 8MM LONG UM20752Z | – | – | Ieškoti |
| 4 | SPEAKER HOUSING REAR LH UD74413 | – | – | Ieškoti |
| 3 | SPEAKER HOUSING REAR RH UD74412 | – | – | Ieškoti |
| 6 | WASHER PLAIN M4 UM20203Z | – | – | Ieškoti |
