Bentley Continental R Final Series gearchange selector – schema ir OEM kodai

Emission Control · 27 pozicijos · 0 skelbimų

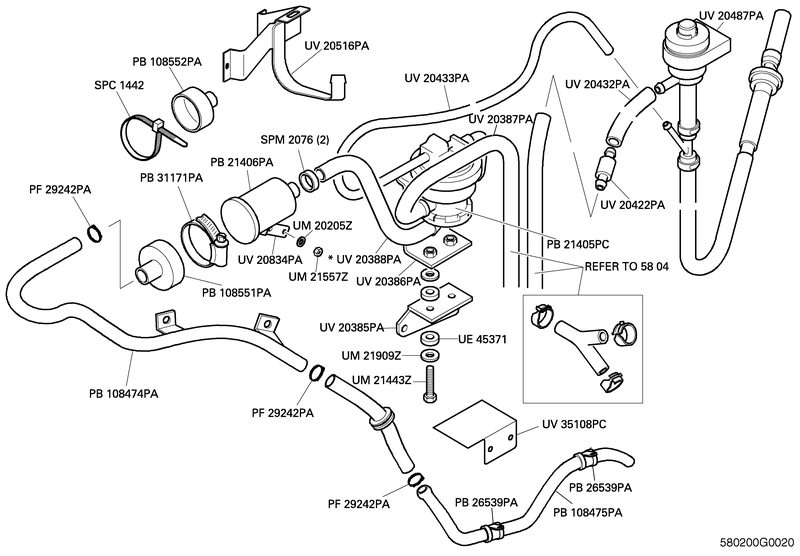

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
16	ASSY BOOT FILTER PB108552PA	–	–	Ieškoti
5	ASSY BRACKET ENGINE SIDE COVER & PURGE VALVE UV20516PA	–	–	Ieškoti
9	ASSY BRACKET INTAKE FILTER LEAK DETECTION PUMP UV20384PA	–	–	Ieškoti
12	ASSY BRACKET LEAK DETECTION PUMP UV20385PA	–	–	Ieškoti
11	ASSY BRACKET LEAK DETECTION PUMP UV20386PA	–	–	Ieškoti
1	ASSY PURGE CONTROL VALVE & NON RETURN VALVE UV20487PA	–	–	Ieškoti
15	BOLT M6 X 30MM LONG UM21443Z	–	–	Ieškoti
17	CABLE TIE 10 IN. LONG SPC1442	–	–	Ieškoti
18	CLIP HOSE 21.5/23.0 MM PF29242PA	–	–	Ieškoti
22	COVER PLATE HOSE PROTECTION UV35108PC	–	–	Ieškoti
7	FILTER LEAK DETECTION PUMP PB21406PA	–	–	Ieškoti
4	HOSE ADAPTOR 10MM TO 6MM UV20422PA	–	–	Ieškoti
3	HOSE ADAPTOR TO PURGE CONTROL VALVE UV20432PA	–	–	Ieškoti
24	HOSE CLIP (COBRA 64/9) PB31171PA	–	–	Ieškoti
6	HOSE CLIP 22/26MM SPM2076	–	–	Ieškoti
27	HOSE EVAPORATIVE LOSS CANISTER TO LEAK DETECTION PUMP UV20387PA	–	–	Ieškoti
25	HOSE LEAK DETECTION PUMP FILTER PB108551PA	–	–	Ieškoti
8	HOSE LEAK DETECTION PUMP TO INTAKE FILTER UV20388PA	–	–	Ieškoti
2	HOSE LEAK DETECTION PUMP TO PURGE VALVE UV20433PA	–	–	Ieškoti
10	LEAK DETECTION PUMP PB21405PC	–	–	Ieškoti
26	NUT PLAIN M6 UM21557Z	–	–	Ieškoti
21	P CLIP PB26539PA	–	–	Ieškoti
19	PIPE FILTER TO HOSE LEAK DETECTION PUMP PB108474PA	–	–	Ieškoti
20	PIPE HOSE TO VENT LEAK DETECTION PUMP PB108475PA	–	–	Ieškoti
13	RESILIENT MOUNT UE45371	–	–	Ieškoti
14	SPRING WASHER M6 UM21909Z	–	–	Ieškoti
23	WASHER PLAIN M6 UM20205Z	–	–	Ieškoti
