Bentley Azure Final Series Luxury rear quarter trim (azure & corniche(00)) – schema ir OEM kodai
Rear Quarter. 2 Door · 13 pozicijų · 0 skelbimų

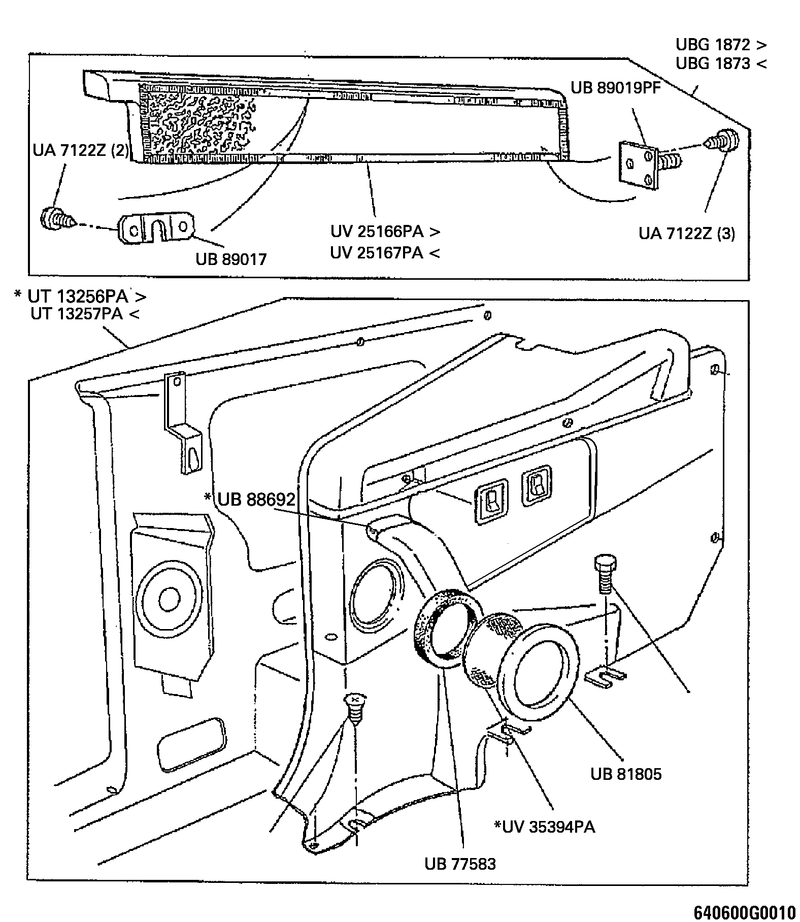

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 4 | ASSY BEZEL CO-AXIAL SPEAKER UB81805 | – | – | Ieškoti |
| 4 | ASSY BEZEL SPEAKER UV25148PA | – | – | Ieškoti |
| 13 | ASSY REAR QUARTER TRIM LH UT13257PA | – | – | Ieškoti |
| 13 | ASSY REAR QUARTER TRIM LH UV35525PA | – | – | Ieškoti |
| 12 | ASSY REAR QUARTER TRIM RH UV35524PA | – | – | Ieškoti |
| 12 | ASSY REAR QUARTER TRIM RH UT13256PA | – | – | Ieškoti |
| 1 | ASSY WAISTRAIL REAR QUARTER LH UBG1873 | – | – | Ieškoti |
| 7 | ASSY WAISTRAIL REAR QUARTER LH UV25223PA | – | – | Ieškoti |
| 7 | ASSY WAISTRAIL REAR QUARTER LH UV25167PA | – | – | Ieškoti |
| 2 | ASSY WAISTRAIL REAR QUARTER RH UBG1872 | – | – | Ieškoti |
| 6 | ASSY WAISTRAIL REAR QUARTER RH UV25222PA | – | – | Ieškoti |
| 6 | ASSY WAISTRAIL REAR QUARTER RH UV25166PA | – | – | Ieškoti |
| 14 | ESCUTCHEON GRAB HANDLE REAR QUARTER UB88692 | – | – | Ieškoti |
| 11 | FIXING BRACKET WAISTRAIL REAR QUARTER UB89017 | – | – | Ieškoti |
| 9 | FIXING PLATE REAR QUARTER WAISTRAIL REAR UB89019PF | – | – | Ieškoti |
| 5 | GASKET SPEAKER REAR QUARTER PANEL UB77583 | – | – | Ieškoti |
| 3 | GRILLE COAXIAL SPEAKER UV35394PA | – | – | Ieškoti |
| 3 | GRILLE COAXIAL SPEAKER UV35523PA | – | – | Ieškoti |
| 10 | SCREW FLANGE HEAD NO.6 X .375 IN. LONG UA7122Z | – | – | Ieškoti |
| 1 | WAISTRAIL CHATSWORTH LOGO REAR LH UB99405 | – | – | Ieškoti |
| 2 | WAISTRAIL CHATSWORTH LOGO REAR RH UB99404 | – | – | Ieškoti |
| 1 | WAISTRAIL REAR QUARTER LH BENTLEY BADGE UV31101PA | – | – | Ieškoti |
| 1 | WAISTRAIL REAR QUARTER LH BENTLEY LOGO UV31081PA | – | – | Ieškoti |
| 2 | WAISTRAIL REAR QUARTER RH BENTLEY BADGE UV31100PA | – | – | Ieškoti |
| 2 | WAISTRAIL REAR QUARTER RH BENTLEY LOGO UV31080PA | – | – | Ieškoti |
