Bentley Arnage Red Label condenser – schema ir OEM kodai
Air Conditioning · 20 pozicijų · 0 skelbimų

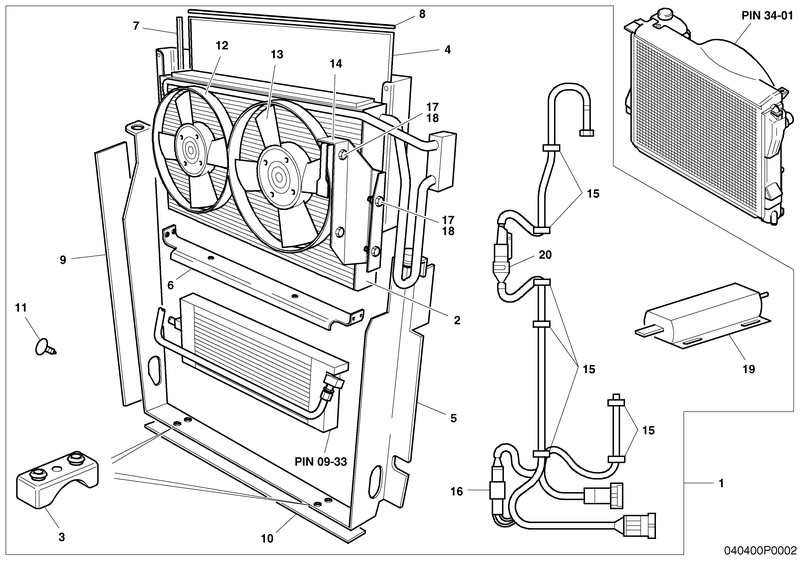

Visos Bentley Arnage Red Label dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 14 | ASSY BRACKET FAN PA60002PA | – | – | Ieškoti |
| 1 | ASSY COOLING PACK PA56469PB | – | – | Ieškoti |
| 12 | ASSY COVER FAN PA60000PA | – | – | Ieškoti |
| 13 | ASSY MOTOR FAN PA60001PA | – | – | Ieškoti |
| 2 | ASSY-CONDENSER-HVAC-L675 PA55652PB | – | – | Ieškoti |
| 6 | BRACKET FAN COWL CONDENSER PA56323PA | – | – | Ieškoti |
| 15 | BRACKET HARNESS PA60003PA | – | – | Ieškoti |
| 20 | CORD CLAMP PA60008PA | – | – | Ieškoti |
| 5 | COWL-MTG-CONDENSER-HVAC-L675 PA55651PB | – | – | Ieškoti |
| 4 | DUCT CONDENSER TO RADIATOR PA56595PB | – | – | Ieškoti |
| 11 | FIR TREE FASTENER UT11922PA | – | – | Ieškoti |
| 10 | GASKET CONDENSER COWL BOTTOM PA56622PA | – | – | Ieškoti |
| 9 | GASKET CONDENSER COWL SIDE PA56621PA | – | – | Ieškoti |
| 7 | GASKET CONDENSER DUCT SIDE PA56619PA | – | – | Ieškoti |
| 8 | GASKET CONDENSER DUCT TOP BOTTOM PA56620PA | – | – | Ieškoti |
| 16 | LOOM COOLING PACK PA60004PA | – | – | Ieškoti |
| 3 | MOUNT COWL CONDENSOR PA56322PA | – | – | Ieškoti |
| 19 | RESISTOR ASSY PA60007PA | – | – | Ieškoti |
| 17 | SCREW B6 X 12MM PA60005PA | – | – | Ieškoti |
| 18 | WASHER W6 PA60006PA | – | – | Ieškoti |
