Bentley Arnage Green Label fuel pump & fittings – schema ir OEM kodai
Fuel System · 20 pozicijų · 0 skelbimų

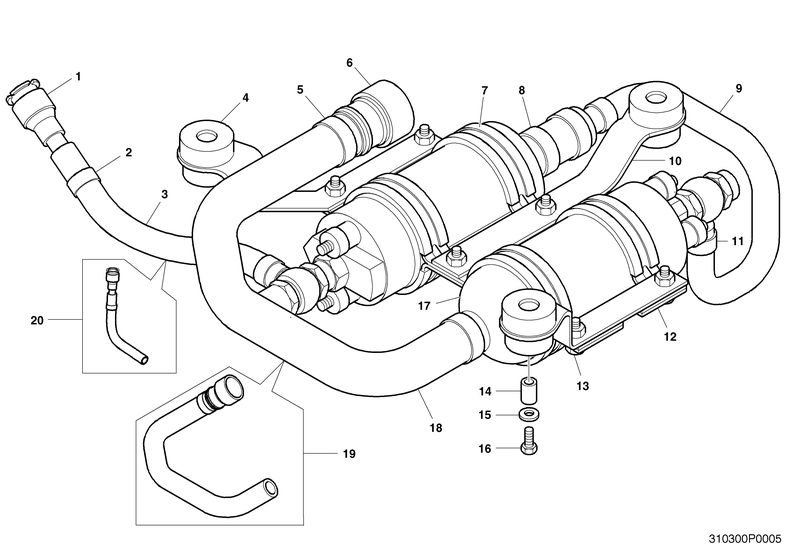

Visos Bentley Arnage Green Label dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 10 | ASSY BRACKET MOUNTING UPPER FUEL PUMPS PF55745PB | – | – | Ieškoti |
| 17 | ASSY FUEL PUMP & FITTINGS PF27287PB | – | – | Ieškoti |
| 19 | ASSY HOSE FUEL TANK TO PUMP V12 & 4.4 V8 PF55260PA | – | – | Ieškoti |
| 20 | ASSY HOSE PUMP TO CLUSTER 4.4 V8 PF56451PB | – | – | Ieškoti |
| 9 | ASSY HOSE PUMP TO PUMP PF26997PB | – | – | Ieškoti |
| 12 | BRACKET MOUNTING FUEL PUMPS LOWER PF55744PB | – | – | Ieškoti |
| 2 | CLIP HOSE 12.5/14.0 MM PF29233PA | – | – | Ieškoti |
| 11 | CLIP HOSE 13.5/15.0 MM PF29234PA | – | – | Ieškoti |
| 8 | CLIP HOSE 20.5/22.0 MM PF29241PA | – | – | Ieškoti |
| 5 | CLIP HOSE 21.5/23.0 MM PF29242PA | – | – | Ieškoti |
| 18 | HOSE FUEL PUMP TO QUICK CONNECTOR PF55820PA | – | – | Ieškoti |
| 3 | HOSE PUMP TO CLUSTER 4.4 V8 PF55258PB | – | – | Ieškoti |
| 7 | ISOLATING SLEEVE PF31746PA | – | – | Ieškoti |
| 1 | QUICK CONNECTOR (HURON 88MM) PF56568PA | – | – | Ieškoti |
| 6 | QUICK CONNECTOR (RAYMOND) PF55818PA | – | – | Ieškoti |
| 4 | RUBBER MOUNT PC21090PA | – | – | Ieškoti |
| 13 | SCREW FLANGE HEAD M5 X 16MM LONG PF32409PA | – | – | Ieškoti |
| 16 | SETSCREW M6 X 30MM LONG UM21439Z | – | – | Ieškoti |
| 14 | SPACER RUBBER MOUNT FUEL PUMP PF57205PA | – | – | Ieškoti |
| 15 | WASHER PC21093PA | – | – | Ieškoti |
