Bentley Arnage Blue Train shell panels, front – schema ir OEM kodai

Body Shell Excl Closing Panels · 33 pozicijos · 0 skelbimų

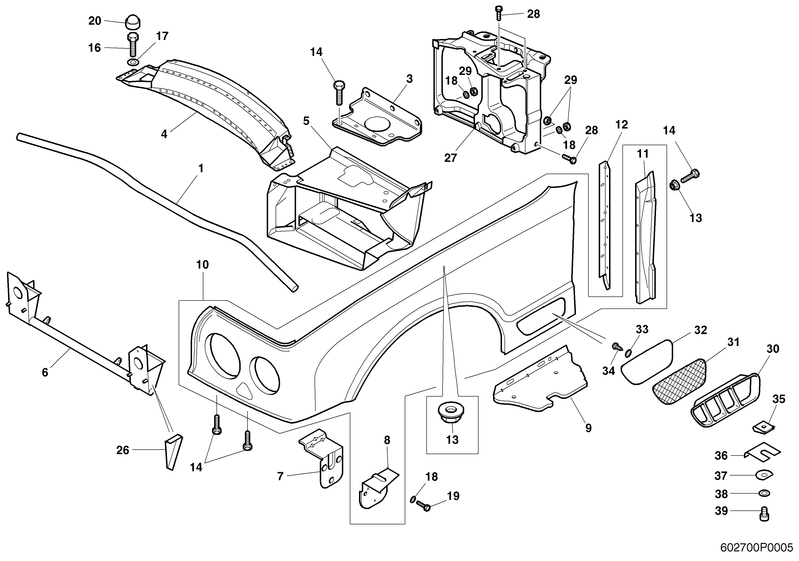

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
16	6 POINT FLANGE SCREW M8 X 20 N10155901	–	–	Ieškoti
8	ASSY BRACKET BUMPER MOUNTING LH PN23279PB	–	–	Ieškoti
8	ASSY BRACKET BUMPER MOUNTING RH PN23278PB	–	–	Ieškoti
7	ASSY BRACKET MOUNTING BUMPER SLIDE LH PN108679PA	–	–	Ieškoti
7	ASSY BRACKET MOUNTING BUMPER SLIDE RH PN108678PA	–	–	Ieškoti
4	ASSY CROSSMEMBER BONNET PN111410PA	–	–	Ieškoti
6	ASSY CROSSMEMBER FRONT LOWER PN106764PA	–	–	Ieškoti
10	ASSY FRONT WING WITH VENT LH JNV821021	–	–	Ieškoti
10	ASSY FRONT WING WITH VENT RH JNV821022	–	–	Ieškoti
27	ASSY HEADLAMP CASTING LH PN111413PC	–	–	Ieškoti
27	ASSY HEADLAMP CASTING RH PN111414PC	–	–	Ieškoti
5	ASSY HEADLAMP CRADLE LH PN111481PD	–	–	Ieškoti
5	ASSY HEADLAMP CRADLE RH PN111480PD	–	–	Ieškoti
9	ASSY SUPPORT FRONT WING LOWER LH PN23551PE	–	–	Ieškoti
9	ASSY SUPPORT FRONT WING LOWER RH PN23550PE	–	–	Ieškoti
32	BLACK INSERT WING VENT PN112797PA	–	–	Ieškoti
3	BRACKET MOUNTING BONNET LOCK LH PN24487PF	–	–	Ieškoti
3	BRACKET MOUNTING BONNET LOCK RH PN24488PF	–	–	Ieškoti
20	CAP PROTECTION M8 BOLT SIZE PP32743PB	–	–	Ieškoti
35	CAPTIVE NUT SPC3751	–	–	Ieškoti
31	MESH WING VENT PN112796PA	–	–	Ieškoti
29	NUT HEX WITH FLANGE M6 N0230028	–	–	Ieškoti
13	NUT WHIZTITE M6 PB25054PA	–	–	Ieškoti
36	PACKER ANTI ROTATION WING VENT PS59439PA	–	–	Ieškoti
12	PANEL A POST FRONT WING LH PN21071PD	–	–	Ieškoti
12	PANEL A POST FRONT WING RH PN21072PD	–	–	Ieškoti
11	PANEL CLOSING A POST FRONT WING LH PN112137PC	–	–	Ieškoti
11	PANEL CLOSING A POST FRONT WING RH PN112138PC	–	–	Ieškoti
34	SCREW FLANGE HEAD NO.4 X .500 IN. LONG UA7103Z	–	–	Ieškoti
39	SCREW HEX HEAD NO.8 x .500 IN. LONG UA7822Z	–	–	Ieškoti
19	SETSCREW M6 X 12MM LONG UM21434ZP	–	–	Ieškoti
28	SETSCREW M6 X 16MM LONG PZ108578PA	–	–	Ieškoti
15	SETSCREW M6 X 16MM LONG UM21436ZP	–	–	Ieškoti
14	TORX BOLT WITH WASHER PP25736PA	–	–	Ieškoti
26	TUBE LOWER SUPPORT CROSSMEMBER OUTER LH PN56299PB	–	–	Ieškoti
26	TUBE LOWER SUPPORT CROSSMEMBER OUTER RH PN56298PB	–	–	Ieškoti
1	TUBE UPPER CROSSMEMBER PN111436PB	–	–	Ieškoti
37	WASHER SPC3046	–	–	Ieškoti
33	WASHER PLAIN 5BA X4401Z	–	–	Ieškoti
38	WASHER PLAIN M4 UM20203Z	–	–	Ieškoti
18	WASHER PLAIN M6 UM22706ZP	–	–	Ieškoti
17	WASHER THICK .3175 IN. I.D. UA6103ZP	–	–	Ieškoti
30	WING VENT VERTICAL LH PN112795PA	–	–	Ieškoti
30	WING VENT VERTICAL RH PN112794PA	–	–	Ieškoti
